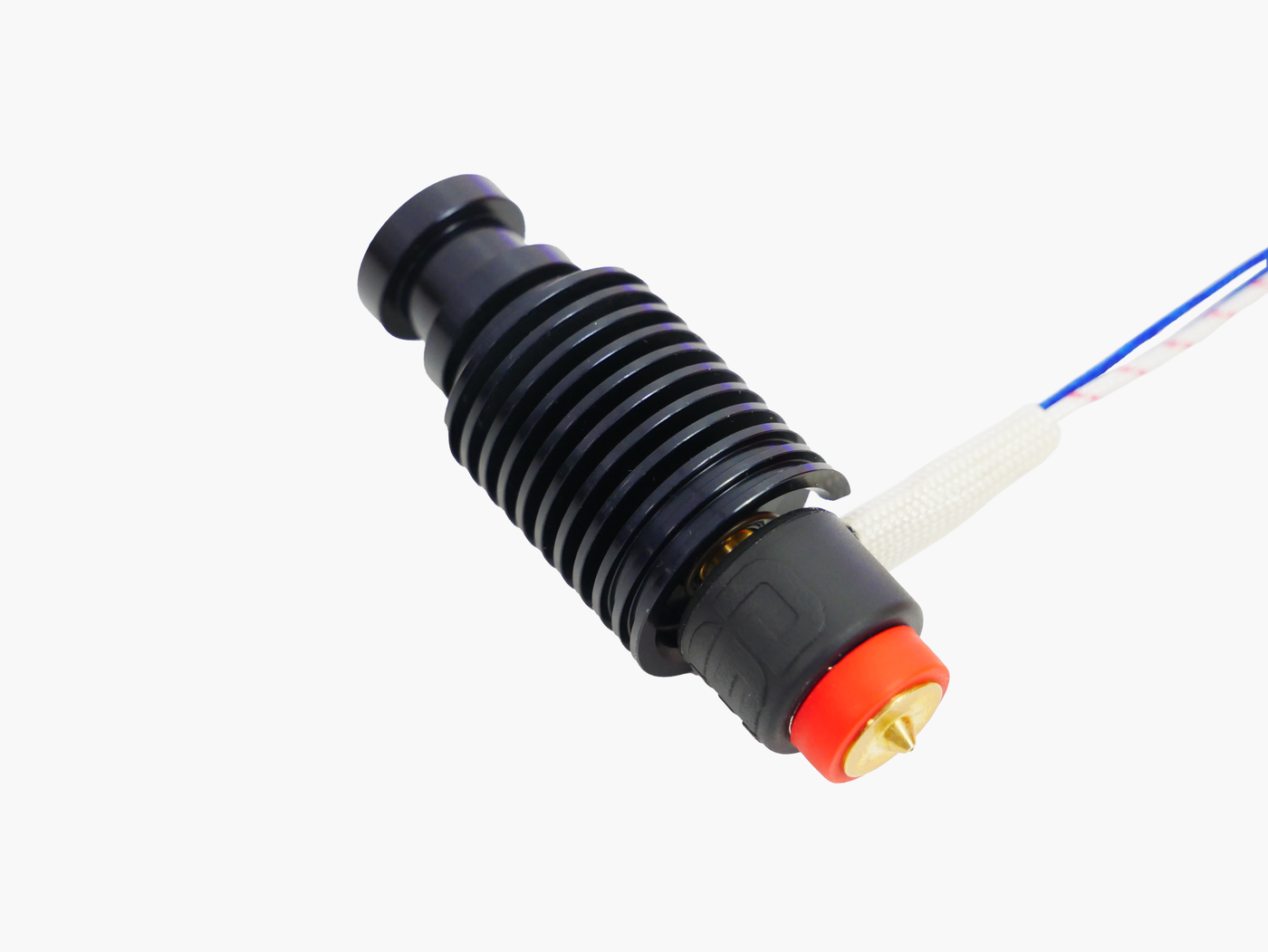

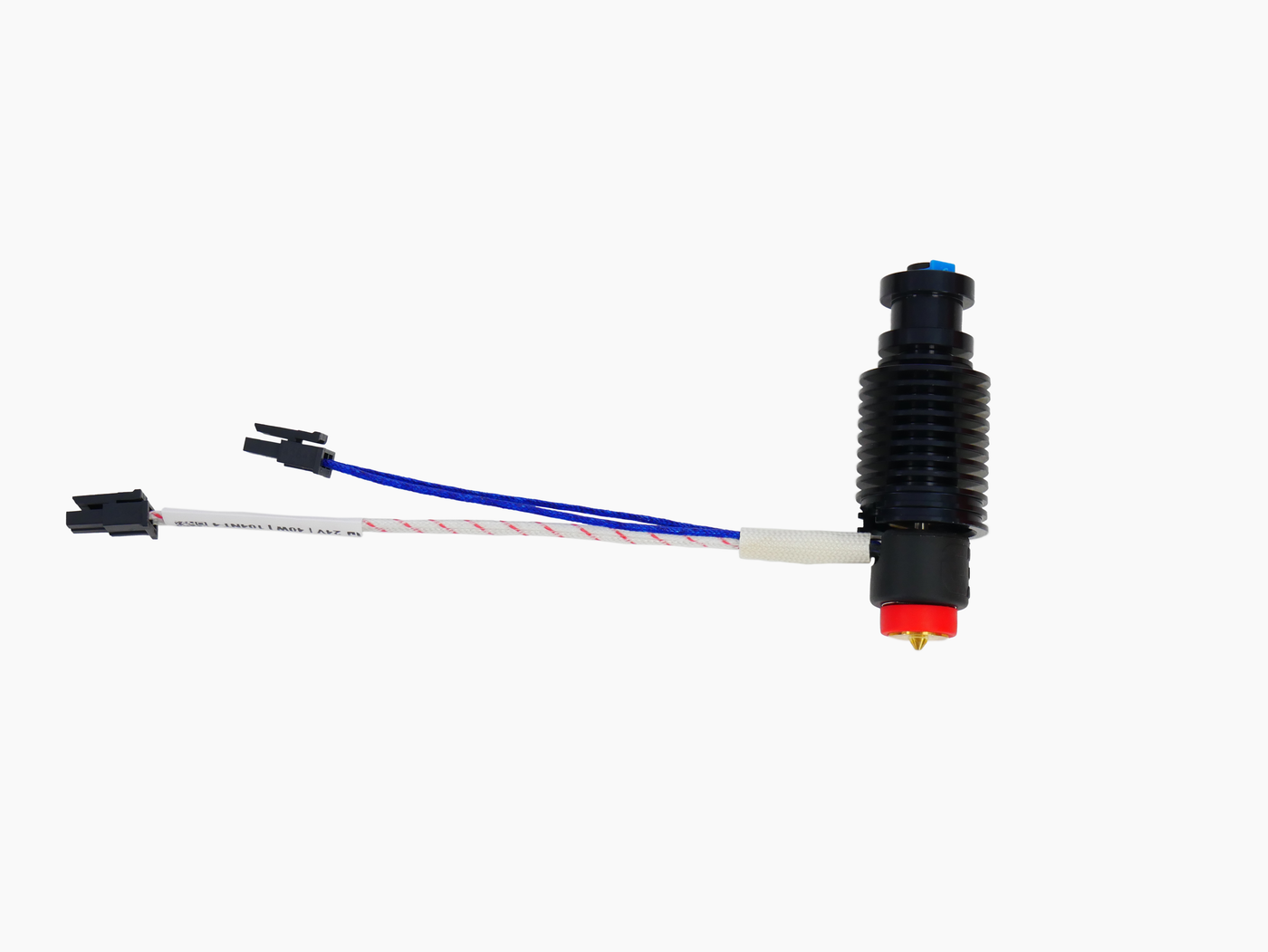

Revo Six is a drop-in replacement for your E3D V6 HotEnd, giving you all the benefits of E3D’s RapidChange Revo ecosystem in an easy-to-upgrade package. Compatible with Prusa MK2/3 (Check voltage before ordering)



Single nozzle kit:

  •   1 x 0.40mm Brass Revo™ Nozzle

Fully loaded nozzle kit:

  • 1 x 0.25, 0.40, 0.60 & 0.80 Brass Revo Nozzles

Summary
Max Printing Temperature: 300°C
Mass: ~53g
Temperature sensor type: thermistor, Semitec 104NT-4-R025H42G
Voltage options: 12V or 24V
Wattage: 40W
Filament diameter: 1.75mm

Volume and Dimensions

Dimensions.svg

Power vs Temperature

test__1_.svg

Initial Resistance of a 24V heater at 23°C: 14.4Ω
Temp Coefficient of HeaterCore: 0.002078
Temp Coefficient of Heater Cartridge: 0.002078



Mounting Guidance
Mounting type: E3D Groove Mount

Mounting_Guidance.svg

Cable Orientation
Turn Revo HeaterCore anti-clockwise to orient cables. Turning clockwise will cause the
spring to disengage.



Assembly
There is no need to hot-tighten the Revo Six assembly. Tools must not be used to fasten
the Revo Nozzle to the HeaterCore.



Operational Temperatures
Maximum recommended ambient operating temperature (PLA): 40°C

Lowest temperature rated component: Fan 70°C



Electrical Specification
Fan
12V or 24V
Fan current: 0.1A (12V) and 0.08A (24V)

Heater
12V or 24V, 40W nominal power at ambient
Fan noise: 30 dB(A)

Temperature
Temperature sensor: Semitec 104NT-4-R025H42G



Connections
Fan: Molex SL, 2 Pin, Unpolarised
Heater: Molex Micro-Fit 3.0, 2 pin horizontal
Temperature sensor: Molex Micro-Fit 3.0, 2 pin horizontal

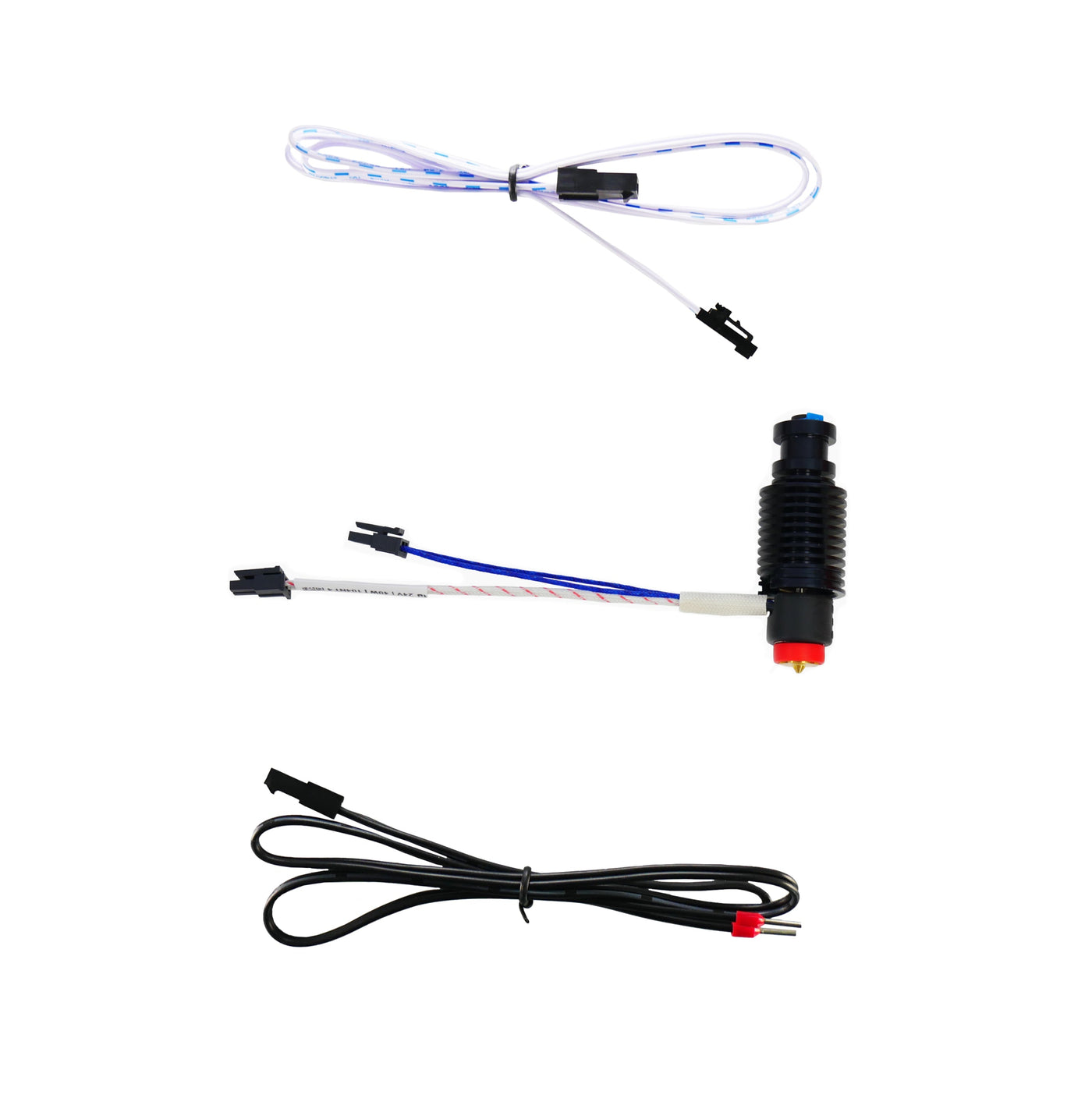

Assembly is supplied with 1m cables to connect to mainboard



Materials
Heatsink: Aluminium (black anodised)
HeaterCore: Alumina, Bronze
Fan Shroud: Polycarbonate



Compliance
Reach
RoHS
WEEE



Exploded View

Exploded_view.svg


1. 4x Self-Tapping Screws                                           7. Revo spring
2. 3010 fan                                                                   8. Revo HeaterCore
3. Fan duct                                                                   9. Revo HeaterCore sock
4. Collet clip                                                                10. Revo Nozzle
5. Collet                                                                       11. Revo Nozzle sock
6. Heatsink



Sku: REVO-SIX-175-24V-PRUSA-AS
Vendor: E3D
