Top Applications for Formlabs Rigid 10K Resin

When a 3D printed part needs to be extremely stiff, dimensionally stable, and resistant to heat and chemicals, standard resins may not be enough. This is where Formlabs Rigid 10K Resin stands out.

Designed for demanding engineering and manufacturing applications, Rigid 10K Resin is a highly glass-filled material that combines high stiffness with excellent dimensional stability and resistance to heat and chemicals. Formlabs lists applications including rapid tooling, functional prototypes, and end-use parts.

For users printing with the Form 4, the 1 L cartridge provides a convenient way to produce high-performance parts for demanding applications.

What Makes Rigid 10K Resin Different?

Rigid 10K Resin is engineered for applications where stiffness and stability are more important than flexibility.

According to Formlabs, the material has a tensile modulus of 11 GPa and a flexural modulus of 9.9 GPa. It also offers high resistance to heat and chemicals.

The result is a material well suited to industrial prototypes, tooling, molds, fixtures, and other applications where a printed component needs to maintain its shape under demanding conditions.

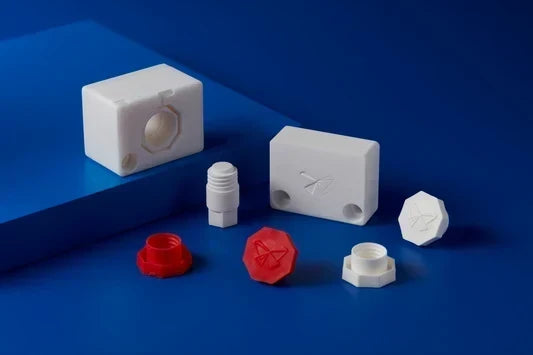

1. Short-Run Injection Molds and Inserts

One of the most important applications for Rigid 10K Resin is rapid tooling for injection molding.

Instead of machining a mold from metal, manufacturers can 3D print mold masters and inserts directly. This can significantly shorten development cycles and make it easier to iterate on mold designs.

Rigid 10K is particularly useful when a mold needs:

• High stiffness
• Dimensional accuracy
• Resistance to injection pressure
• Temperature resistance
• Fine details

Formlabs specifically recommends Rigid 10K for injection-molding masters and inserts.

This makes it particularly useful for short production runs and prototype validation.

2. Jigs and Fixtures

Manufacturing jigs and fixtures need to remain stable and accurately positioned during production.

Rigid 10K Resin's high stiffness makes it suitable for applications such as:

• Welding fixtures
• Machining fixtures
• Assembly jigs
• Alignment fixtures
• Inspection fixtures

Formlabs recommends Rigid 10K for jigs and fixtures where rigidity, precision, and resistance to thermal and chemical exposure are important.

For manufacturers, 3D printing these tools can provide a faster alternative to traditional CNC tooling.

3. Thermoforming Molds

Rigid 10K can also be used for thermoforming tooling.

Its combination of stiffness and temperature resistance makes it useful for producing detailed tooling for prototype and short-run applications.

This can help manufacturers quickly test:

• Product shapes
• Packaging designs
• Forming processes
• Mold geometry

Instead of waiting for traditionally machined tooling, teams can iterate on designs much faster.

4. Aerodynamic Test Models

Rigid 10K Resin is also recommended for aerodynamic test models.

For aerodynamic testing, maintaining the intended geometry is critical. A material that flexes too easily can introduce unwanted deformation and affect testing.

Rigid 10K's high stiffness helps printed models maintain their shape during testing. Formlabs specifically identifies stiff and strong aerodynamic test models as a recommended application.

Potential applications include:

• Automotive aerodynamic models
• Aerospace prototypes
• Wind-tunnel models
• Fluid-flow testing

5. Heat-Resistant Components

Some prototypes and components need to operate in environments where ordinary resins may deform.

Rigid 10K offers significantly higher thermal performance than many general-purpose materials. Formlabs lists a heat deflection temperature of 92°C at 1.8 MPa and 238°C at 0.45 MPa for the material specification.

This makes it useful for certain:

• Heat-exposed prototypes
• Fixtures
• Housings
• Mounts
• Testing components

The appropriate post-curing process is important because Rigid 10K requires post-curing to achieve its intended mechanical and thermal performance.

6. Fluid-Flow Components

Rigid 10K can also be useful for components exposed to fluids or used to evaluate fluid-flow designs.

Its stiffness and resistance to chemicals make it suitable for certain:

• Fluid-flow prototypes
• Channels
• Manifolds
• Testing components
• Engineering prototypes

Formlabs specifically recommends Rigid 10K for air and fluid-flow components.

7. Functional Engineering Prototypes

Rigid 10K isn't limited to tooling.

It can also be used to create functional prototypes that need high stiffness, dimensional accuracy, and resistance to demanding environments.

Examples include:

• Mechanical housings
• Structural components
• Mounting brackets
• Product-development prototypes
• Engineering test parts

SLA printing also provides high resolution and accurate details, making it useful when prototype geometry needs to closely match the original CAD design.

8. End-Use Industrial Parts

For selected applications, Rigid 10K can also be used for end-use components.

The material is particularly appropriate when a finished part requires:

• High stiffness
• Dimensional stability
• Heat resistance
• Chemical resistance
• Fine surface detail

Formlabs lists Rigid 10K among its materials suitable for end-use applications.

However, material selection should always be based on the specific operating environment and required mechanical properties.

Rigid 10K Resin: Best Applications at a Glance

When Should You Choose Rigid 10K Resin?

Rigid 10K is a strong choice when your application requires rigidity, precision, and resistance to demanding conditions.

It is especially worth considering when you're producing:

• Industrial prototypes
• Manufacturing tooling
• Molds and inserts
• Jigs and fixtures
• Aerodynamic models
• Heat- or fluid-exposed components

However, it is not designed for parts that need to flex or bend. Formlabs specifically recommends against using Rigid 10K for applications requiring flexibility.

Why Use Rigid 10K on the Form 4?

For Form 4 users, Rigid 10K provides access to an engineering-grade material within Formlabs' SLA ecosystem. The material is available for the Form 4 in a 1 L cartridge, making it practical for producing multiple prototypes or tooling components.

For businesses that need to move quickly from CAD to physical parts, this combination can help reduce the time between design iterations and functional testing.

Final Thoughts

Formlabs Rigid 10K Resin is designed for applications where ordinary 3D printing materials may not provide enough stiffness or environmental resistance.

From injection-molding inserts and manufacturing fixtures to aerodynamic models and functional engineering prototypes, its combination of high stiffness, heat resistance, chemical resistance, and dimensional stability makes it a valuable material for demanding applications.

If you're using a Form 4 and need a resin for serious engineering and manufacturing applications, Rigid 10K is worth considering.
