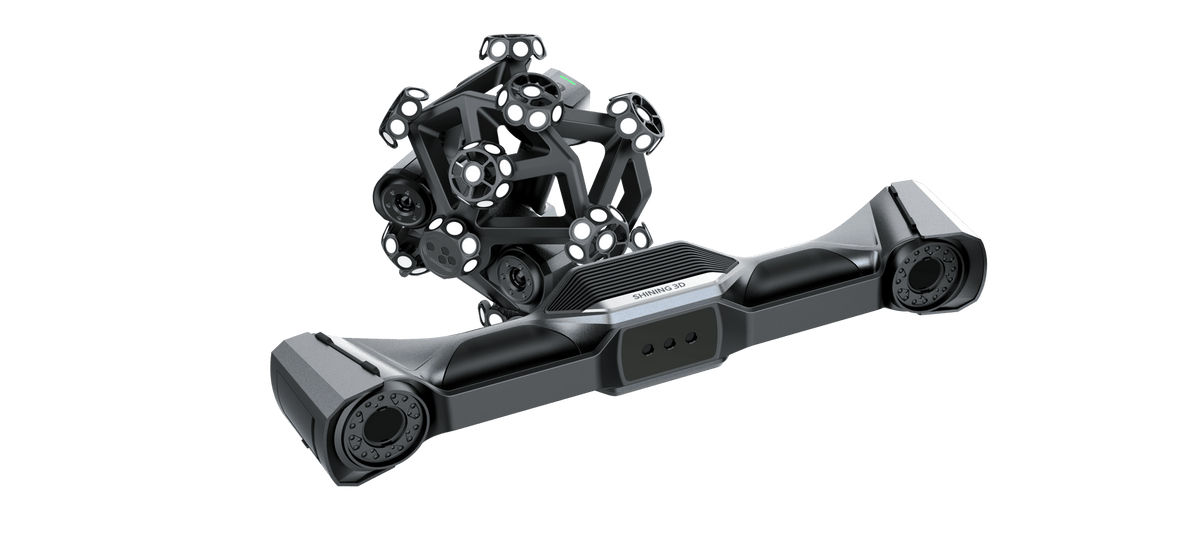

Small in Form, Big on Performance
From construction machinery to rail transit, civil aviation to energy, FreeScan Trak Nova Series is built to meet the diverse needs of industries requiring accurate and efficient large-scale measurements with extreme portability, productivity and versatility.
All-In-One Scanning System
Detachable Handheld Scanner
Dynamic Tracking
Integrated Video Photogrammetry
Completely Wireless
Effortlessly Portable
Dynamic Tracking Scan: Compact and Agile
Real-time dynamic tracking enables fast, flexible, and marker-free 3D scanning. Combined with its wireless, compact design, the system excels at capturing fine details in confined spaces while delivering efficient and precise measurements.

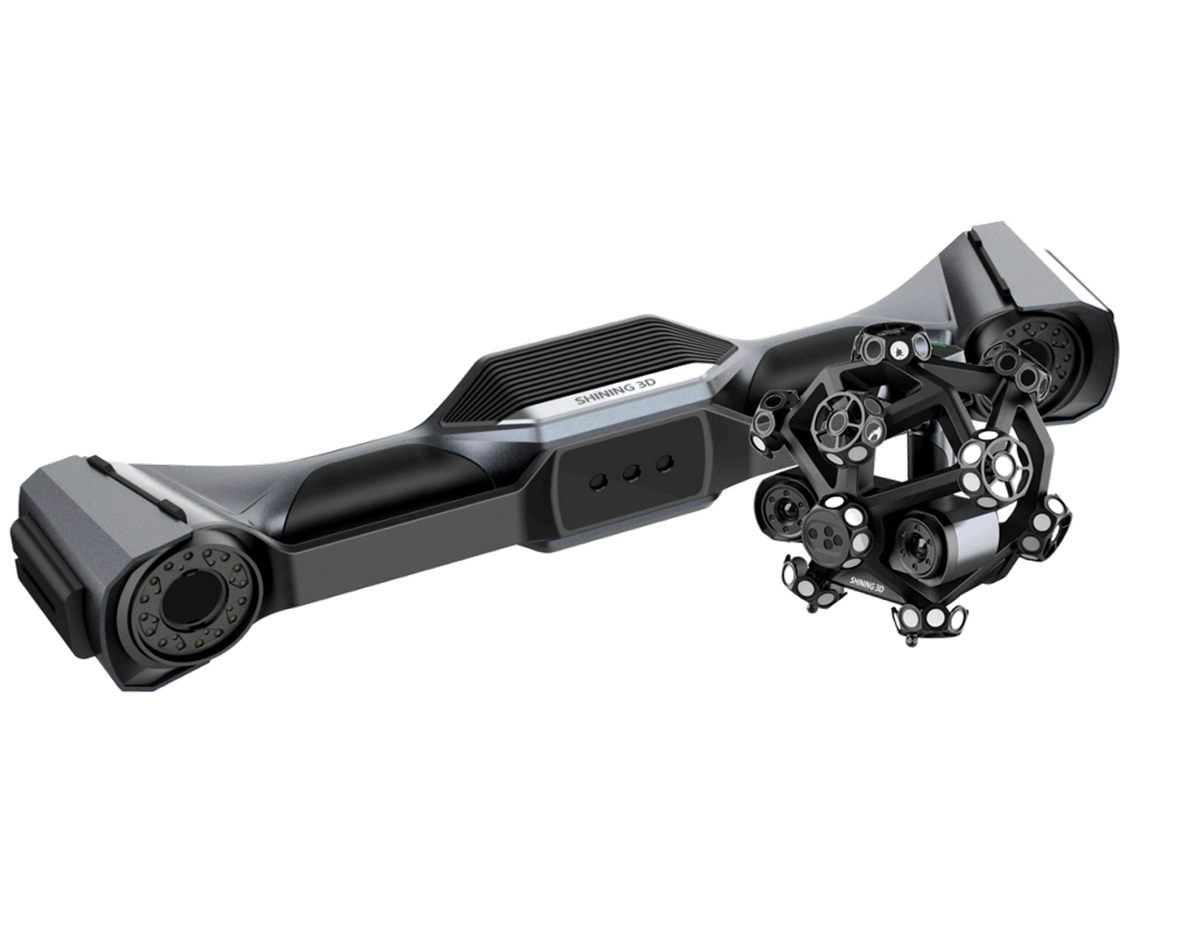

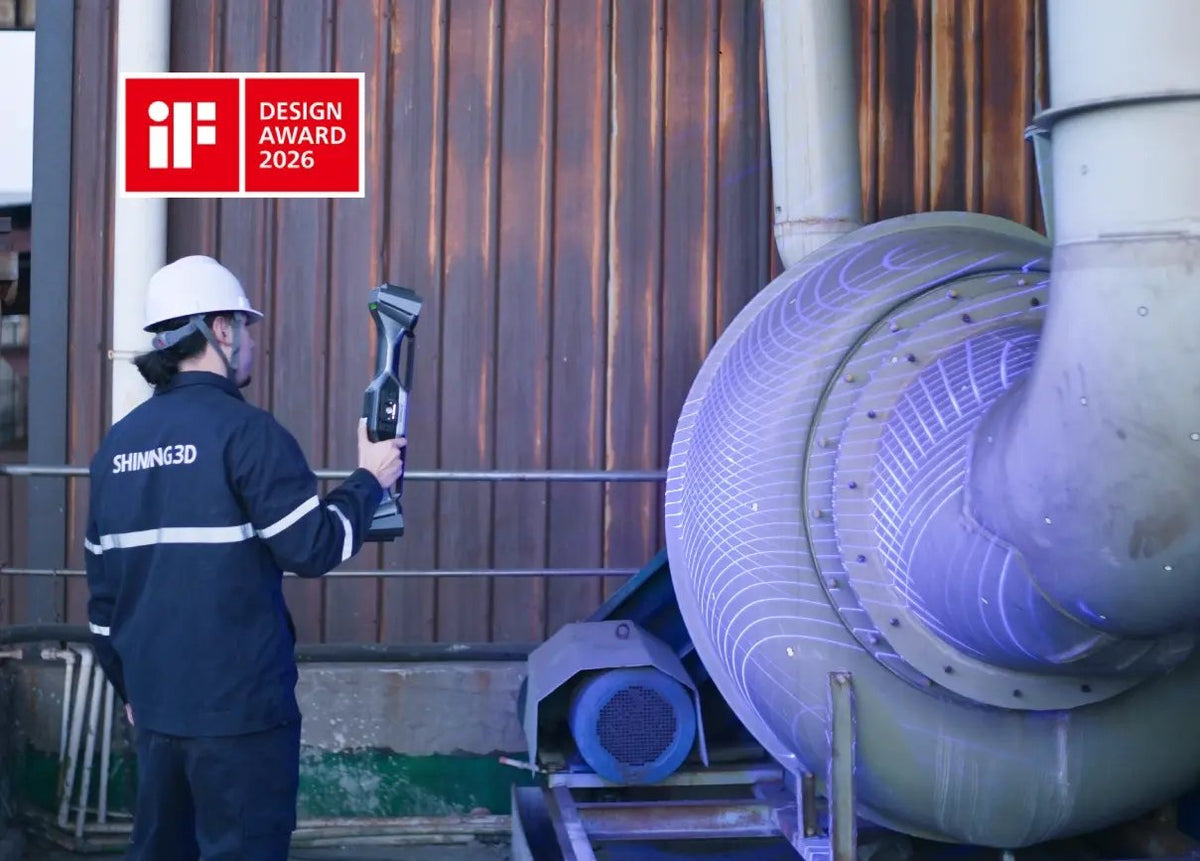

Flexible & Separable System
FreeScan Trak Nova was recognized with the iF Design Award 2026 for its innovative product design. It includes a detachable handheld scanner. The tracker also serves as a handheld laser scanner with the largest FOV on the market, delivering unparalleled efficiency and flexibility.
-

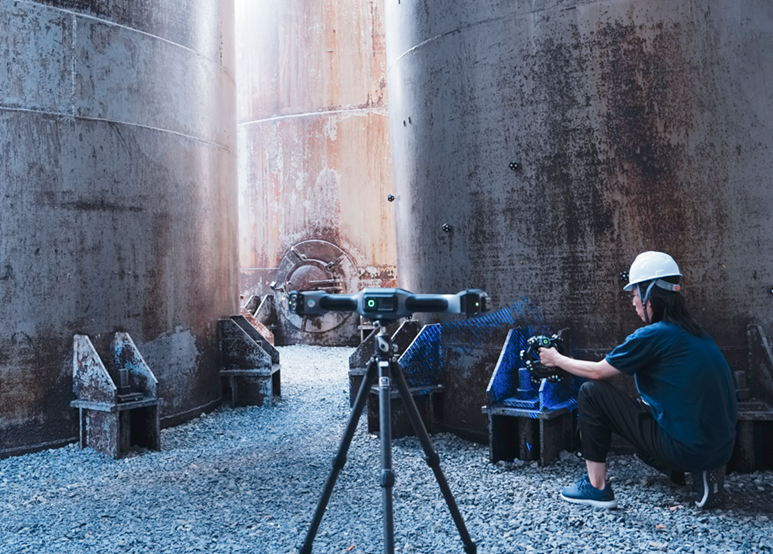

Large-scale scanning coverage with 2.6 × 2.2 m FOV
-
Ultra fast scan speed
-
Verified in our ISO 17025 accredited Accuracy Lab according to VDI/VDE 2634 Part 3 and ISO 10360 standards.
Video Photogrammetry (VPG)
FreeScan Trak Nova Series features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
-1.jpg?width=2000&name=Video%20Photogrammetry%20(VPG)-1.jpg)
Engineered to Boost Productivity
FreeScan Trak Nova+ achieves scanning speeds of up to 7,600,000 points/s, enabling rapid acquisition of high-quality 3D data while maintaining fine detail.
Free to Scan, Built to Perform
Integrated wireless modules: Achieve greater freedom when scanning large objects or in tight spaces, without the limitations of cables or external devices. This seamless integration allows for real-time transmission of scan data, ensuring high frame rates and stable data transfer.
Built-in computing modules: With advanced computing modules, both the tracking scanner and wide-range scanner ensure rapid and efficient processing.
Easy to Carry, Light to Move
Everything you need is neatly packed in one portable case, with a lightweight carbon fiber structure that ensures stability and reliable performance in any environment.
- TE Nova Series: 1.2 kg
- UE Nova Series: 1.6 kg

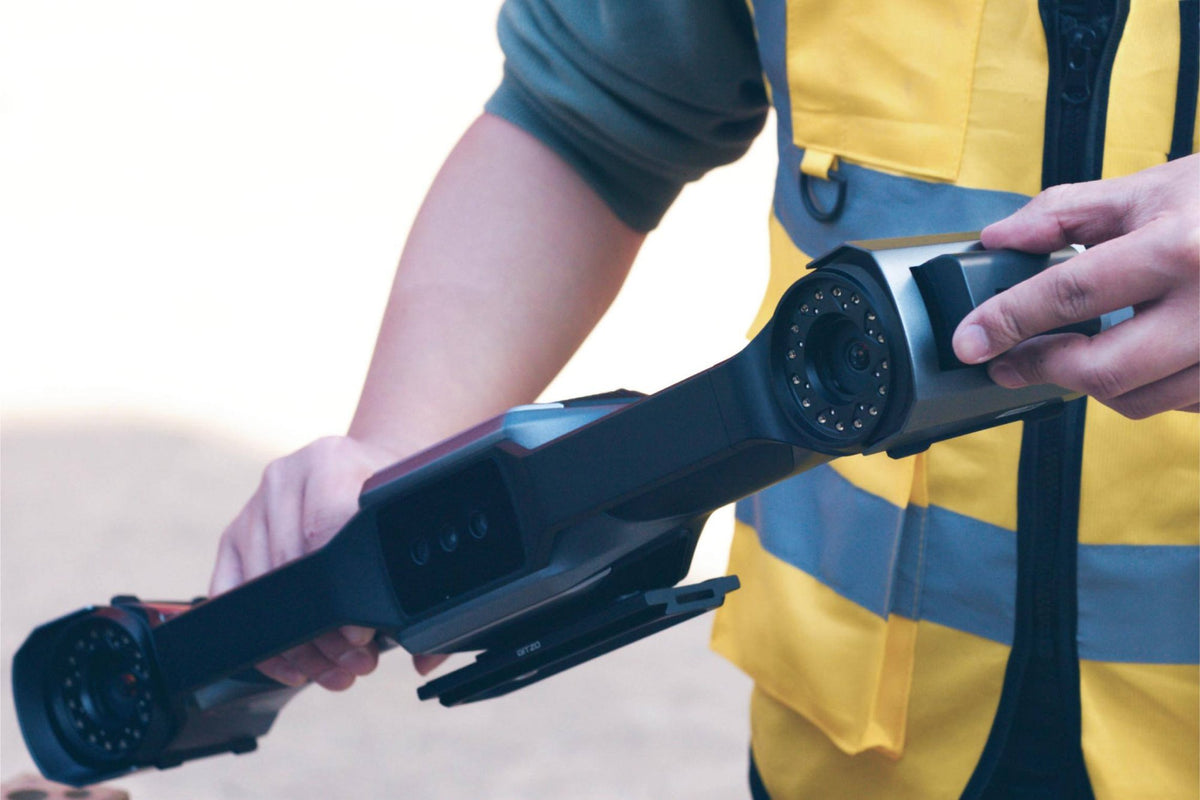

Keep Going with Swappable Batteries
For maximum convenience, FreeScan Trak Nova Series features detachable batteries for extended scanning time. Easily swap out batteries to keep your workflow uninterrupted, even during long projects or in remote locations.
Mobile Workstation
A dedicated all-in-one mobile workstation for FreeScan Trak Nova Series, integrating a high-performance computer and built-in power supply for flexible, cable-free 3D scanning and inspection on site.
FreeProbe 2
Designed for fast, shop-floor measurements and inspections, FreeProbe 2 captures precise geometric data without generating mesh. It is ideal for hidden areas that scanners cannot reach, ensuring data acquisition with pinpoint accuracy.
Metrology Pro Kit
Ideal for 3D dynamic tracking and scanning systems, Metrology Pro Kit supports stable and precise tracking with different leapfrog marker options for scanning large and complex objects.
Our Support Coverage
At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
FreeScan Trak Software
Advanced Software for Seamless 3D Measurement
Multi-Scan Modes Data Fusion
The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.
Intelligent Resolution
Automatically adjusts mesh resolution based on the object's curvature, ensuring clearer and more detailed features.
AI Feature Recognition
Intelligent boundary detection provides fast, precise measurement of round holes, rectangular holes, and slots, ensuring high-quality and high-accuracy data capture.
SHINING3D Inspect
Delivers a streamlined, modular, and customizable approach to 3D inspection, simplifying workflows from data acquisition to reporting.
Compatible Software
Technical Data
| Specification | Details |
|---|---|
| High-speed scan | Included (62/50 laser lines) |
| Detailed scan | Included (25/7 parallel laser lines) |
| Deep pockets scan | Included (1 laser line) |
| VPG | Included (no coded markers required) |
| Accuracy | 0.02 mm |
| Volumetric accuracy | 0.062 mm (12 m³) |
| Volumetric extension accuracy with VPG | 0.046 + 0.012 mm/m |
| Scan Speed | 7,600,000 points/s |
| Resolution | 0.01 ~ 10 mm |
| Flexible FOV | Up to 2600 × 2200 mm |
| Connection | Wireless & Wired mode (Fiber optic) |
| Net weight | TE Nova Series 1.2 kgUE Nova Series 1.6 kg |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Acceptance test | VDI/VDE 2634 Part 3 & ISO 10360 Certified (Tested in the ISO/IEC 17025 Accredited Accuracy Lab) |
