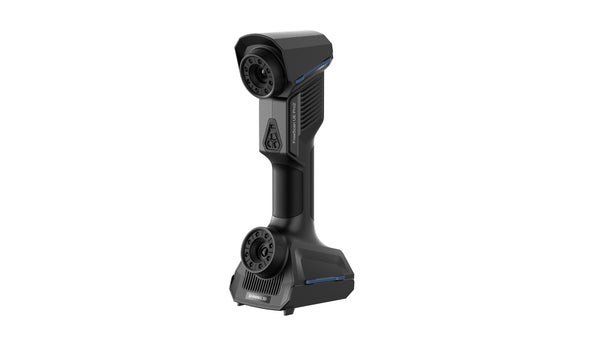

FreeScan UE Pro2, with its integrated wireless module, enables seamless data transmission without cables. Weighing just 950g, it's ideal for on-site fieldwork and harsh environments, allowing effortless 3D data capture anywhere.
Votre panier est vide
Il semble que vous n'ayez encore rien ajouté à votre panier
Inspect on the Move
Ideal for inspections and versatile applications, the FreeScan UE Pro2 sets a new standard in the portable 3D metrology world.
Wireless and Portable
Ultra-Fast Scan Speed
With a rapid scan speed of up to 3,460,000 points/s, the FreeScan UE Pro2 doubles scanning efficiency compared to the previous generation.
Video Photogrammetry (VPG)
FreeScan UE Pro2 features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers.
Quick On-Site Inspection
FreeScan UE Pro2's integrated inspection module ensures rigorous quality control. It enables simplified operations and enhances fast quality checks on-site.
Double the Speed, Double the Productivity
With a scan speed up to 3,460,000 points/s, tasks are completed smoothly, enhancing productivity in inspection applications.
- Embedded Computing Module: Accelerates data capture and processing, reducing overall scanning time and computer workload.
- 50 Laser Lines: Ensures faster and more comprehensive scanning.
-
High Frame Rate: Achieves up to 180fps for smooth and rapid data acquisition.
Video Photogrammetry (VPG)
FreeScan UE Pro2 features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers.
This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
Certified and Guaranteed Results
With a volumetric accuracy of up to 0.02 mm + 0.015 mm/m using photogrammetry, the FreeScan UE Pro2 delivers consistent and reliable global accuracy and scanning results.
SHINING 3D's Accuracy Laboratory, accredited by CNAS in accordance with ISO 17025, ensures rigorous calibration of optical metrology. In accordance with VDI/VDE 2634 and ISO 10360 guidelines, the laboratory guarantees the traceability of measurement processes and calibration results.

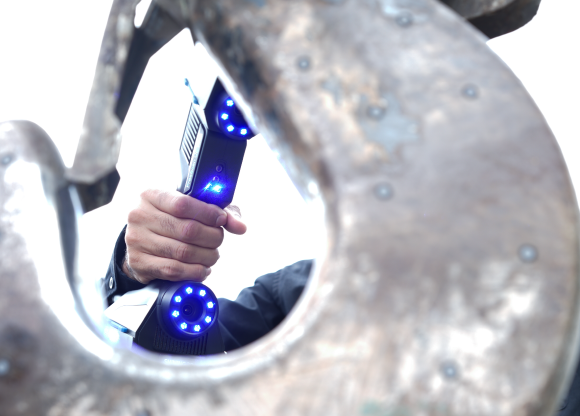

Scan Indoors and Outdoors
The FreeScan UE Pro2 excels in both indoor and outdoor environments, making it versatile for any work setting.

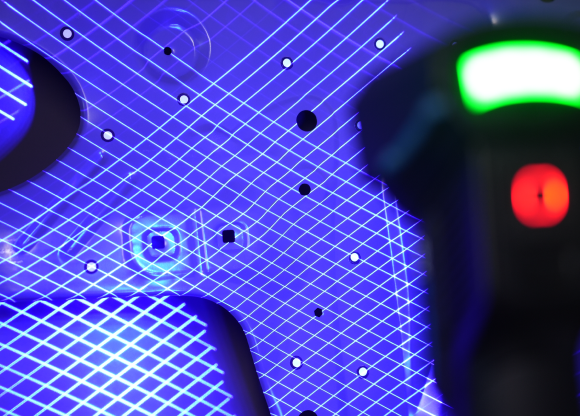

3 Functions for Versatile Applications
- High-speed scanning: 50 laser lines
- Detail scanning: 7 parallel laser lines
- Deep hole scanning: 1 laser line

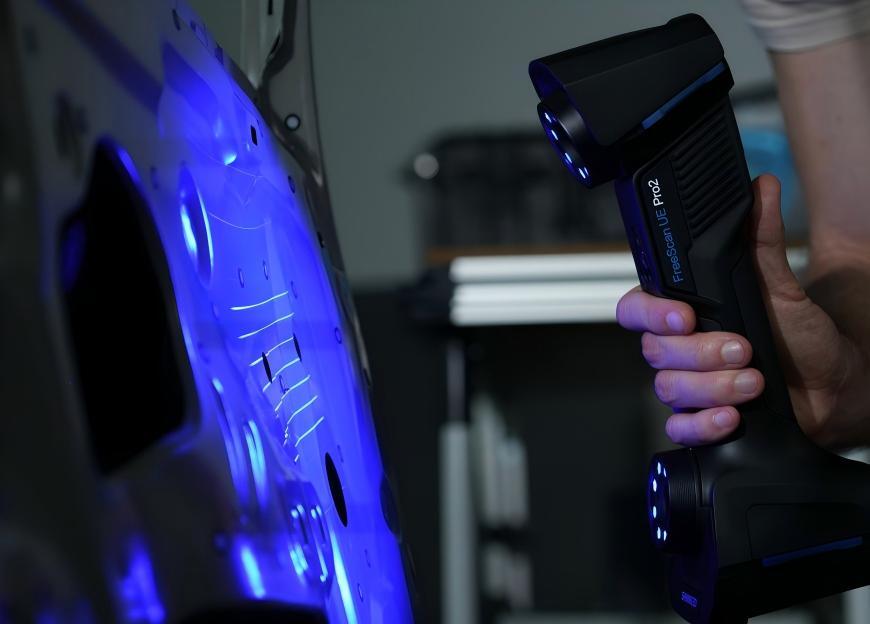

.jpg?width=870&height=624&name=car%20door%20panel%20(2).jpg)
Metrology Kit
Magnetic marker balls for fast setup and easy positioning, Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.
Our Support Coverage
At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
FreeScan Software
Intuitive & Powerful
AI Feature Recognition
Intelligent boundary detection provides fast, precise measurement of round holes, rectangular holes, and slots, ensuring high-quality and high-accuracy data capture.
Real-Time Display of Mesh Data
Our streamlined software displays mesh data in real time during the scanning process, enhancing visual quality and saving time on meshing later.
Customized Scanning Template
Save time and ensure consistency by setting up your own scanning template. No need to set parameters manually.
Data Quality Visualization
Users can monitor scanning distance through laser line color or the LED indicator, and assess data quality with the real-time mesh indicator.
Compatible Software
Technical Data
| Specification | Details |
|---|---|
| High-speed Scanning | 50 laser lines |
| Detailed Scan | 7 parallel laser lines |
| Deep Pockets | 1 single line |
| Accuracy | 0.02 mm |
| Volumetric Accuracy (Photogrammetry) | 0.02 mm + 0.015 mm/m |
| Max. FOV | 600 x 550 mm |
| Scan Speed | 3,460,000 points/s |
| Point Distance | 0.01 ~ 10 mm |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX |
| Accuracy Certification | VDI/VDE 2634 Part 3 & ISO 10360 Certified (Tested in the ISO/IEC 17025 Accredited Accuracy Lab) |
