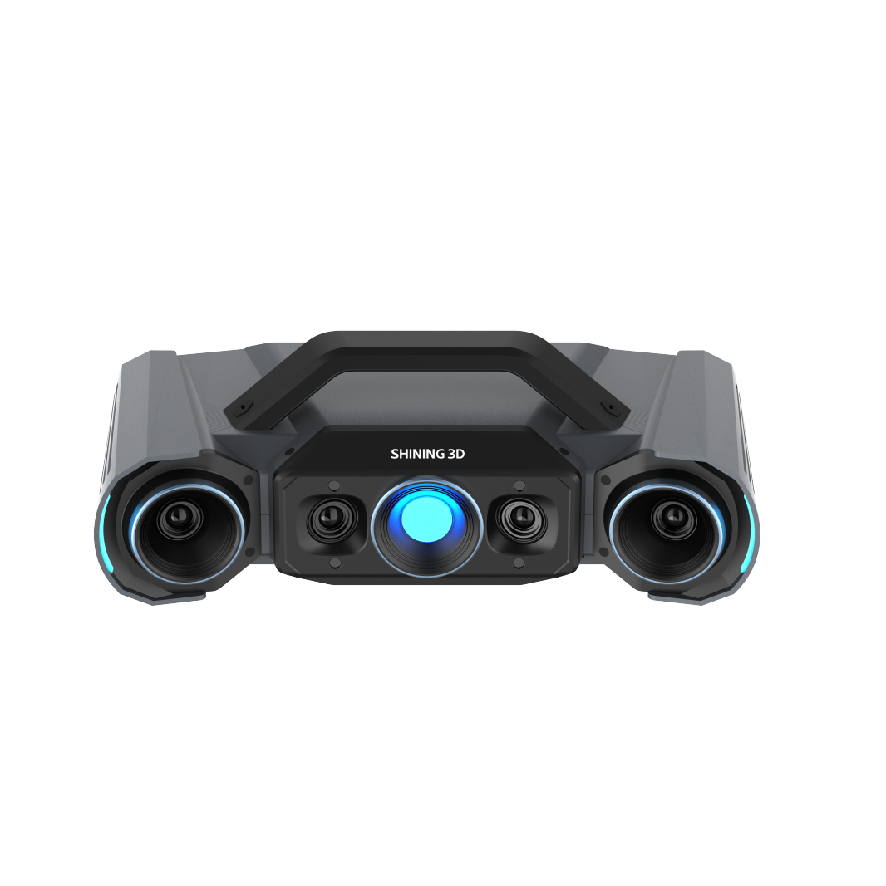

OptimScan Q12/Q9 features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length.
Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.
Powered by a built-in dual-chip computing module, OptimScan Q12/Q9 delivers rapid image acquisition and efficient data processing. Each shot takes less than 1 second, capturing a dense set of high-resolution data points with exceptional precision.
To further streamline the workflow, the systems support multiple exposure modes—including intelligent automatic exposure—significantly reducing scanning time while ensuring optimal results across a wide range of surface conditions.

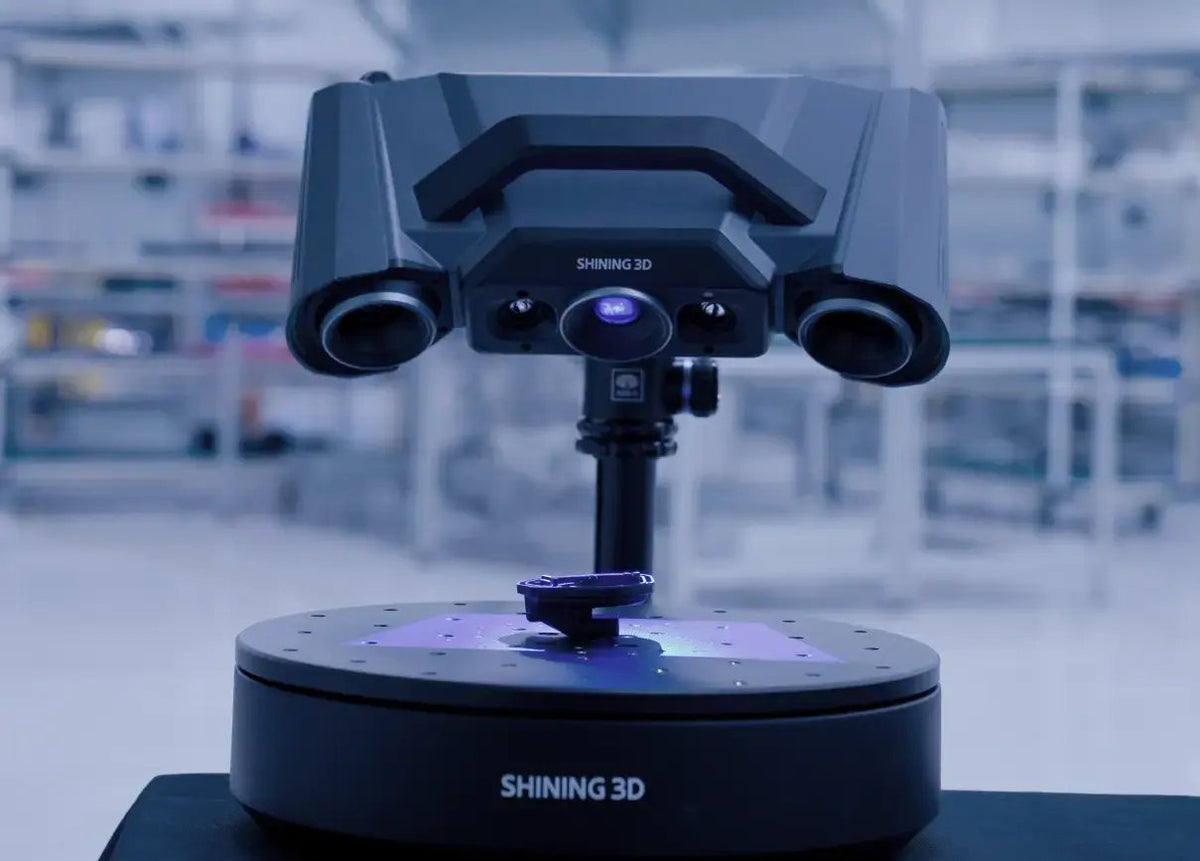

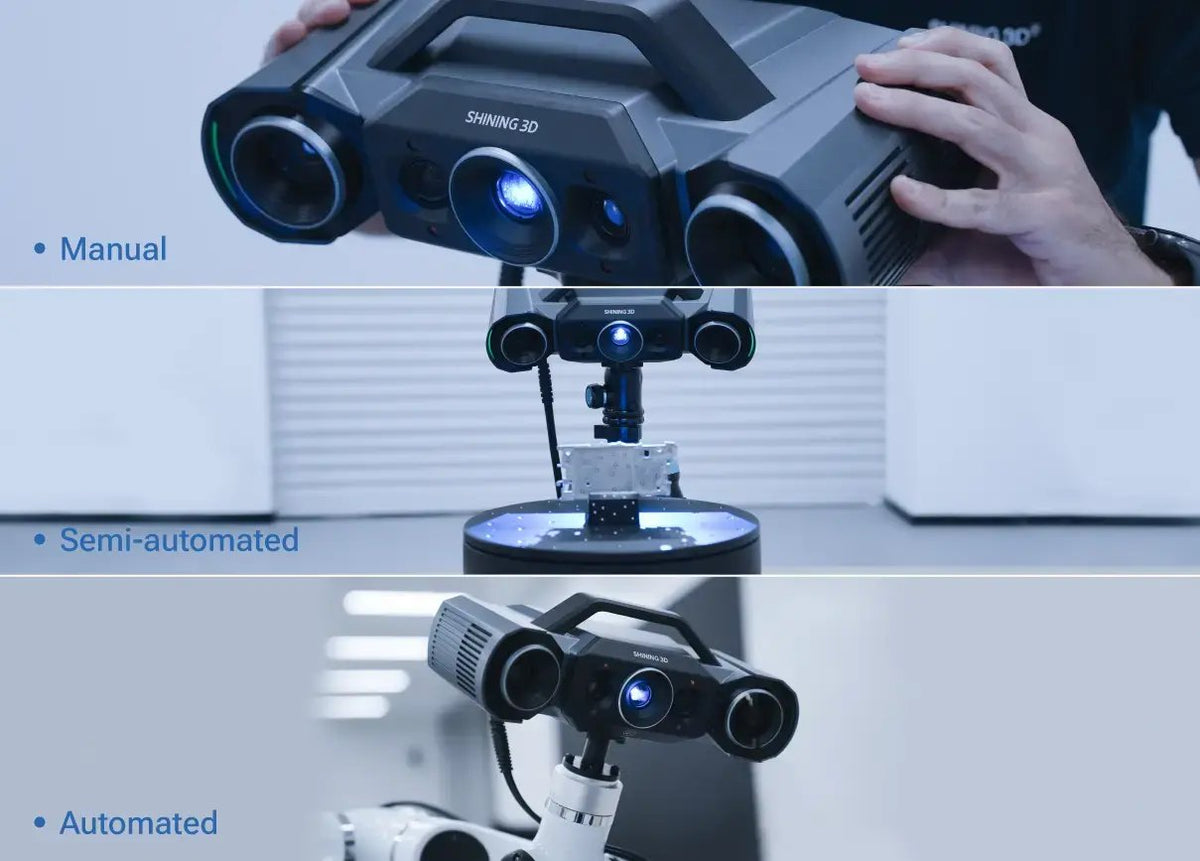

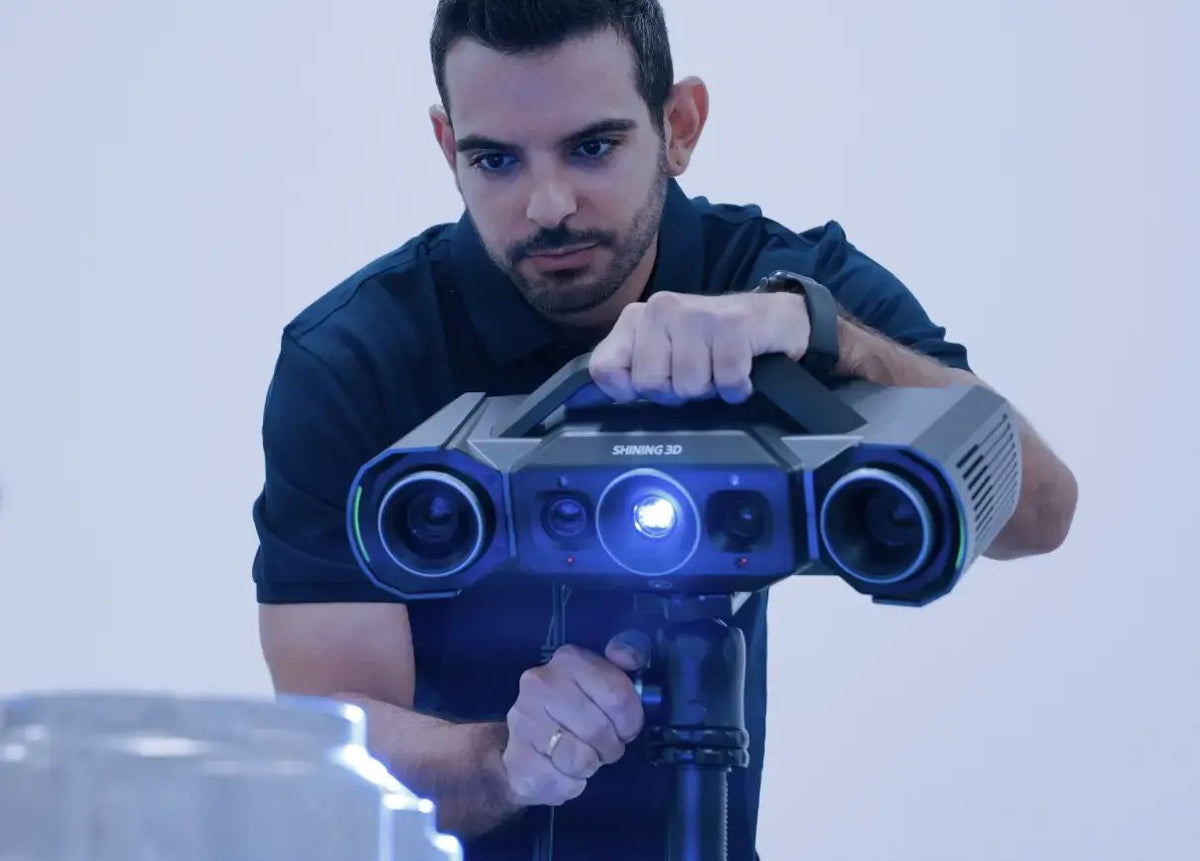

OptimScan Q12/Q9 is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.

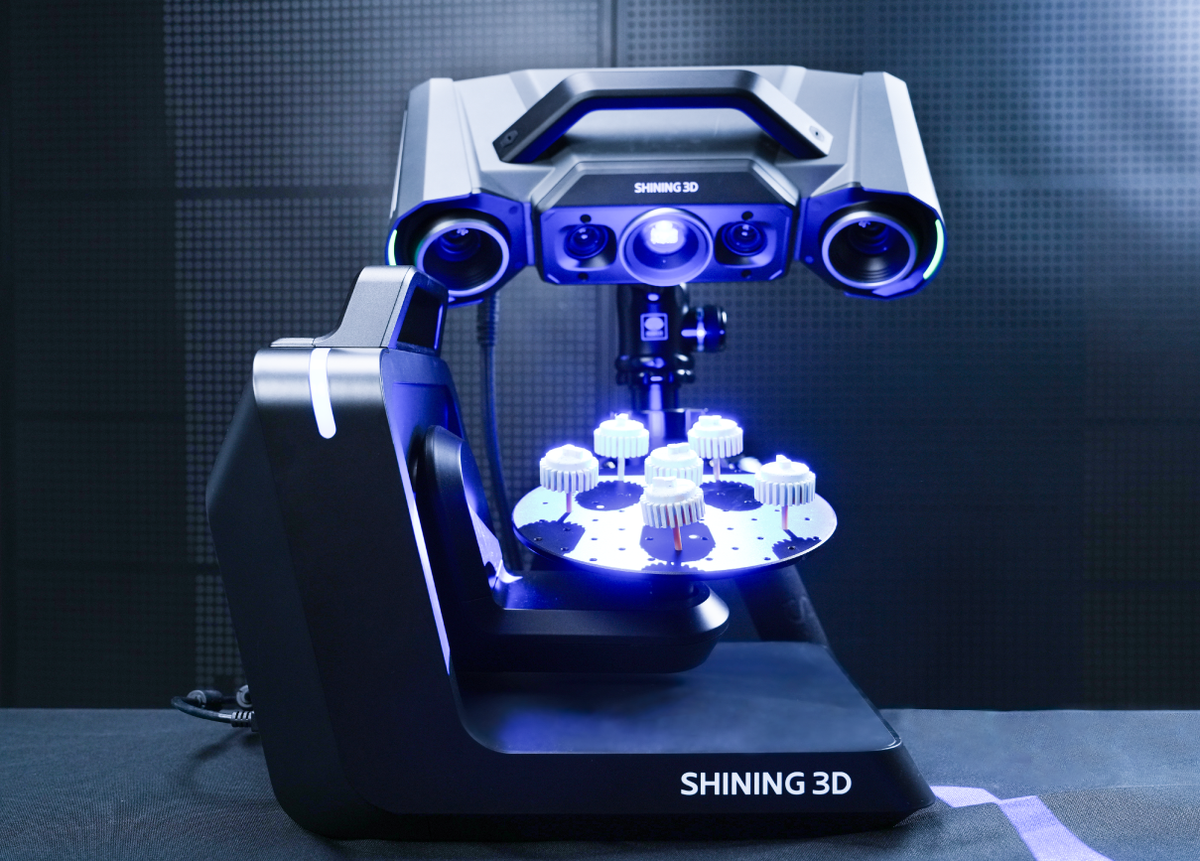

Designed to work seamlessly with high-precision 3D inspection systems, the automatic dual-axis turntable (up to 3 kg load) enables multi-angle automated scanning with a single click within the scanning software.
OptimScan Q12/Q9 can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
Workflow:
1. Path Teaching
2. Automated 3D Measurement
3. Automated 3D Inspection
4. Automated Report Generation
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Component Dimension Inspection (GD&T)
Application Scenarios: Precision machined parts such as engine blocks, transmission housings, turbine blades, and braking system components. Function: Rapid acquisition of high-density point cloud data for geometric tolerance analysis (e.g., flatness, roundness, position) by comparing with CAD models. Detects machining errors (e.g., burrs, deformation) to ensure compliance with industry standards.
Stamped Parts and Sheet Metal Quality Control
Application Scenarios: Stamped sheet metal parts such as fenders, and chassis structural components. Function: Scan surface contours to analyze springback effects and optimize stamping die design parameters. Conduct full-size inspection (FAI) to detect minor wrinkles or cracks, reducing subsequent welding and assembly issues.
Mold Development and Repair
Application Scenarios: Injection molds, die-casting molds. Function: Scan worn molds and perform reverse engineering to generate 3D models for repair or remanufacturing guidance. Compare data from old and new molds to predict lifecycle and reduce downtime costs.
Automated In-Line Inspection (Integrated with Robots)
Application Scenarios: Critical production line stations. Function: Integration with robotic arms enables fully automated scanning. Real-time inspection reports are generated to monitor production trends and provide early deviation warnings.
| Specification | Details |
|---|---|
| Product Type | OptimScan Q12, OptimScan Q9 |
| FOV |
Large range: 430 × 300 mm Small range: 160 × 110 mm |
| Accuracy |
Large range: 0.015 mm Small range: 0.005 mm |
| Point distance | OptimScan Q12: Large range: 0.1 mm, Small range: 0.04 mmOptimScan Q9: Large range: 0.11 mm, Small range: 0.05 mm |
| Working distance |
Large range: 590 mm Small range: 210 mm |
| Depth of field |
Large range: 300 mm Small range: 60 mm |
| Resolution |
OptimScan Q12: 4 × 12.3MP OptimScan Q9: 4 × 9MP |
| Light Source | Blue LED |
| Weight | 3.5 kg |
| Dimensions | 366 × 162 × 132 mm |
| Data Cable Length | 5 m |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Acceptance test | VDI/VDE 2634 Part 2 & ISO 10360 Certified (Tested in the ISO/IEC 17025 Accredited Accuracy Lab) |
