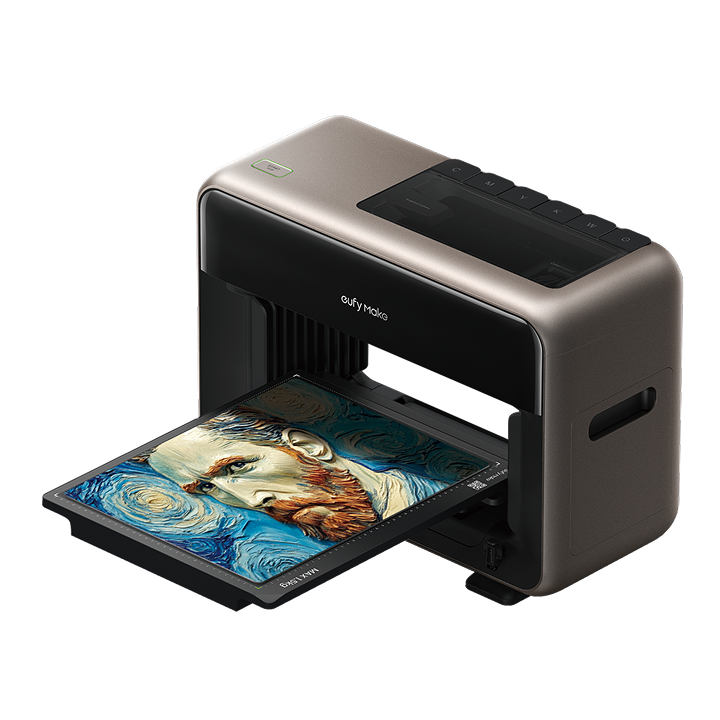

Powered by Amass3D™, the E1 delivers ultra-precise relief printing - every brushstroke, every layer, every dimension, brought to life.

Brushstroke Embossing Faux Texture
E1's ColorMaestro™ technology orchestrates true-to-life tones in crisp detail with ultra-high 1440 DPI resolution.
Print directly onto metal, wood, acrylic, ceramic, stone, glass, canvas, leather, fabric, film, and more.
Standard and Mini Flatbed Printing


Roll-To-Film Attachment





| Feature | Specification |
|---|---|
| Printer Type | Piezo InkJet Printer |
| Overall Dimensions | 590 (W) × 250 (D) × 407 (H) mm |
| Product Weight | 20 kg (44 LB) |
| Product Weight (Including Packaging) | 23 kg (51 LB) |
| Power Input | 100–240V, 50–60Hz |
| Power Output | 66W Max |
| Working Humidity Range | 20% – 85% Relative Humidity |
| Recommended Working Temperature Range | 15°C – 35°C (59°F – 95°F) |
| Working Noise Level | <60dB |
| Print Resolution | 1,440 DPI |
| Printing Surface Area | 13 × 16.5 inch |
| Embossed Print Height | 5 mm Max |
| Supported Printing Load | 1.5 kg (3.31 LB) Max |
| Supported Print Modes | Flatbed (Built-in), Rotary (with rotary attachment installed), Transfer Film (with roll-to-film attachment installed) |
| Color Profile | CMYKWG |
| Supported Substrates | Wood / Metal / Glass / Plastic / etc. |
| Automatic Height Adjustment Range | +0.5 mm |
| Camera Resolution | 8 MP |
| Nozzle Maintenance | JetClean Automatic Self-Cleaning and Maintenance System |
| UV Light Blocking Rating | >90% (under sealed conditions) |
| Wireless Connectivity | Wi-Fi IEEE 802.11 b/g/n 2.4 GHz |
