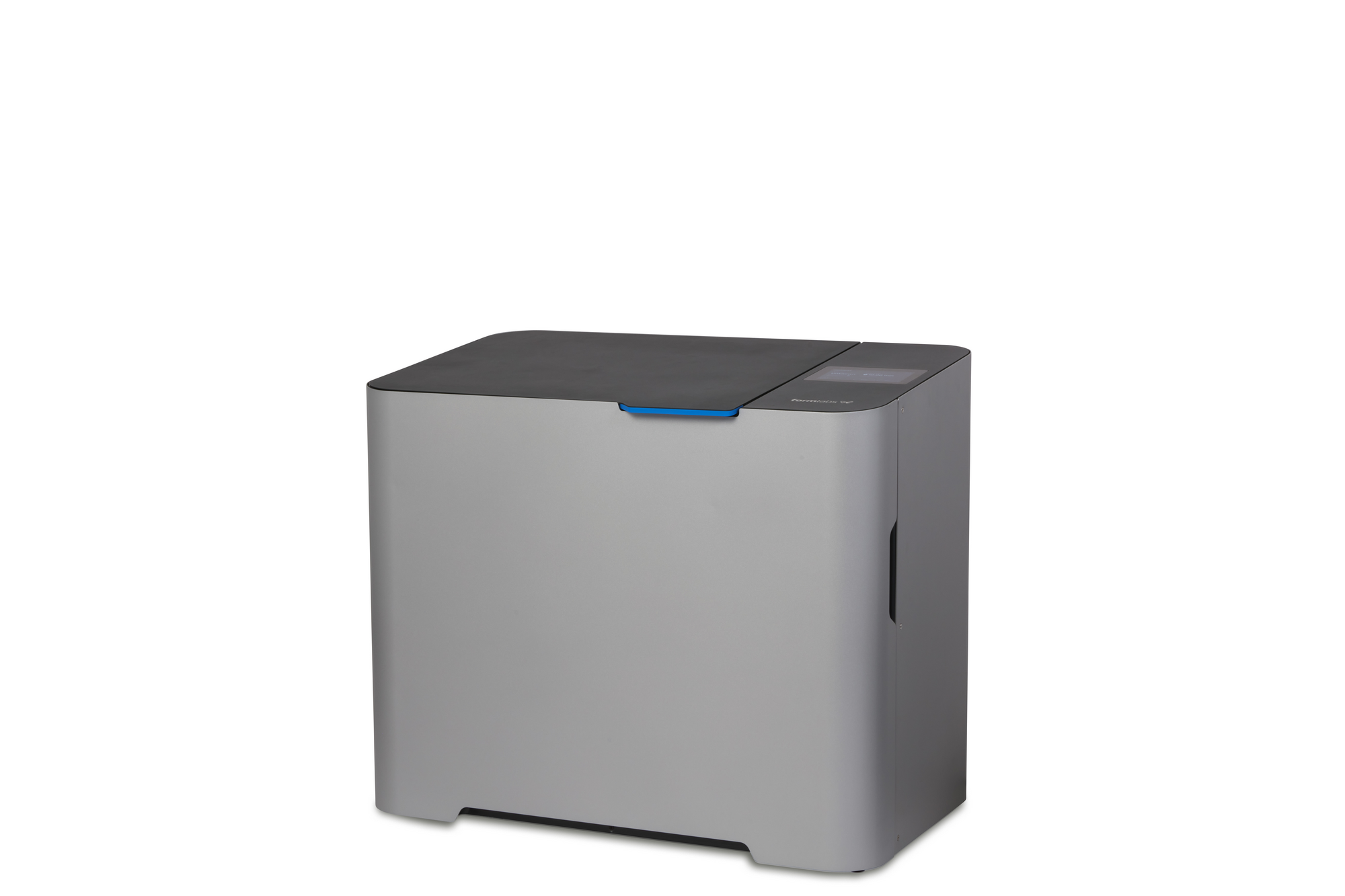

Formlabs Form Wash L V2
All SLA 3D printed parts require washing to remove residual resin. Form Wash L automatically cleans printed parts thoroughly and efficiently with IPA or alternative solvents.

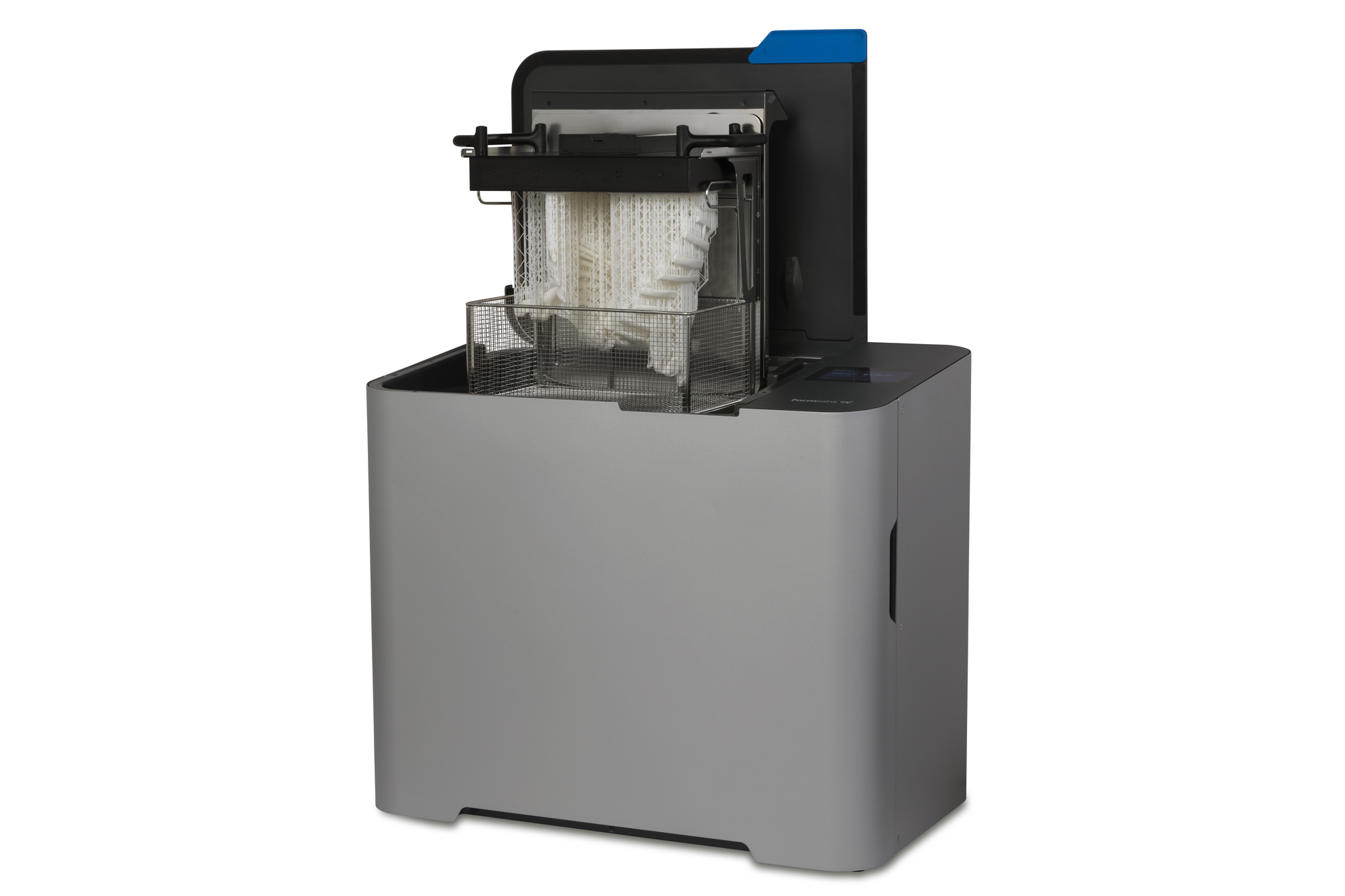

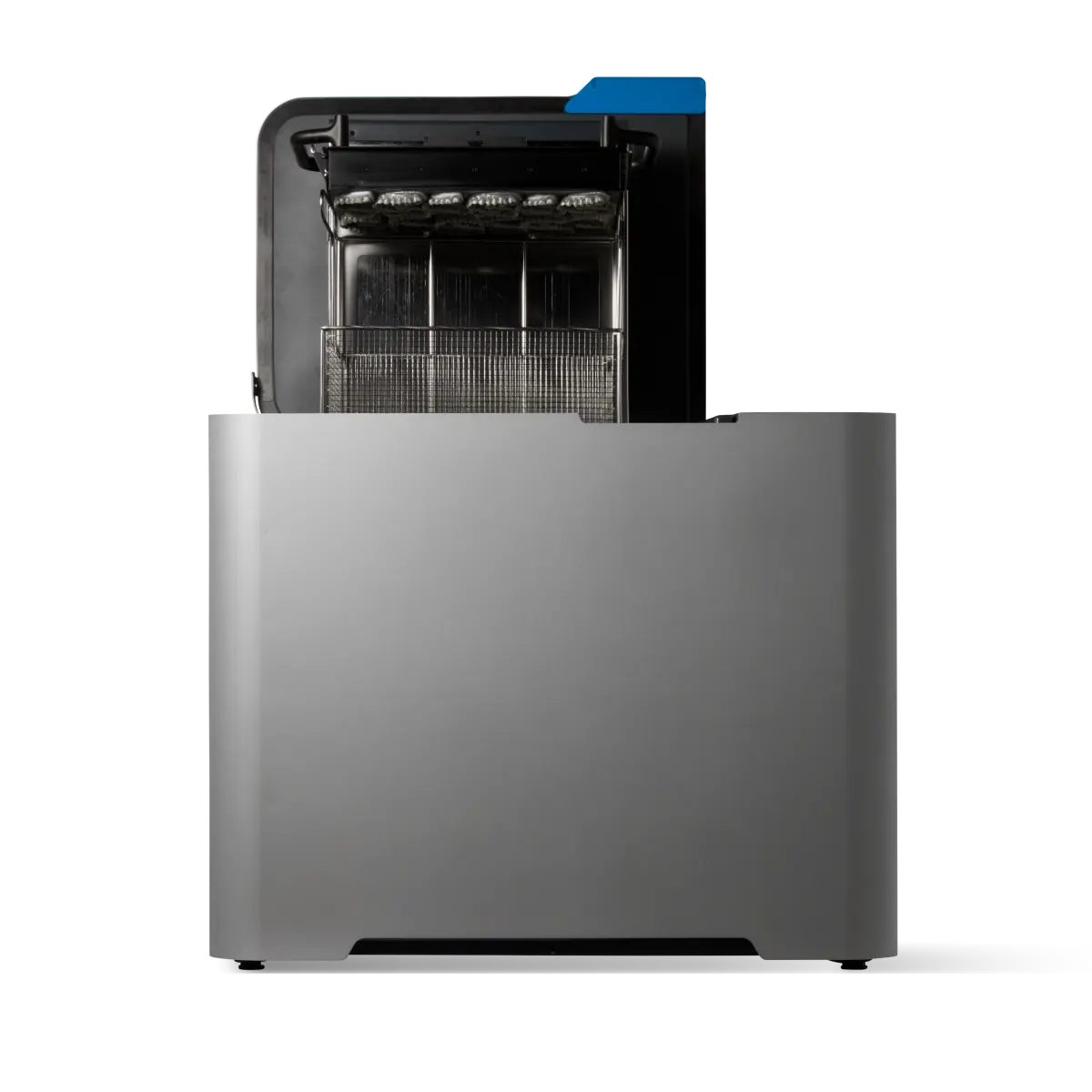

Keep parts directly on the Build Platform as you transition them from the printer to Form Wash L, or remove parts and place them in the wash basket. Parts are precisely and thoroughly agitated in solvent with an impeller, getting every nook and cranny perfectly clean, automatically for the appropriate time. When washing completes, Form Wash automatically raises parts out of the solvent so they can air dry, avoiding over-soaked, warped prints.
Use Form Wash L with all of your Formlabs SLA 3D printers. Wash one Form 4L build platform or two Form 4 build platforms with the included build platform adapter.
- Compatible Printer
- Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
Automate Cleaning With Form Wash L
Streamline your 3D printing process to help you produce high-quality large-scale parts with less time and effort.
Compatible With All Formlabs Materials
Select your material from a list and let Form Wash L auto-clean your parts for the appropriate time.
Improved Agitation
Clean your parts thoroughly with 1.5x more agitation than the previous generation.
Adaptable to Build Platforms
Seamlessly switch between build platforms with adjustable platform mounts, configurable at various heights and widths.
Set It And Forget It
Use the pre-programmed wash settings or save your own frequently used custom profiles to improve post-processing efficiency.
Informed Maintenance
The embedded solvent monitor and cycle counter help you maintain peak cleaning performance by notifying you when it’s time to replace the solvent.
One Size Fits All
Wash one Form 4L Build Platform or two Form 3/B/+ or Form 4/B Build Platforms with adjustable platform mounts.
Form 4L Workflow in Minutes

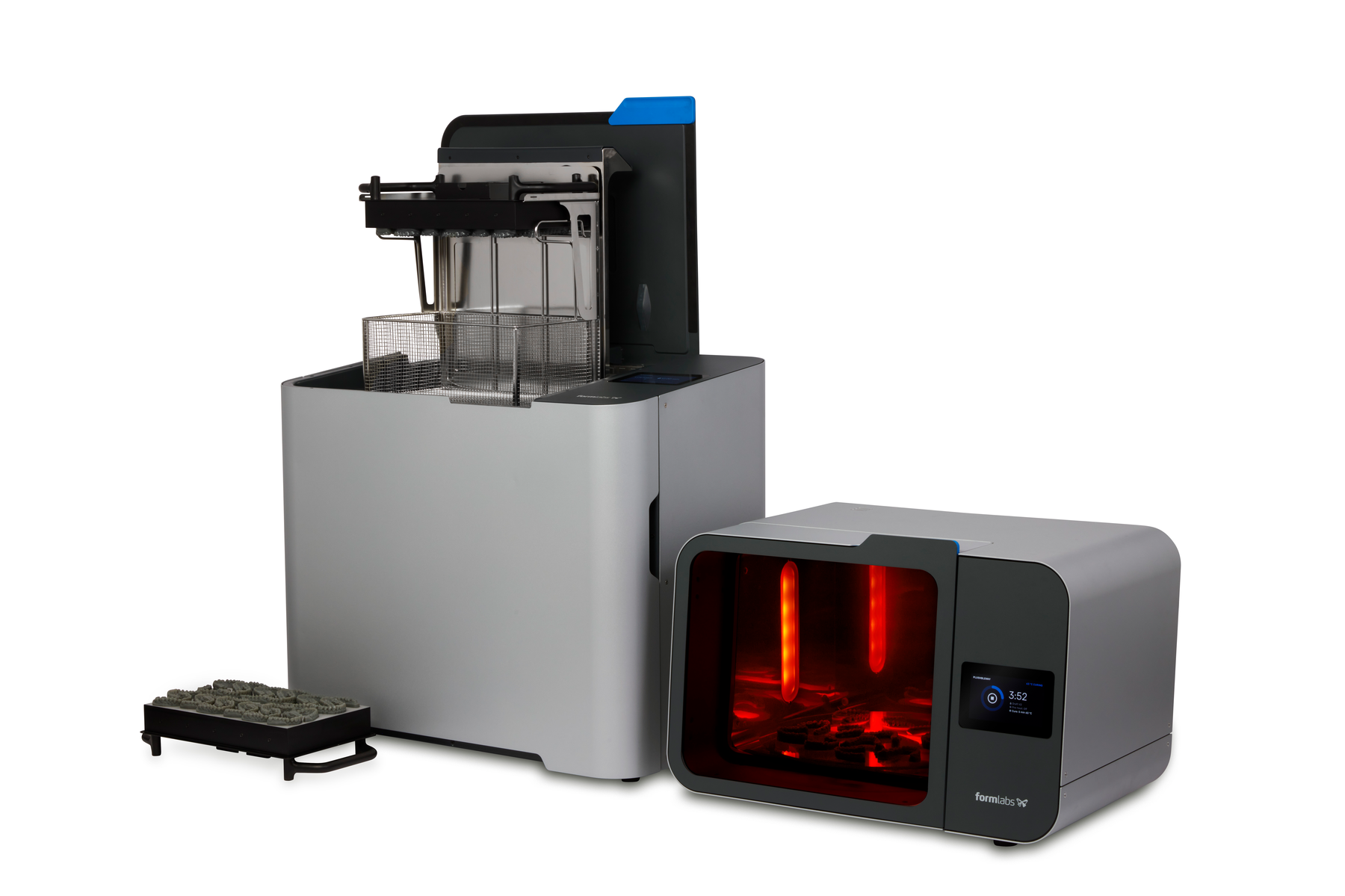

Form Wash L is a part of a 3D printing ecosystem that’s easy to learn and use and requires little intervention or maintenance. Watch the video to learn the basics of how to use Form 4L, from the software and materials to printing and post-processing.
Tech Specs
| Parameter | Form Wash V2 | Form Wash L V1 | Form Wash L V2 |
|---|---|---|---|
| Printer Compatibility | Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2 | Form 3L, Form 3BL, Form 3/+, Form 3B/+, Form 2 | Form 4L, Form 4BL, Form 4, Form 4B, Form 3L, Form 3BL, Form 3/+, Form 3B/+, Form 2 |
| Dimensions | 31.5 x 29.3 x 40.5 cm 12.4 x 11.5 x 15.9 in Height when open: 71.4 cm (28.1 in) |
78.0 x 46.0 x 67.0 cm 30.7 x 18.1 x 26.4 in Height when open: 113 cm (44.5 in) |
78.0 x 46.0 x 67.0 cm 30.7 x 18.1 x 26.4 in Height when open: 113 cm (44.5 in) |
| Weight | 8.6 kg (without solvent) 18.9 lbs (without solvent) |
56.7 kg (without solvent) 125lbs (without solvent) |
56.7 kg (without solvent) 125 lb (without solvent) |
| Bucket Volume | 14.4 L 3.8 US gal |
37.9 L 10.0 US gal |
43.0 L 11.4 US gal |
| Maximum Part Size | 20 x 14.5 x 19.5 cm 7.9 x 5.7 x 7.6 in |
33.5 x 20 x 30 cm 13.2 x 7.9 x 11.8 in |
35.3 x 20 x 29.6 cm 13.9 x 7.9 x 11.7 in |
| Suggested Operating Environment | Suggested 18—28 °C Suggested 64—82 °F |
Suggested 18—28 °C Suggested 64—82 °F |
Suggested 18-28 °C Suggested 64-82 °F |
| Agitation Method | Magnetically coupled impeller | Magnetically coupled impeller | Magnetically coupled impeller |
| Included Accessories | a. Wash Bucket b. Wash Basket c. Hydrometer d. 2x Platforms Mounts |
a. Wash Bucket b. Wash Basket c. Electric Solvent Pump d. Flush Cutters e. Rinse Bottle f. Gloves i. Form 3 Build Platform Adaptor |
a. Wash Bucket b. Wash Basket c. Electric Solvent Pump d. Flush Cutters e. Rinse Bottle f. Gloves |
| Power Requirements | 90–240 V 2.0 A 50/60 Hz 50 W |
Input (NA) 100 - 120 VAC, 50-60Hz, 1A Input (EU) 220 - 240 VAC, 50-60Hz, 1A |
Input (NA) 100-120 VAC, 50-60 Hz, 1 A Input (EU) 220-240 VAC, 50-60 Hz, 1 A |
| Compatible Solvents | IPA, TPM, Formlabs Resin Washing Solution | IPA, TPM, Water, Formlabs Resin Washing Solution | IPA, TPM, Formlabs Resin Washing Solution |
