Bondtech LGX™ For Flexibles Set

Product Description
$104.99 CAD
Maximum quantity available reached.

Designed With Flexibles In Mind

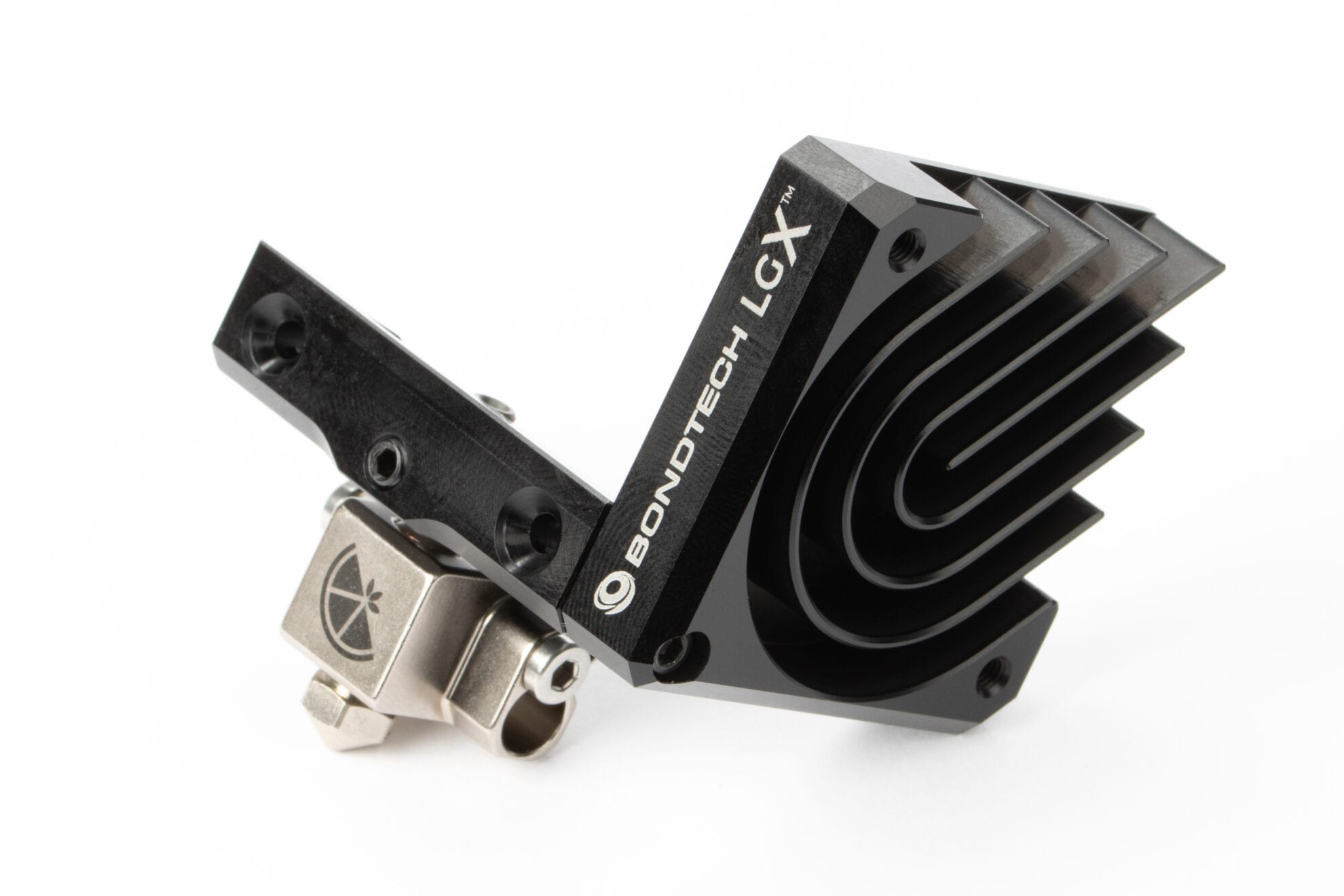

The LGX™ For Flexibles Set is a special setup hotend to be used with the LGX™ eXtruder.

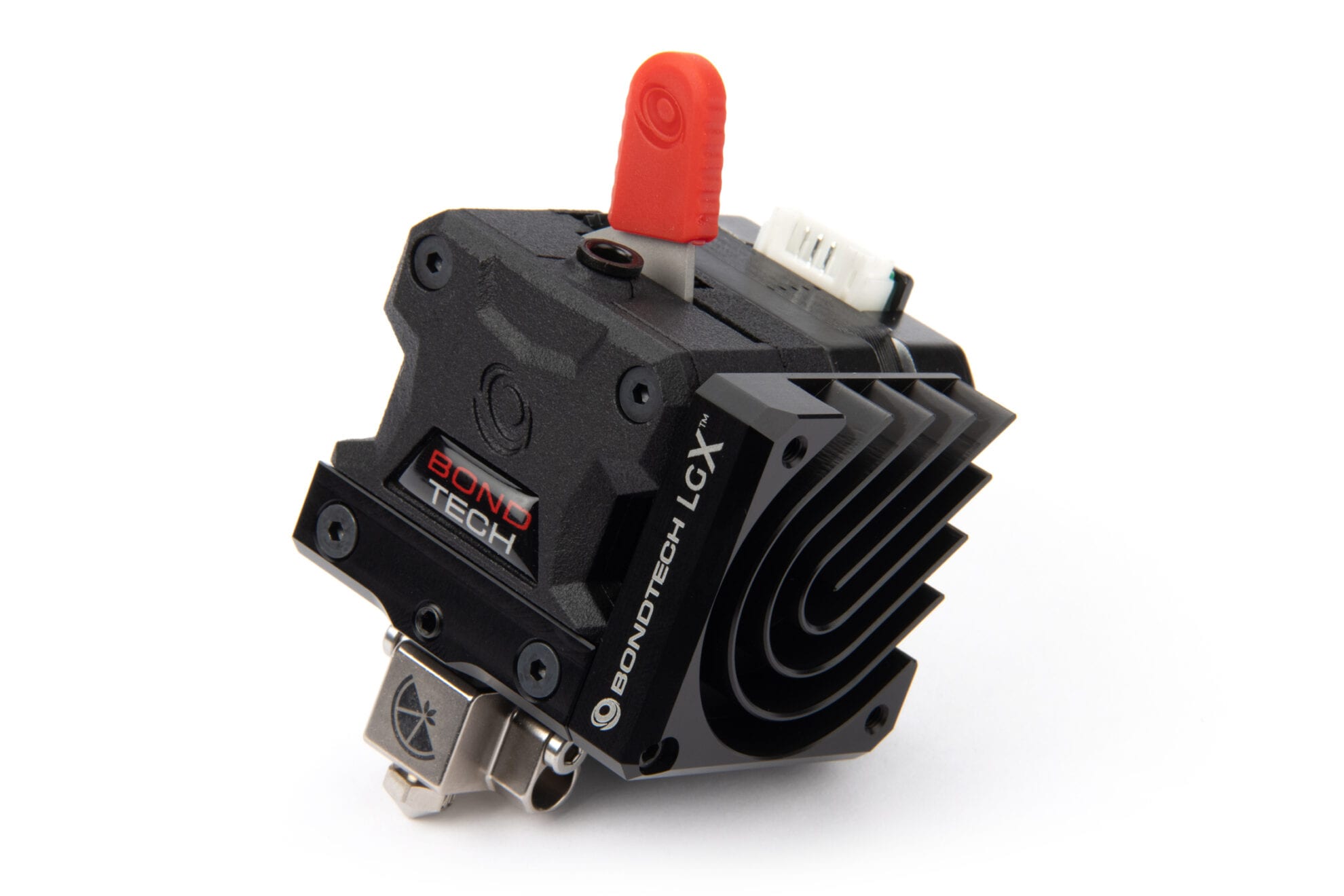

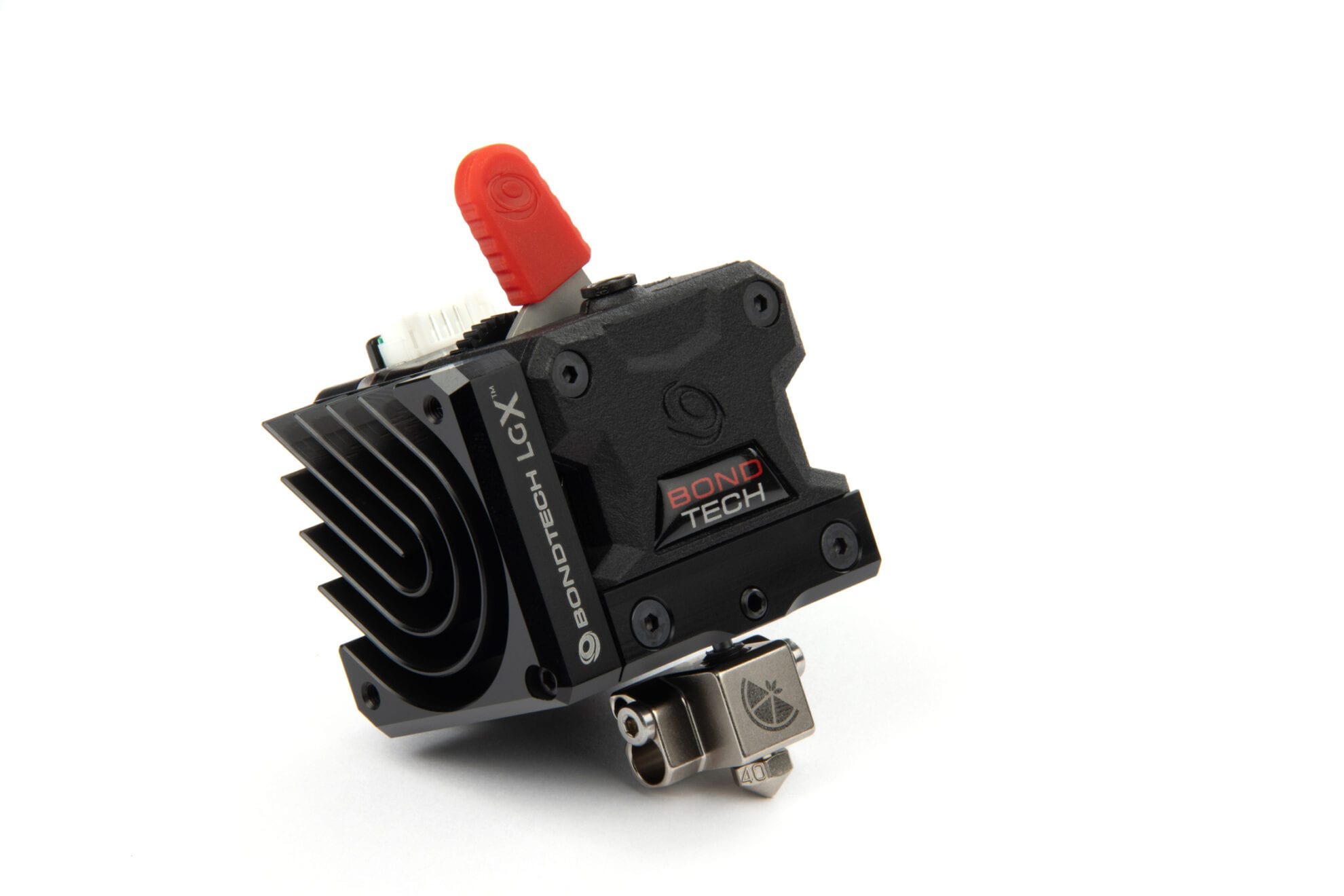

With the LGX™ it forms a print head that will excel at printing ALL most common materials and especially the soft and flexible.



This LGX™ add-on only supports 1.75 mm size filament.


Designed To Be Flexible

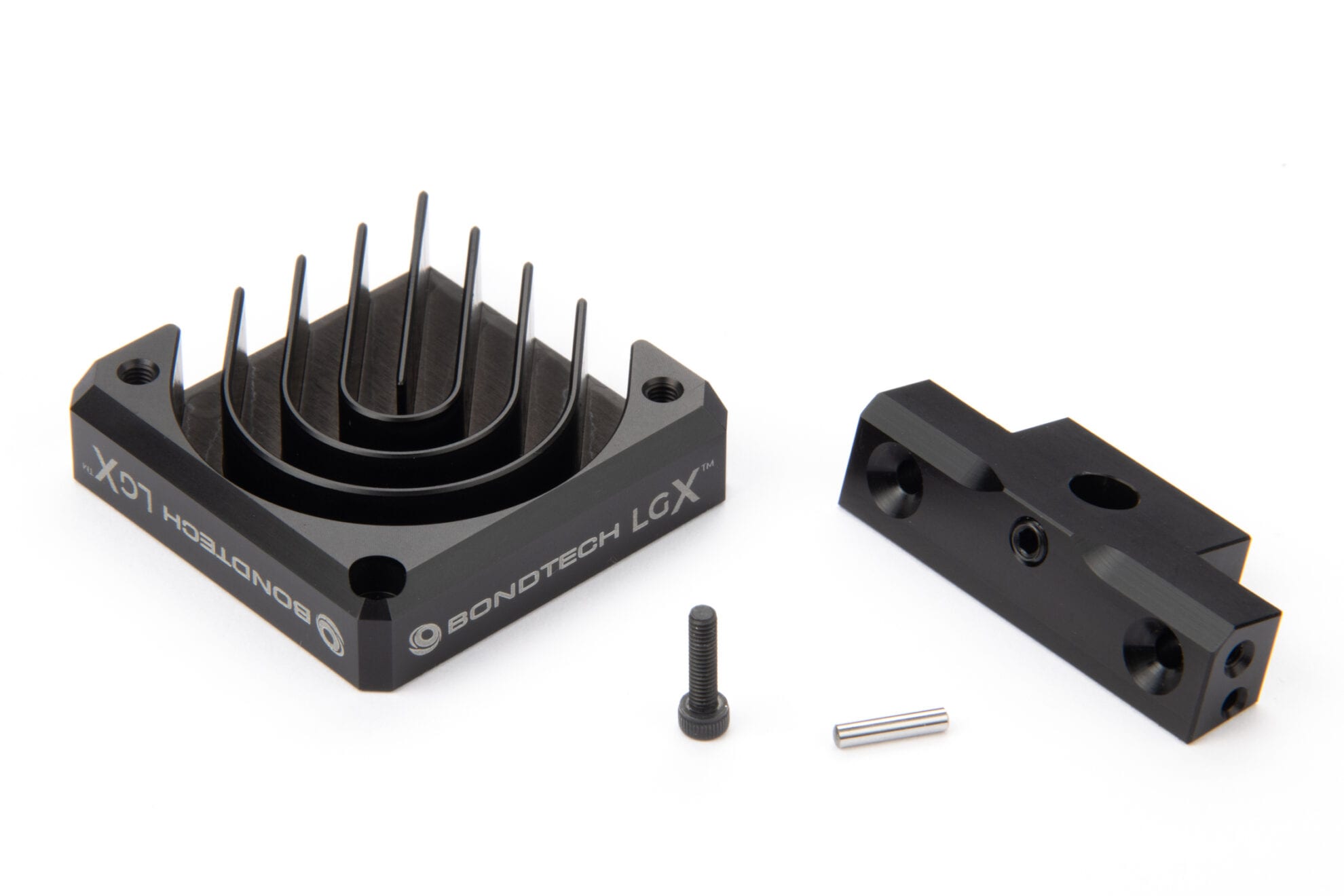

The LGX™ For Flexibles Set includes a reversible heat sink that can be installed on the left or right-hand side of the cold block. The heat sink also includes the hole pattern for attaching 40×40 fans.

Main Advantages

  • Gives access to softer materials.
  • Enables to print flexible and soft materials faster.
  • Keeps the print-head small and light.
  • Allows mounting in many different ways.

Compatibility Alerts

The LGX™ FF is not compatible with the following items:

  • 3DSolex Matchless 1.75mm nozzles.



Each LGX™ FF Set is supplied with:

  • 1x LGX™ Black Anodized Aluminum Heat Sink
  • 1x LGX™ Black Anodized Aluminum Air Cooled Cold Block
  • 1x LGX™ Air-cooled Cold Block Mounting Hardware

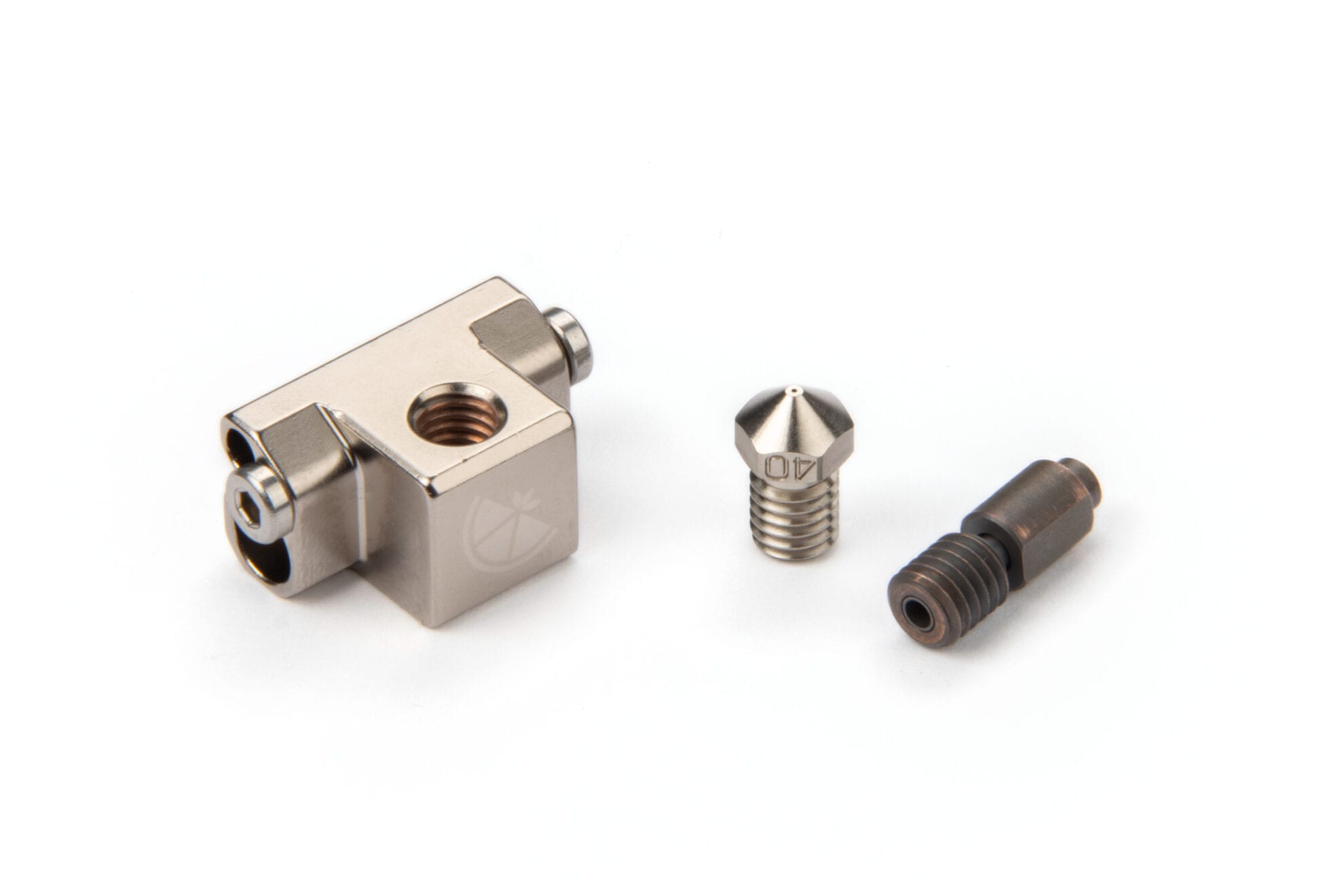

  • 1x Copperhead™ LGX™ Heat Break
  • 1x Copperhead™ Hot Block
  • 1x Bondtech M6x1x7.5 Coated Brass Nozzle 0.4mm

LGX™ Extruder NOT included.



Preparing the LGX



Setting up the LGX FF Set – Assembling the print-head
LGX™ FF SET
  • Cold Block Material: Anodized Aluminum;
  • Heat Sink Material: Anodized Aluminum;
  • Copperhead Hot Block materials: steel tube; copper body; nickel plating.
  • Max operating temperature: 450°C
  • LGX™ FF Set net weight: 55.5 g g
  • Package measurements : 80x103x73 mm
  • Package Weight: 96 g

Click the links below to download STEP files with simplified geometries of each available setup.
