Thunk3D Jewelry 3D Scanner - JS500

Thunk3D Jewelry 3D Scanner - JS500
Thunk3D Jewelry 3D Scanner - JS500
Thunk3D Jewelry 3D Scanner - JS500
Thunk3D Jewelry 3D Scanner - JS500
Thunk3D Jewelry 3D Scanner - JS500

Price
$7,900

Frequently Bought Together

Jewelry 3D Scanner

Jewelry 3D scanner is tailor-made for scanning 5mm-80mm sized small objects to get their 3D models, suchas jewelry, rings, gems, pendants, coin, miniature,watch part, small industrial parts etc, widely used forCAD/CNC/remodeling/digital archive/3D printing etc.

Advantage

Extreme High Accuracy
0.01mm repeated precision owing to machining manufacturing, accuracy < 10 μ m. qualified with industry quality test & control.

High Expansibility
Sub-pixel level algorithm default as 0.008mm resolution, also adjustable up to 0.01mm upon practical application's requirement.

Hign Speed
Dual-axis turntable, effect 3D modeling in 1-2 mins. Support multiple piece scan and divided model scan.

High Compatibility
One key in Mesh Edit Software; Binary STL format, apply in CAD/Rhino3D/Zbrush/MAYA the third party software; Open API interface, support the secondary development

Scan for Jewelry: The Process

Jewelry 3D Scanner will save jewelry CAD designers and manufacturers at least 50% of their time for designing and producing very complex-shaped jewelry pieces.

Jewelry 3D Scanning

Manual measurement is no longer required. Using the highly advanced and fully automated DS3, the gem is scanned easily and quickly.

Jewelry Design

An enormous amount of time is saved for CAD designers using the precise 3D data of the gem. And STL format support all RP machine.

3D Printing & Perfect Fit

Quickly and precisely turn any jewelry items into CAD/ CAM data for modification, mold& tool making and 3D-printing in a cost-efficient way. Finally, the gem is perfectly placed into the designed piece of jewelry!

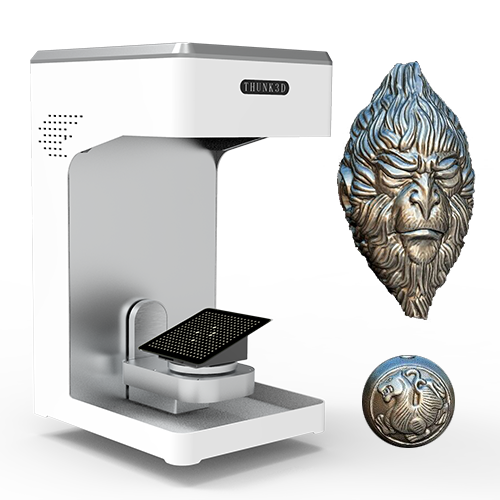

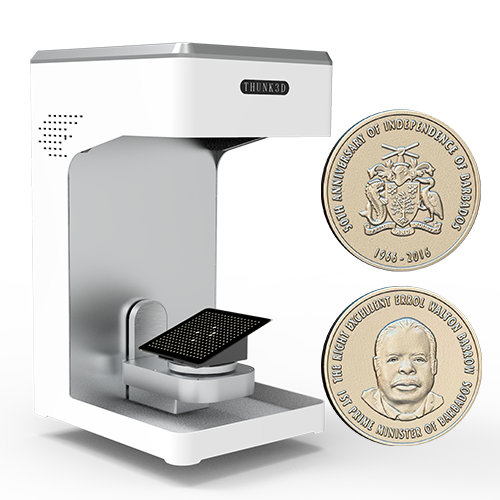

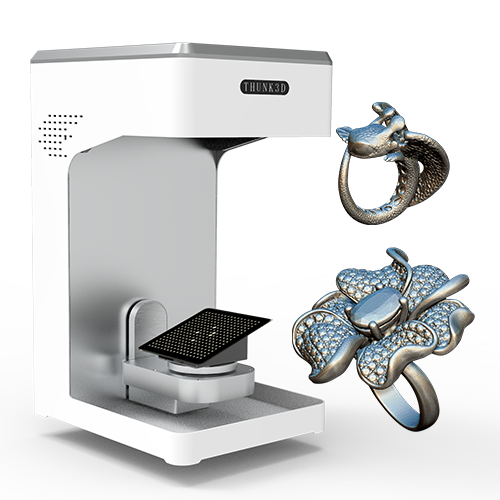

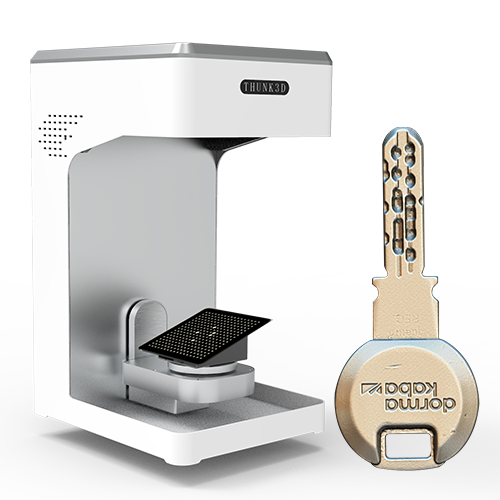

Scanned Cases

Parameter

Parameter Details
Camera Monochrome, 5MP
Raster DLP 1280×1080
Lens 25mm lens
FOV (Field of View) 80×60 mm
Resolution 0.008 mm
Software Free update, Scan // Wrap / After process
Accuracy < 0.01 mm
Scan Volume 5–80 mm
Data Format ASC / STL
Divided Model Scan Yes
Suggested PC Intel CPU + Nvidia as main GPU + Windows 10/11
Certification CE / FCC / WEEE
Public API C++ interface
Shipping Info 11.65 kg / 50 cm × 35 cm × 28 cm
Packing List Scanner, cables, U-disk, adaptor, calibration plate, clip
Value-add Free Mesh Edit Software, open API interface



SKU: THUNK3D-JS500-3DSCANNER
