Bondtech CHT Volcano Coated Brass Nozzle - Various Sizes

These are nozzles for high flow applications

Increase the Max Volumetric Flow of your Volcano heat block by 50%

They are manufactured by Bondtech in-house,
and will fit the following blocks/printers:

Bondtech CHT Vol Coated Brass Nozzle Advantages

• Higher melt capacity by increasing the surface area of the heating walls
• Flow Rate gains between 25 and 65% (check picture with test data)
• Competitive price/performance price
• Machined with ultra-precision
• Brass nozzle with Nickel coated surface
• Follows nozzle standard:
  • Volcano (M6×1×14.5×21)
• May be used with 1.75 or 2.85mm hotends.

Flow Rate gains may vary. Results depend on the hardware, materials and print settings used.

Click here to know more about the Bondtech CHT® nozzles.

Advantages of the Bondtech CHT® technology:

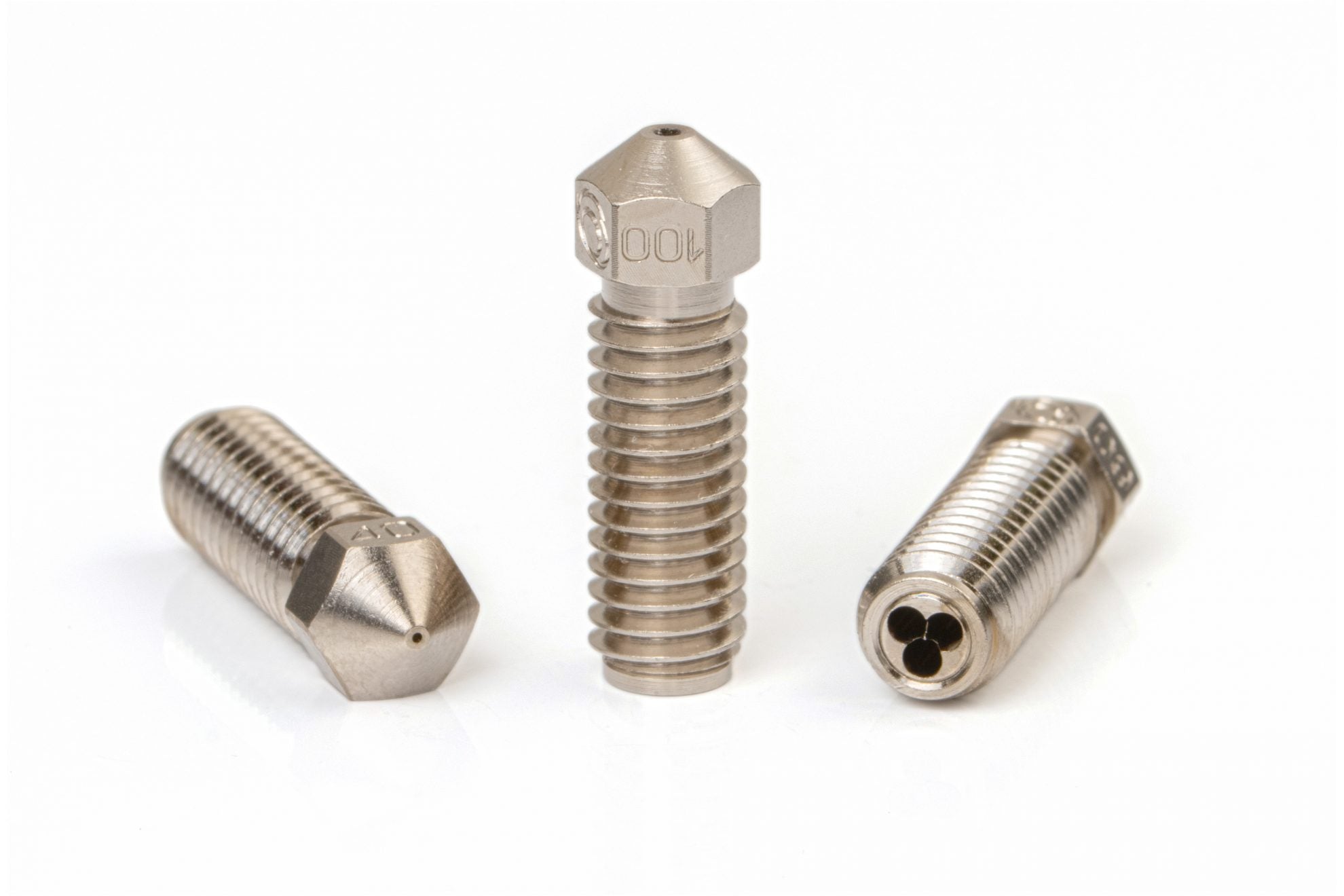

Bondtech CHT® nozzles split the filament into 3 thinner strands allowing to melt the material from within. In doing so, the material melts faster and higher flow rates can be used.

Core Heating is a patented technology

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle's surface.

Recommended Materials

Use this nozzle with the following materials:
