Bambu Lab H2D 3D Printer - ETL Certified (Pre-Order Available Now)

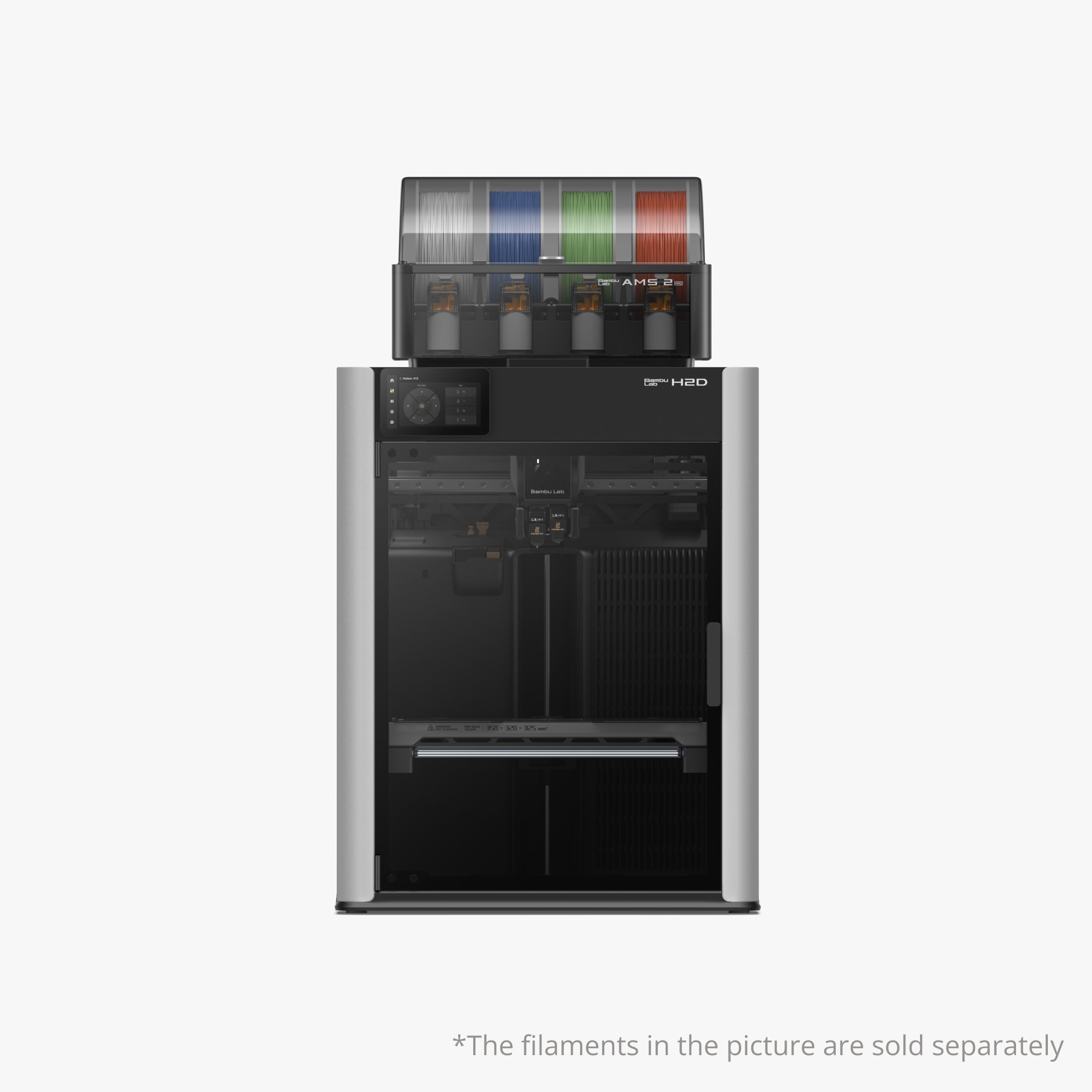

Bambu Lab H2D AMS Combo Printer

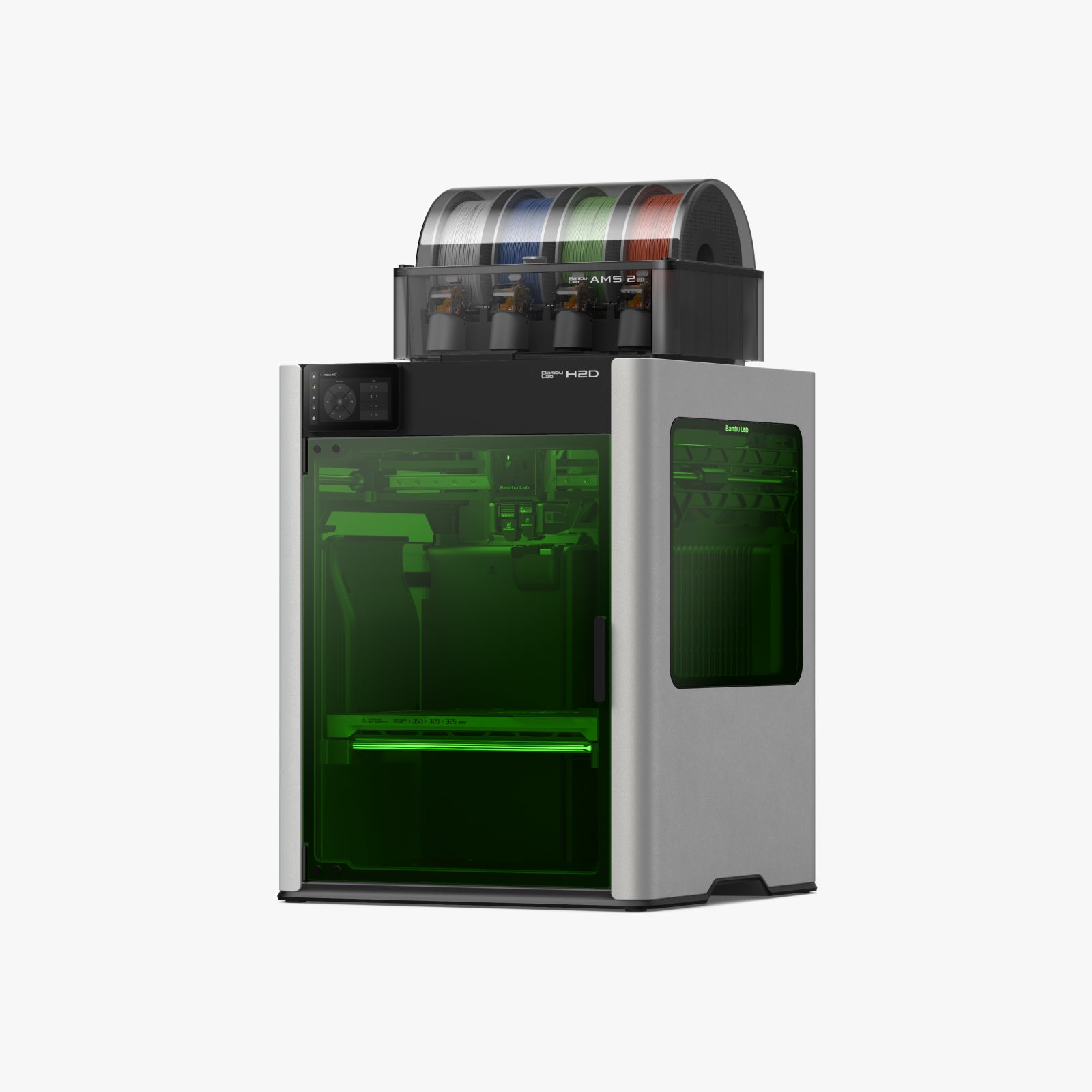

Bambu Lab H2D Laser Full Combo Printer

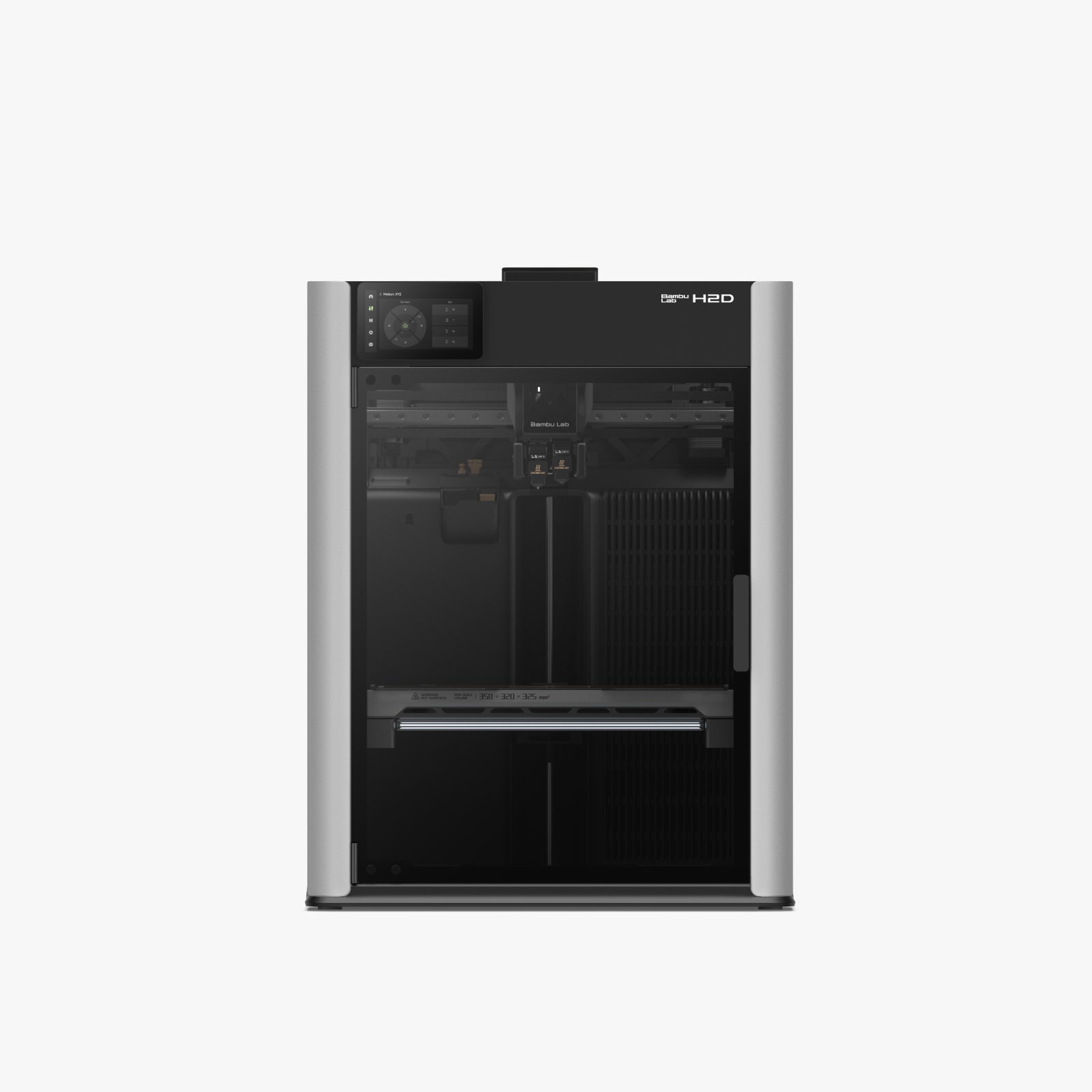

Bambu Lab H2D Printer
Bambu Lab H2D Printer
Bambu Lab H2D Printer
Bambu Lab H2D Combo Printer
Bambu Lab H2D
Bambu Lab H2D 3D Printer
Variants:
H2D AMS Combo

Product variant with selected options does not exist!

View all options as a list

Price
$3,099

Frequently Bought Together

In stock and ready for shipping

Pre-orders are now available!

The delivery timeline for this item has not yet been confirmed. Place your pre-order now to reserve your spot as orders will be processed on a first-come, first-served basis.

Rethink Personal Manufacturing

Explore Dual-Nozzle Capabilities

Multi-material Printing
Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

Dedicated Support Material
Perfect supports with minimal waste, purging and reloading

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

Efficient Multi-color Printing
Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

All-in-one Solution For Personal Manufacturing

Laser
10W and 40W 455nm Laser for engraving & cutting

Digital Cutting
Precise cutting on variety of materials

Pen Drawing
Drawing and writing

Live Spatial Alignment
What-You-See-Is-What-You-Get

The H2D’s BirdsEye camera, combined with computer vision algorhtims, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

 Auto Arrangement
Maximize material efficiency, minimize waste

Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project. This feature helps you to get the most out of every material.

Don’t Worry About Safety – We’ve Got You Covered

Laser Safety Windows

Operate and monitor laser projects safely without the need for goggles, thanks to our safety windows.

Air Purifier

An optional air purifier ensures clean air, even during indoor laser operations.*

Don’t Worry About the Settings – We’ve Got It Covered

Full-auto Calibration

A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.

Material CodeSync

The H2D automatically scans the QR code on your material to load the perfect preset.*

A Serious Laser Machine

Air Assist

Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.

Contact-less 3D Mesh*

Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

Go Big, Go Fast, Go Precise

Our Secret Weapon:Vision Encoder
50µm ultra-fine motion accuracy*

An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

King-size Work Zone
Break free from size constraints

With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

350°C Hotend & 65°C Chamber Heating
Unleash the full potential of high-performance materials

Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.



           Hight-temp Hotend                                        Chamber Heating

REAL High-Flow Hotend*
Consistently print at 600mm/s with ease

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*

DynaSense Extruder
Intelligent sensing for precise extrusion control

Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

 A Smarter, Safer Experience

Nozzle Camera
Monitor extrusion at the nozzle tip

The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

Pre-Flight Checklist by AI
Peace of mind, every time you print

Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

SOTA Filament Monitoring
15 sensors on one filament path

Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.

Unboxing Video

What's in the box

Click the photo below to enlarge


Note

  • 2 servo motors include the one on the AMS 2 Pro.
  • 3D mesh feature will be available shortly after the product release through firmware update.
  • Rotary Attachment is an optional equipment will be available soon, buy at official store.
  • Air Purifier is an optional equipment, buy at official store.
  • BirdsEye camera is only equipped with H2D laser edition, or can be added with laser upgrade kit.
  • Material CodeSync only works with Bambu official materials.
  • The optional Vision Encoder is required for Motion Accuracy Enhancement.
  • Auto Holes-contour Compensation must be enabled in Bambu Studio, and designated Bambu filament must be used.
  • 350mm×320mm×325mm print volume is enable by using identical filaments in both nozzles and print with both nozzles.
  • High-flow Hotends are optional equipments, buy at official store.
  • The 600mm/s print speed refering is by using Bambu PLA Matte filament.
  • Auto Fire Extinguisher is an optional equipment, will be available soon after the product release.
  • Due to safety protocol, Developer mode cannot be enabled when using Laser and Cutting functions.

 H2D Specs

Item Specification
3D Printing Technology Fused Deposition Modeling
Body Build Volume (W*D*H) Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell Aluminum, Steel, Plastic and Glass
Laser Safety Windows Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Air Assist Pump Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical Dimensions Physical Dimensions 492*514*626 mm³
Net Weight  31 kg
Toolhead Hotend All Metal
Extruder Gear Hardened Steel
Nozzle Hardened Steel
Max Nozzle Temperature 350 °C
Included Nozzle Diameter 0.4 mm
Supported Nozzle Diameter 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter 1.75 mm
Extruder Motor Bambu Lab High-precision Permanent Magnet Synchronous Motor (PMSM)
Heatbed Supported Build Plate Type Textured PEI plate, Smooth PEI Plate
Max Heat Bed Temperature 120℃
Speed Max Speed of Toolhead 1000 mm/s
Max Acceleration of Toolhead 20,000 mm/s²
Max Flow for Hoten d(Standard Flow Hotend) 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280°C printing temperature)
Max Flow for Hotend(Optional High-Flow Hotend) 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280°C printing temperature)
Chamber Temperature Control Active Chamber Heating Supported
Max Temperature 65°C
Air Purification Pre-filter Grade G3
HEPA Filter Grade H12
Activated Carbon Filter Type Granulated Coconut Shell
Supported Filament Type PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA,PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS -CF /GF
Sensor Live View Camera Built-in; 1920*1080
Nozzle Camera Built-in; 1920*1080
BirdsEye Camera Built-in; 3264*24 48 (Equipped with Laser Edition)
Toolhead Camera Built-in; 1920*1080
Electrical Requirements Voltage 100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power 2200 W@220 V / 1320 W@110 V
Average Power 1050 W@220 V / 1050 W@110 V
Electronics Touchscreen 5-inch 720*1280 Touchscreen
Storage Built-in 8 GB EMMC and USB Port
Control Interface Touchscreen, mobile App, PC App
Neural Processing Unit 2 TOPS
Software  Slicer & Software Bambu Studio, Bambu Suite, Bambu HandySupports third-party slicers that export standard G-code, such as Super Slicer, PrusaSlicer, and Cura, but certain advancedfeatures may not be supported
Supported Operating System MacOS, Windows
10W & 40W Laser Module Laser Type Semiconductor Laser
Laser Wavelength Engraving Laser: 455 nm ± 5 nm Blue LightHeight Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power 10 W ± 1 W; 40 W ± 2 W
Laser Spot Dimension 10W: 0.03 mm*0.14 mm; 40W: 0.14 mm*0. 2mm
Working Temperature 0°C–35 °C
Max Engraving Speed 10W: 400 mm/s; 40W: 1000 mm/s
Max Cutting Thickness 10W: 5 mm; 40W: 15mm (Basswood Plywood)
Engraving Area 10W : 310 mm * 270 mm; 40W : 310 mm * 250 mm
XY Positioning Accuracy < 0 . 3 mm
Z Height Measuring Method Micro Lidar
Z Height Measuring Accuracy ± 0.1 mm
Ventilation Pipe Adapter Outer Diameter 100 mm
Supported Material Type Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
Cutting Module Cutting Area 300*285 mm²
Drawing Area 300*255 mm²
Supported Pen Diameter 10.5 mm-12.5 mm
Cutting Mat Type LightGrip and StrongGrip Cutting Mats
Blade Type 45°*0.35 mm
Blade Pressure Range 50 gf-600 gf
Max Cutting Thickness 0.5 mm
Supported Image Type Bitmap and Vector Images
Supported Material Type Paper, vinyl, leather, and more



Download TDS
