Duet 2 Ethernet

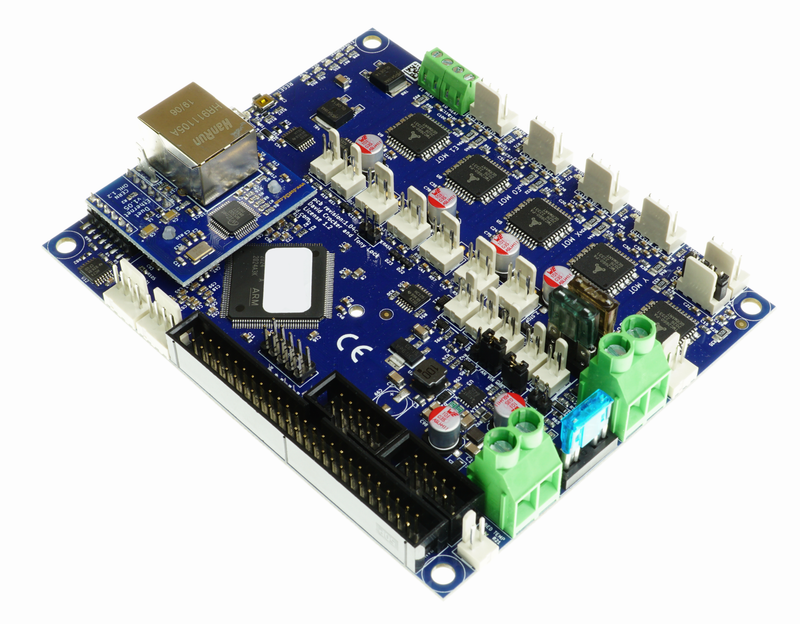

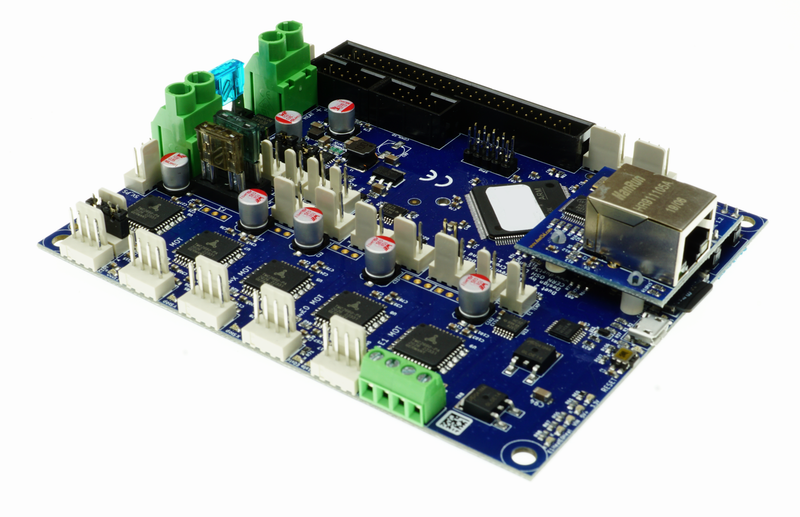

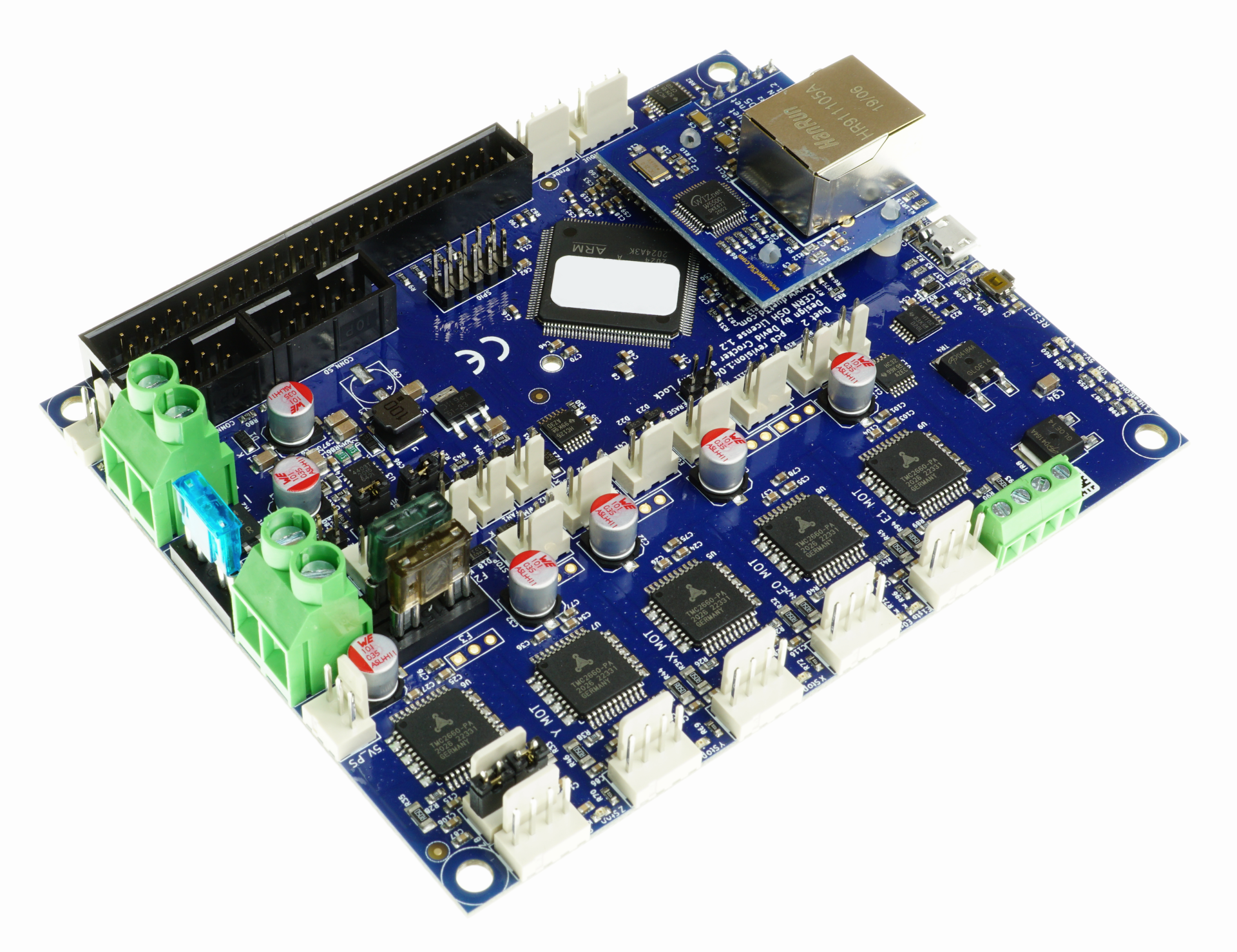

Duet3dThis is the latest version of the Duet 2 Ethernet, v1.05

The Duet 2 Ethernet is an advanced 32 bit electronics board for the control of 3D printers and other CNC machines. It has the same features as the Duet 2 Wifi, other than providing ethernet connectivity rather than Wifi, a full feature description is available on our documentation, in summary:

Powerful 32 Bit Processor

• Dedicated ethernet module.
• Super quiet TMC2660 stepper drivers, up to 256 microstepping.
• High speed SD card and support for a second SD external card if required.
• Dual extruders on the main board, up to 5 more extruders on the expansion board.
• High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high current (18A).
• Connect via PC, tablet or smartphone on the same network to the on board web interface.
• Setup your printer and update the firmware through the web interface.
• All common 3D printer geometries are supported
• Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high power external drivers.
• Support for the PanelDue: a full colour graphic touch screen.
• Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.
