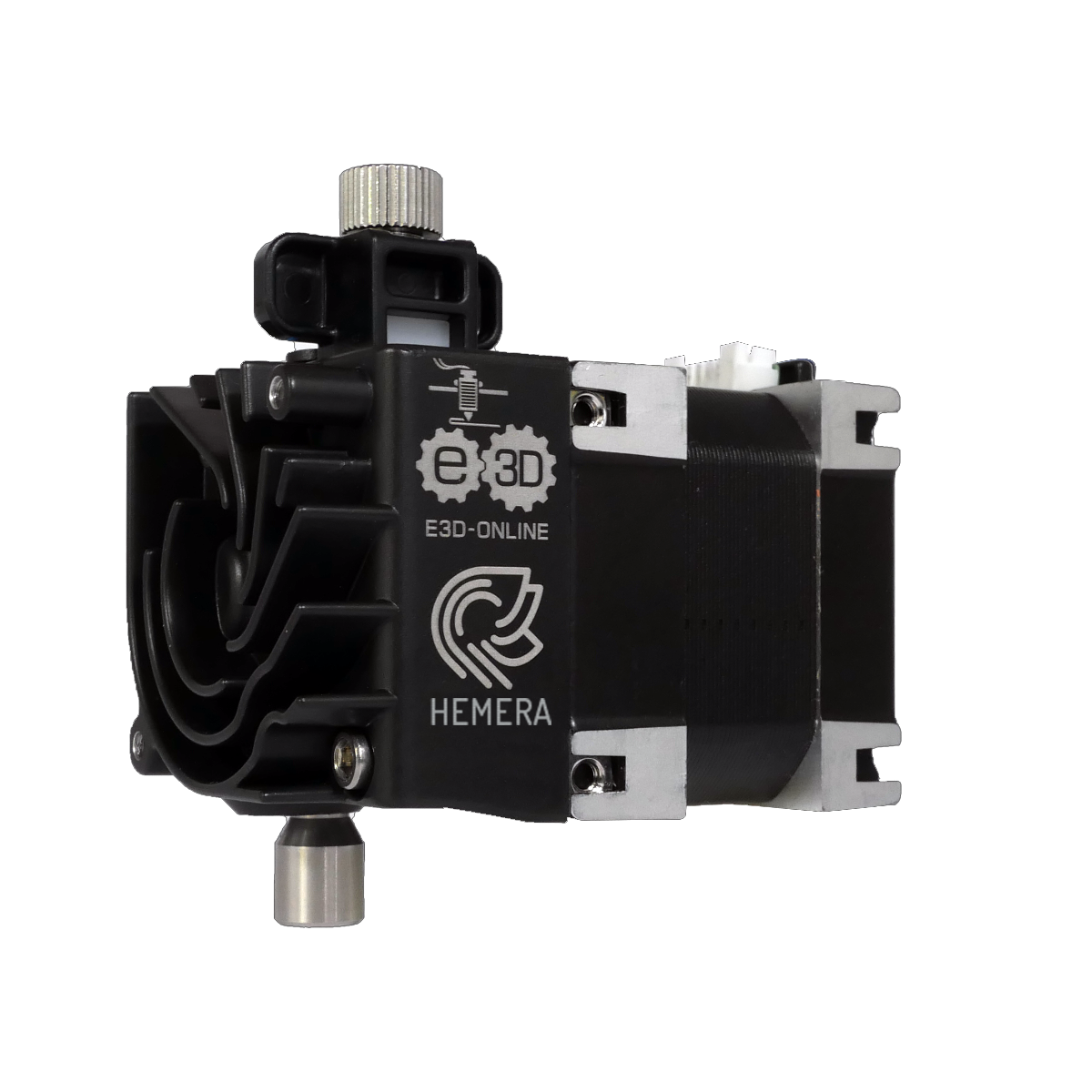

E3D Hemera Bowden Kit

Looking to upgrade your printer with a next generation extrusion system? Hemera is a compact, dual drive extrusion system that pairs excellently with the E3D V6, Cyclops+, Chimera+ or other 3rd party hotends.

Dual-Drive

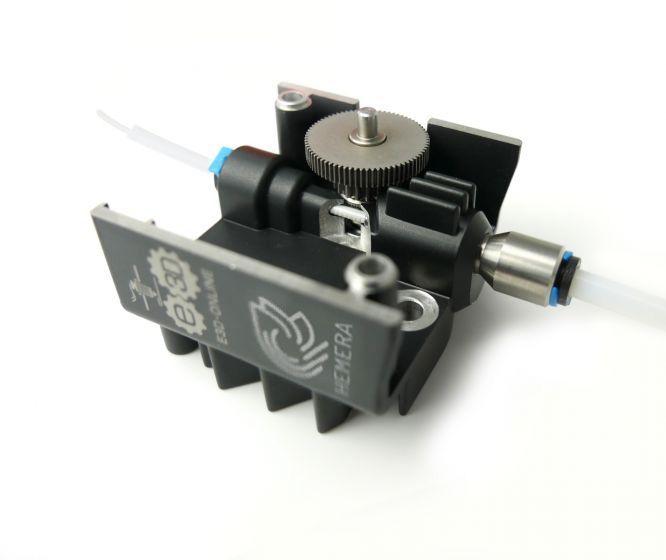

Hemera features a dual-drive, hardened stainless steel drive train, providing a huge boost in grip compared to single drive systems. As standard, it is fully capable of printing abrasive filaments without risk of premature wear.

Mounting made easy

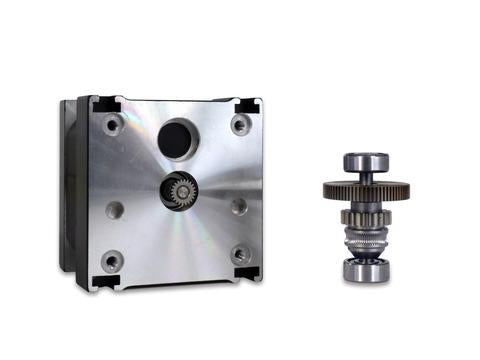

The custom motor, based on a NEMA 17 frame with custom faceplate designs, allows square nuts to be placed into the T-slots for convenient mounting to your printer.

Download Data Sheet

Key Features:

• Direct drive
• 10kg pushing force
• Great for flexible filaments
• T-slot mounting system
• Optimised airflow
• Maximum temperature: 285°C

This kit contains:

• 1 x Hemera assembly
• 1 x 1.75mm Bowdaptor
• 1 x 1.75mm collet
• 1 x 1.75mm collet clip

Please note:

Whilst Hemera’s custom motor is similar to a Nema 17, it isn’t a standard Nema 17. Therefore, Hemera is not compatible with other Nema 17 motors and you'll not be able to swap the motor with either a compact but powerful/ slimline motor or other 3rd party motors.

Hemera Assembly

Hemera Firmware

Hemera CAD
