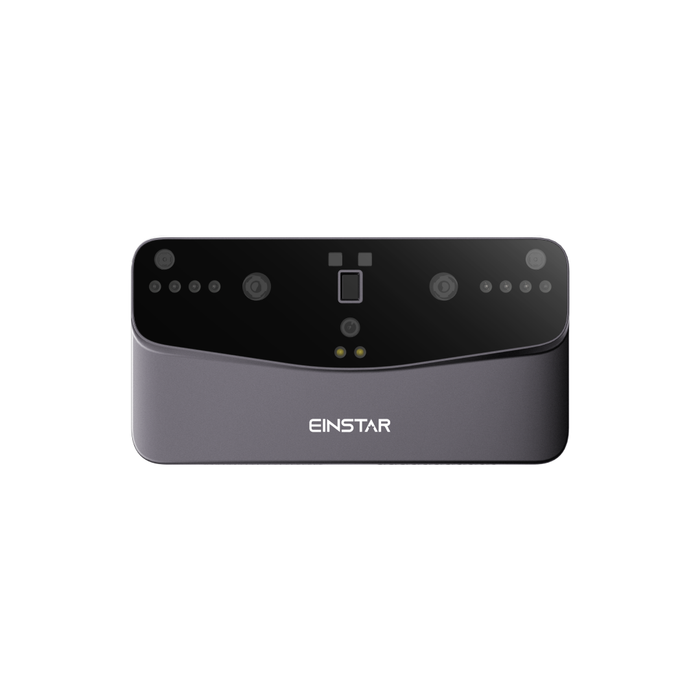

EINSTAR VEGA-Wireless All-In-One 3D Scanner
ALL-IN-ONE System
- Two Scanning Technologies in One
- Built-in Computing
- Internal Data Archiving
Two 3D Scanners in One
- VCSEL For Long Range Scanning
Smooth Scanning under Unlimited Environment
- MEMS For Short Range Scanning
Stable Scanning for High-Detail Data
Pick Up and Scan
- Ergonomic Design
- Lightweight 535g
- One-Click Start
Wireless Solution
- Wireless Scanning -- Without Connecting to PC
- Wireless Transfer -- Data Sharing to SHINING 3D Cloud
- Wireless Projection -- Display on a Second Screen
Comprehensive Object Scanning
HD Mode
- For small to medium size objects
- Working Distance 100～300mm for small objects
- Scanning Speed Up to 15fps
Comprehensive Object Scanning
Fast Mode
- For medium to large size objects
- Working Distance 350～1500mm for medium to large objects
- Scanning Speed Up to 20fps
Beginner-Ready Design
One-Click Editing
Automatic Configuration Selection, Efficiency Improvement.
Powerful Hardware
- 6.4 Inch 2K AMOLED
- 32 RAM
- 32GB eMMC + 512GB SSD
- 48MP RGB Texture Camera
- Continuous Operation During Charging
PC Software Starvision
Compatible with Windows and Mac OS
SHINING 3D Cloud
- Data Sharing and Collaboration
- Data Storage and Management
- Data Measurement
- Free 5GB space to each SHINING 3D user
Reliable Scanning Outdoor and Indoor
- Outdoor Scanning under Sunshine
- Ideal for Dark Surfaces
Smooth Scanning at Any Time
Scan at Night Without Limitation
Features
Intelligent Software
The Einstar Vega features Multi-OS compatibility with Mac OS and Windows
All-In-One Design
Two scanning technologies and built-in computing while being completely wireless.
Two 3D Scanners In one
MEMS projection for highly detailed close up scanning, with a working distance of 120~250mm. Or utilize VCSEL Projection for long range scanning or outdoor 3D scanning, with a working distance of 350 ~ 1500mm
High Quality Imaging
The Einstar Vega features image capture with lifelike color, allowing for a highly color accurate 3D model.
Powerful Hardware
The Einstar Vega has powerful internals to allow for a smooth experience and features extensive storage built-in.
- 6.4" 2K AMOLED Screen
- 8-Core 2.4GHz Processor
- 32GB of RAM
- 512GB ROM SSD
Tech Specs
- Scan Mode: HD Mode / Fast Mode
- Point Distance: HD Mode: 0.05mm～3mm / Fast Mode: 0.5mm~10mm
- Working Distance: HD Mode: 100-250mm / Fast Mode: 350-1500mm
- Align Mode: Feature; Texture; Markers; Hybrid
- Output Formats: ply; stl; obj; asc
- Scanner Body: Weight Limited edition : 643g; / Regular edition : 535g
- CPU: 8-core CPU, 2.4GHz
- Internal Hard Drive: 32GB eMMC + 512GB SSD
- Interface: Wi-Fi 6, USB Type C
- Supplemental Light: 10
- Operating Temperature Range: -10~40C
- Packing Size: 380*305*155mm
- Protection Grade: IP50
-
Supported OS: No computer required for 3d scanning operation;
StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS
Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )
- Light Source: HD Mode: Infrared MEMS / Fast Mode: Infrared VCSEL
- Capture Frame: HD Mode: up to 15 fps / Fast Mode: up to 20fps
- IR Camera Resolution: HD Mode: 2MP / Fast Mode: 1.3MP
- Color Camera Resolution: 48 MP
- Outdoor Scan: Yes
- Scanner Size 180mm*95mm*26.5mm
- RAM 32 GB LPDDR4 Memory
- Power Charger: 65W fast charging, supports PD/PPS protocols
- Touchscreen: 6.4'' 2K OLED
- IMU: 6 DoF
- Operating Humidity Range: 0 to 90% RH (non-condensing
- Packing Weight: 3200g
- Battery: Built-in 5000mAh； / External power bank charging supported
