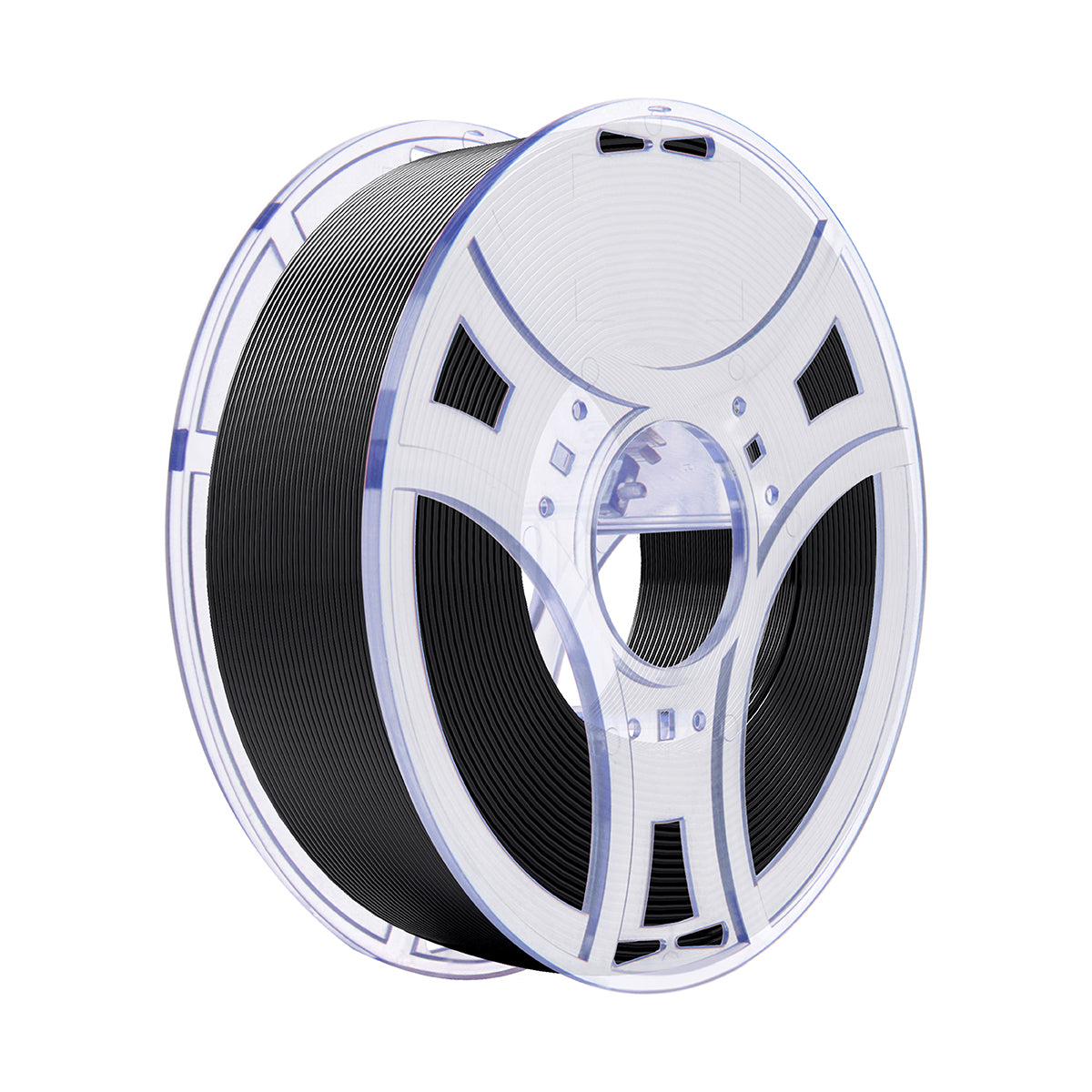

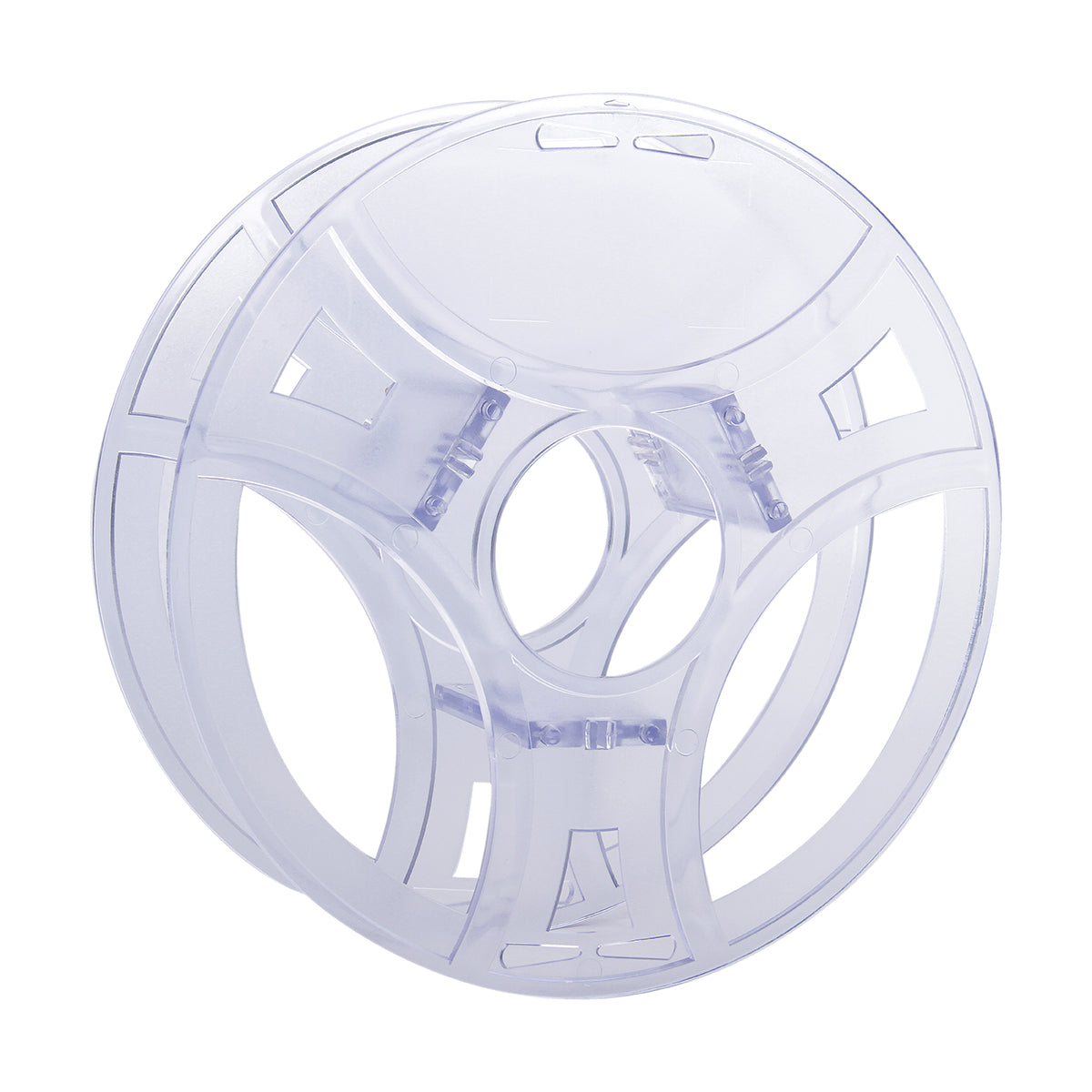

eSun eSpool - 1kg Reusable Spool for eSun Refilament
eSUN eSpool is only compatible for the eSUN Refilament Series
With the growing popularity of 3D printing technology, the usage of 3D printing filaments has also increased. The filaments used in FDM 3D printing are mostly spooled, which occupies space and weight. To protect our environment, the detachable and reusable eSpool was designed.
Advantages
- Uses transparent polycarbonate for high strength and toughness.
- Sheet body assembly structure: light weight, space saving, transportable, resourceful, reusable and environmentally friendly.
- Large hollow structure: PC can withstand high temperatures, making it convenient for drying conventional and high-performance filaments.
- The packaging bag is made of biodegradable and environmentally friendly PBAT and PLA biological materials, in line with EU export standards.
| Features | Advantage | Benefit |
| PC material | High toughness and strength | Reusable |
| Assembled structure | Saving space |
Save space, convenient transportation, save resources, and environment friendly
|
| Snap design | Firm |
No loosening occurs during use
|
| The packaging bag uses PBAT and PLA biological materials | Degradable |
Environmental friendly, in line with EU export standards
|
| Large hollow structure, PC material | Breathable and good temperature resistance |
Convenient for drying conventional and high-performance filaments.
|
| PC material | Transparent |
Observe the usage of filaments in real time.
|
Product patent:
Utility model (examination); design.
Assembly instructions:

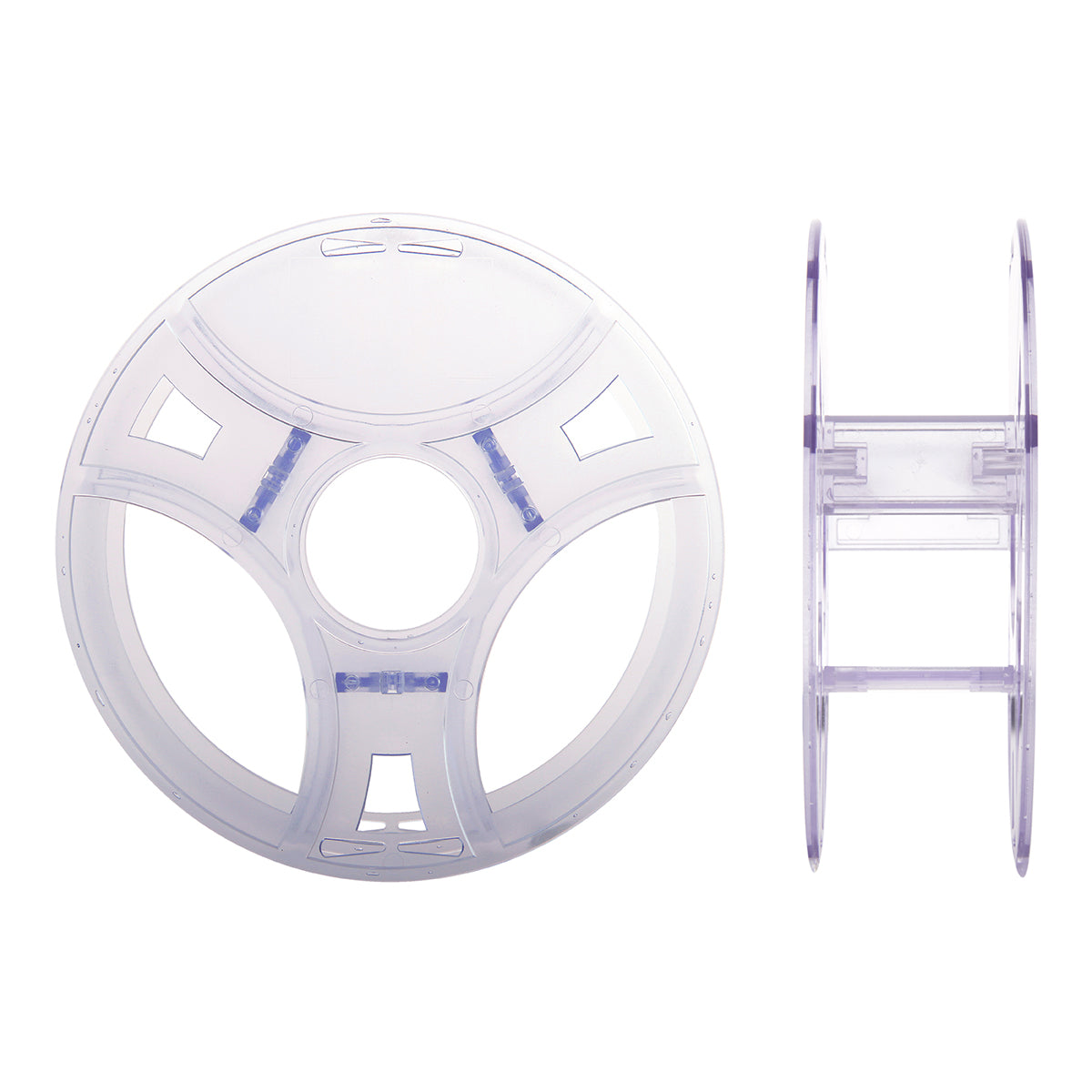

- Distinguish the front and back of the eSpool, the side with grooves and label slots is the front side, and the smooth side is the back side.

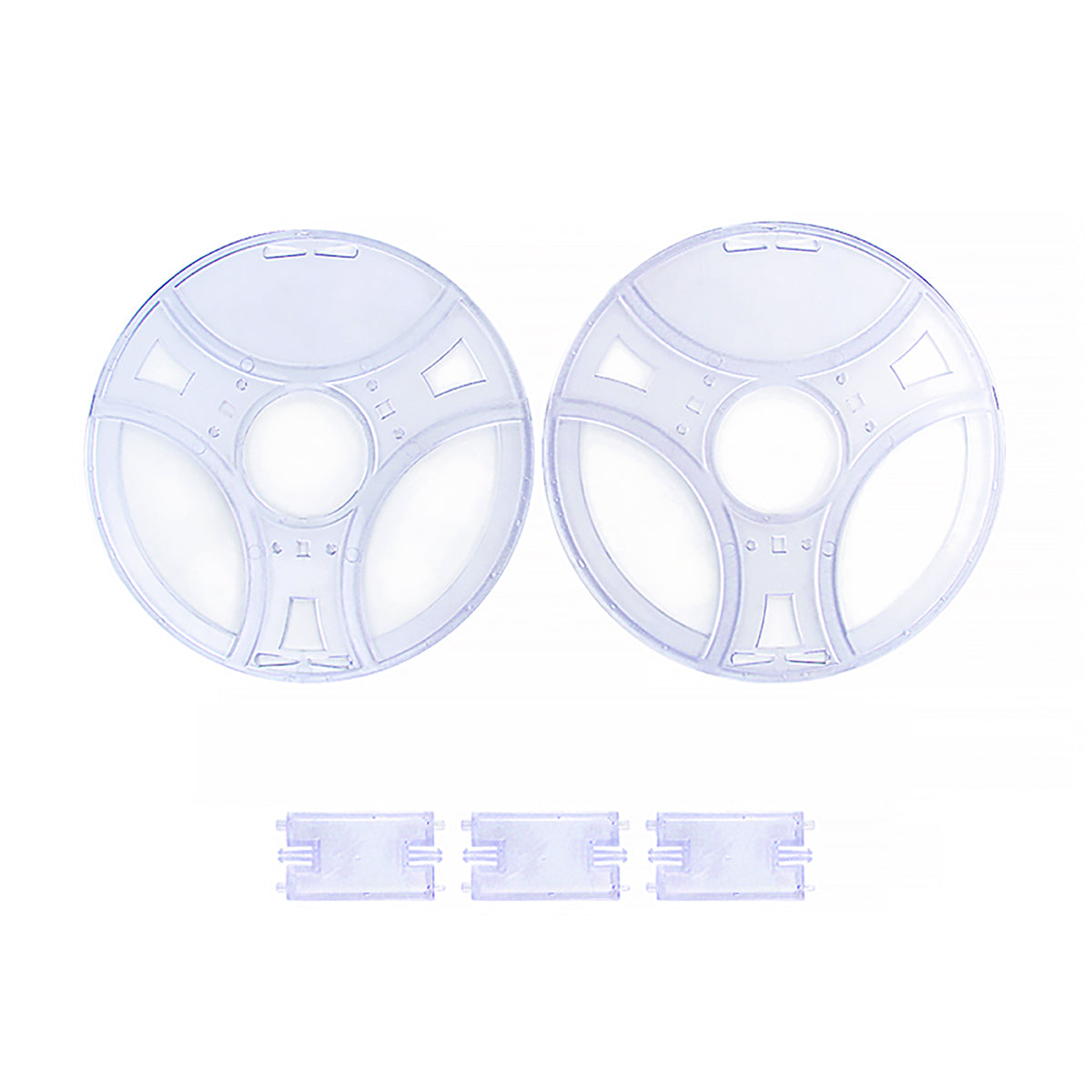

- Align the 3 tabs of the small piece with the fixing holes and insert them into the back of the disc.

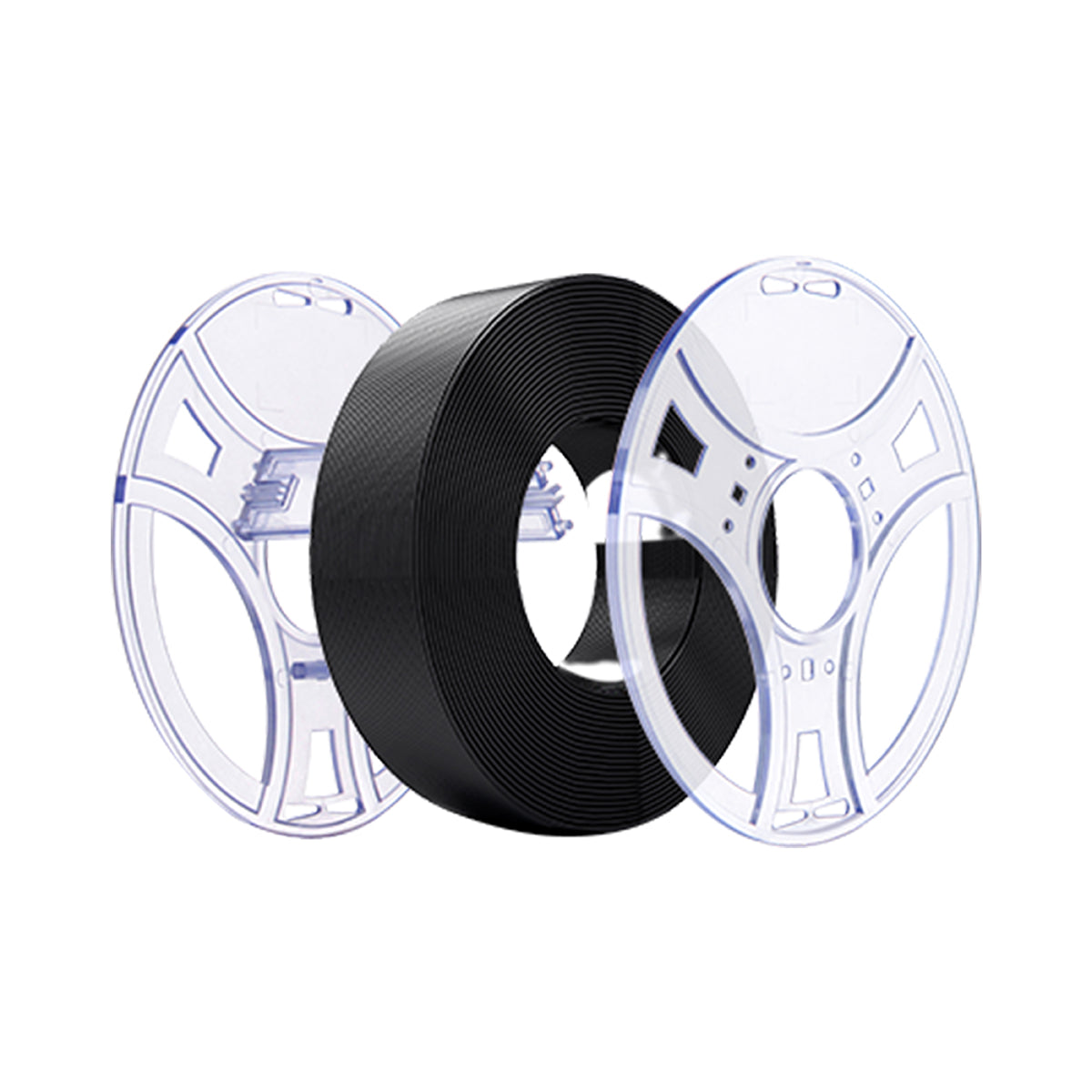

- Put the filament into the eSpool.
- Align the other disc with the fixed pillar and press down.
Assembly instructions: eSpool uses video
FAQ:
|
Questions |
Possible reasons |
Solution |
|
The latch structure is difficult to insert |
Inserting into the wrong side
|
The concave side is the outer side of the spool, and the smooth side is the inner side of the spool. |
|
When changing filaments, the remaining filaments are scattered |
Change filaments without using up |
It is recommended to use half or more before replacement. Before changing the filament, use a band to pass through the hollow part to bind the remaining filaments. |
|
The latch structure is difficult to pull out |
Harder to hold by hand |
Use tools, or use greater force to press and pull out |
NOTE: This is a consumable item that is not under warranty.
Click here if you would like to 3D print the spool (please select Second Generation model)
