Revopoint MIRACO 3D Scanner
Revopoint MIRACO: Standalone 3D Scanner for Small to Large Objects Scanner
AVAILABLE FOR PRE-ORDER ONLY
Contact sales@digitmakers.ca

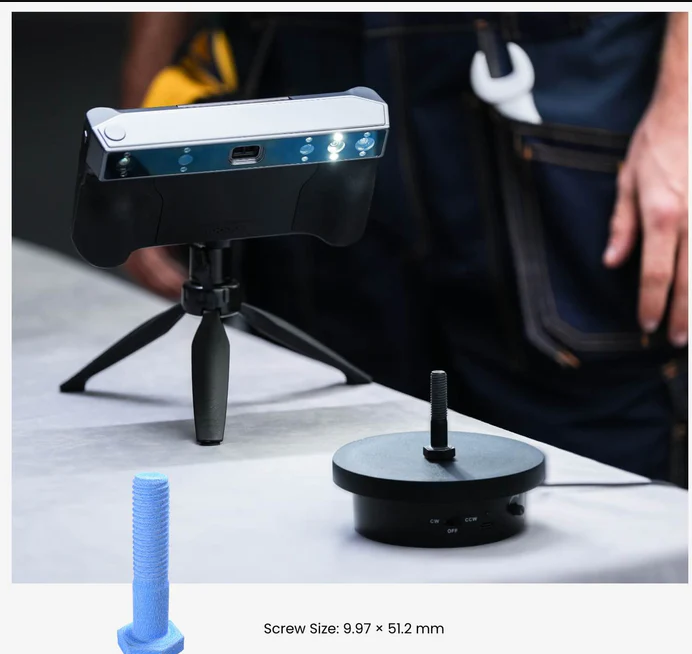

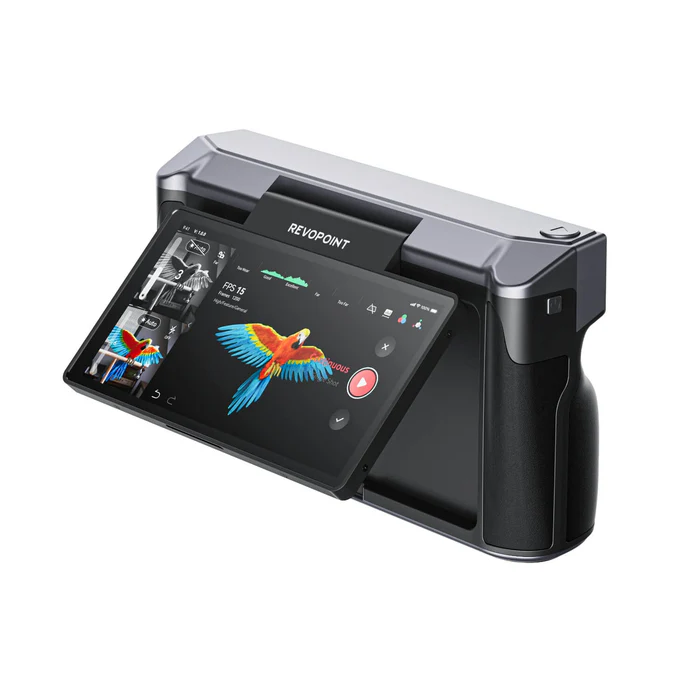

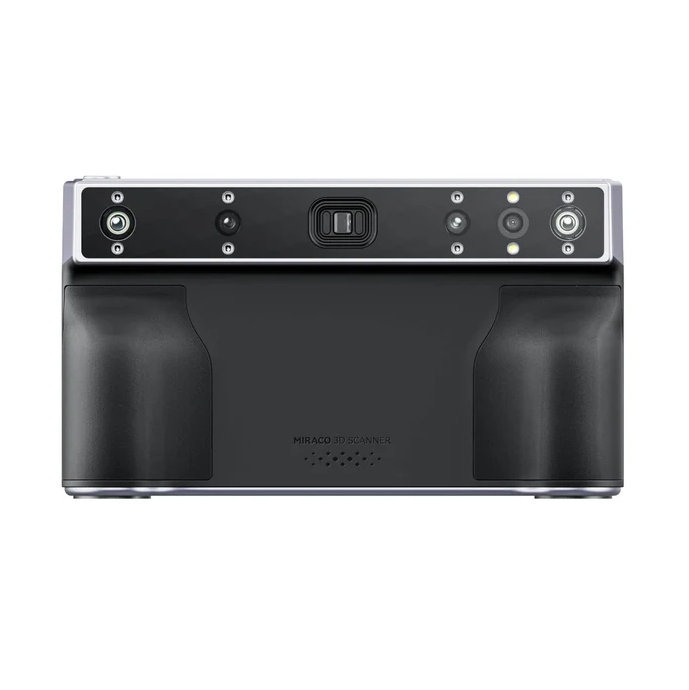

Introducing Revopoint's first standalone 3D scanner, the Revopoint MIRACO. It’s ready to support all your professional scanning needs. Whether you want to capture small or large items, its quad-Depth Camera system can do it all.
Download the Brochure of Revopoint MIRACO 3D Scanner Here
MIRACO'S Key Features
What’s in the Box?
- MIRACO 3D Scanner
- Tripod
- Mini Turntable & Sample Bust
- Turntable Topper
- Turntable Power Cable
- Near-mode
- Calibration Board
- Magic Mat x 2
- Wrist Strap
- 65W Dual USB Type-C Port Power Adapter
- USB Type-C to C Cable (1.8 m)
- Markers
- Certificate &
- Warranty Card
- Scanner Bag
Product Specification
Specifications
| Product Name | Revopoint MIRACO | Technology | Quad-camera Infrared Structured Light |
| Single-frame Accuracy, up to | 0.05 mm | Fused Point Distance | 0.05 mm |
| Single Capture Area at Nearest Distance | 28 x 53 mm at 100 mm | Single Capture Area at Furthest Distance | 975 x 775 mm at 1000 mm |
| Two Capture Modes | Single-shot Mode , Continuous Capture Mode | Scanning Speed，up to | 15 fps |
| Minimum Scan Volume | 10 x 10 x 10 mm | Maxmium Scan Volume | 4000 x 4000 x 4000 mm |
| Working Distance | 100 - 1000 mm | Screen | 6” 2k AMOLED Touch Screen |
| Auxiliary Lighting | Infrared Fill Lights, Flash LEDs | 3D Light Source | Class 1 Infrared Light |
| Storage | 256 GB eMMC | Position Sensors | 9-axis IMU |
| Memory (RAM) | 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro) | RGB Camera Resolution，up to | 48 Megapixels |
| Scanner Weight | 750 g | Dimensions（L x W x H） | 200 x 50 x 110 mm |
| Battery Capacity | Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning | CPU | 8-core CPU，2.4 GHz |
| Tracking Methods | Feature , Marker | Protection Rating | IP45 |
| Connector Type | USB Type-C | Wi-Fi Type | Wi-Fi 6 |
| Compatible Systems | Windows 10/11, macOS | Operating System | Native Android System |
| Special Object Scanning | Use scanning spray for transparent, dark, or highly reflective objects. | Scanning Environment | Indoors and Outdoors |
| Output Formats | PLY, OBJ, and STL | 3D Printing Compatible | Yes |
