Flashforge Guider 3 3D Printer-ETL Certified & Learn By Layers The Full Curriculum Bundle

This bundle consists the following products:

1. Flashforge Guider 3 3D Printer-ETL Certified
2. Learn By Layers the full curriculum for FlashForge 3D printers

3D Printer:

FASTER SPEED AND BETTER QUALITY

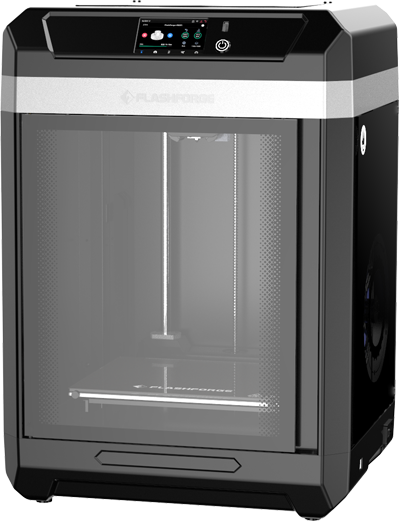

As a new generation of lightweight 3D printer, Guider 3 has characteristics such as larger print space ratio and convenient nozzle replacement. Equipped with the dual build plate options, quick-disassembly nozzle, HEPA 13 air filter, remote monitoring and other functions, it provides intelligent and convenient printing experience for education, small enterprises and individual users, making it a cost-effective choice for small batch production applications.

The lightweight equipment and the powerful production management system ensure 24/7 stable and continuous printing during the production and development process, making it suitable for multi-scenario applications.

Power Loss Recovery System
It can save the printing state in the event of an unexpected power failure and continue printing after the power is restored.

Integrated Equipment Management System
Our FlashPrint 5 slicing software enables multi-machine joint control and integrated device management in small batch production.

Real-time Monitoring of the Printing Process
With the camera equipped, the printing process and status can be monitored in real time easily through FlashPrint 5 and UI interfaces.

Open Material System
The 320℃ high-temperature extruder is compatible with ABS / PLA / PC / PA / HIPS / ASA / PETG / PA-CF, etc., supports 3rd-party materials, suitable for various applications.

Application Scenarios

Small Studio

Educational Institution

Small laboratory/factory

Main features

Guider 3 is specially designed for small batch production applications. The lightweight and compact machine structure, simple and powerful management system, and fast and efficient delivery capability guarantee continuous small batch manufacturing process in various scenarios, and provide low-cost and simple production methods

Lightweight and Compact Design for Flexible Production Space

The new machine structure design improves the utilization rate of the internal space of the equipment, realizes the expansion of the build volume while making the equipment occupying less space, offering flexible layout of the production line.



Quick replacement within 30s; Uniform 110°C-heating over the whole format, offering better printing effects

Glass platform:

The smooth and flat surface makes it easy to remove models with a shovel or scraper, saving time and efforts.

Flexible steel plate platform:

The removable magnetic platform is easy to bend, which makes it easy to remove large models.

The entire frame adopts aluminum structure, and the enclosure adopts lightweight and durable ABS and acrylic sheets, which realizes the lightweight design from the inside out while ensuring stable printing as well.

Powerful Dual-platform System

Guider 3 offers two different platform options: glass platform and flexible steel plate platform. Thus, users can make personalized choices according to their needs when printing different filaments, which makes it suitable for diversified printing scenes.



Fast and Efficient Delivery Capacity

CoreXY Structure for Rapid Production

Guider 3 contributes to efficient workflow and responds to the rapid delivery demand of customized market; It adopts the smoother CoreXY motion structure, supports high-speed and low-noise printing, which saves the printing time, ensures stable printing, and brings efficient printing experience.





Simple and Worry-free

Operation Process

More Convenient Upgraded Leveling System
As the first step to start printing, leveling is crucial to the success and quality of printing. Guider 3 optimizes the auxiliary leveling and automatic leveling system to guarantee your leveling operation in all directions.
The adopted high-sensitivity and inductive proximity sensor detects and saves the initial flatness data of the horizontal platform, and intelligently compensates the platform height through Z-axis during the printing process to realize automatic leveling.

Upgraded Extruder Structure,

Quick-release Nozzle
Suitable for various filaments, the double-gear extrusion structure design increases the filament feeding force by 150% and causes less clogging issues, not inferior at all for various application requirements.
The quick-release nozzle, with multiple diameter options, is easy to replace and maintain, and can meet various use requirements.

  Self-equipped Maintenance Assistant

The equipped maintenance assistant provides solutions to common printing problems, saves communication time and realizes efficient maintenance.

Ensure an Environmentally Friendly, Low-Consumption, and Safe Working Environment



Air Filtration:

HEPA air filter system can effectively filter the dust, odor and particles generated during the printing process, thus ensuring an environment-friendly and safe working environment.

Sleep Mode:

If the equipment is not in use for a long time, the equipment will automatically enter the sleep mode, and then the screen goes black and lights are off, ensuring low energy consumption during night operations.

Auto Shut-Down:

After finishing printing, the equipment will automatically shut down, realizing unattended, energy-saving and safer operation.

Filament Detection:

Guider 3 is equipped with a filament detection sensor to detect the abnormal state of filaments. If the filament is used up or clogged, the equipment will automatically stop and remind you of related problems, which can effectively prevent the damage of the printed part or nozzle, save electricity and avoid material waste. When the filament is used up, printing can be resumed after the problem is solved.

Curriculum:

This curriculum includes the beginners, intermediate and advanced lesson packs and is aligned to FlashForge 3D printers with instructions on how to use the FlashPrint software when slicing models ready to be 3D printed.

NOTE: This curriculum collaborate for all 3D printers

In this combined pack you will get all the lessons;

• Lesson 1 – An Introduction to 3D Printing
• Lesson 2 – The 3D Printing process
• Lesson 3 – Create a model to 3D Print
• Lesson 4 – Developing modelling skills
• Lesson 5 – 3D Printing Design challenge
• Lesson 6 – Basic materials and slicing
• Lesson 7 – End of course test
• Lesson 8 – 3D Printing in our society
• Lesson 9 – Different types of 3D Printers
• Lesson 10 – Introduction to parametric 3D modelling
• Lesson 11 – Developing CAD skills
• Lesson 12 – Intermediate Design Challenge
• Lesson 13 – Intermediate slicing and materials
• Lesson 14 – Customised slicing
• Lesson 15 – End of course assessment
• Lesson 16 – 3D printing and manufacturing
• Lesson 17 – Sustainability and 3D printing
• Lesson 18 – Advanced parametric CAD modelling skills
• Lesson 19 – Advanced Design skills – Model a smart phone case
• Lesson 20 – Advanced Design challenge
• Lesson 21 – Advanced assessment

This version of the curriculum uses TinkerCAD for the beginner’s lessons and Fusion 360 for the Intermediate and Advanced lessons. The slicing lessons use FlashPrint by Flashforge. All the software is free to download and use.

All resources are fully downloadable. To get a feel for the format of the lesson please download the free lesson. The curriculum teaches students how 3D printers work and where they are used in industry and society. The main focus of the curriculum is to teach students how to design their own designs for 3D printing. There is also a strong focus on core stem principles throughout the lesson packs and the curriculum is aligned to national education standards.

Each lesson has step-by-step tutorials on how to design models using TinkerCAD and Fusion 360 along with downloadable video tutorials demonstrating the key skills needed when learning 3D CAD. Every lesson comes with teaching PDF slides,  printable worksheets to complete in class, along with homework tasks and answer sheets. To preview what’s in each lesson, visit the lesson page and click on each lesson and underneath the main image there are previews of the curriculum content. Note this version of the curriculum is non-editable.

Learnbylayers is trusted by schools across the world with over 300,000 students learning from our curriculum. All types of schools are using the lessons, from public-funded to private independent schools students are embracing 3D printing and designing their own models using our ready to teach curriculum.

Parameters:

• Extruder Quantity: 1
• Printing Precision: ±0.15mm or 0.002mm/mm
• Positioning Accuracy: X/Y-axis 0.011 mm; Z-axis 0.0025 mm
• Layer Thickness: 0.05 ~ 0.4 mm
• Build Volume: 300 x 250 x 340mm
• Nozzle Diameter: 0.4 (0.4/0.6/0.8)mm
• Nozzle Type: Stainless steel nozzle
• Printing Speed: 10 ~ 250mm/s
• Maximum Extruder Temperature: 320 ℃
• Maximum Platform Temperature: 110 ℃
• Supported FilamentABS / PLA / PC / PA / HIPS / ASA / PETG / PA-CF / PLA-CF / PETG-CF / PETG-GF
• Power Supply: AC100-240V / DC24V / 20.8A, 650W
• Device Size: 496(L) * 436(W) * 696(H) mm
• Packaging Size: 585(L) * 530(W) * 760(H) mm
• Slicing Software: Flashprint
• Input / Output File Format: Input: 3MF/ STL / OBJ / FPP / BMP / PNG / JPG / JPEG File;  Output: GX / G File / gcode
• Printing Connection: USB Disk / Ethernet / Wi-Fi

• Certification: CE / FCC / RoHS
• Working Temperature: 15-30℃
• Compatible Operating System: Win xp / Vista / 7 / 8 / 10、Mac OS
• Compatible Slicing Software: Slic3r / Cura (Need to set up)
• Touch LCD Screen: 4.3-inch
• Printing Bed: Flexible steel plate platform / Glass platform
• Close Design ✓
• Auxiliary Leveling ✓
• Filament Running Out Reminding ✓
• Replaceable Print Bed ✓
• Ultra Silence Design ✓
• Continue Last Printing when ✓
• Power Off ✓
• Remote Camera Watching ✓
• Wireless Wi-Fi ✓
• Ethernet ✓
• USB Stick Interface ✓
• Air Filter Net ✓
• Cloud ✓
