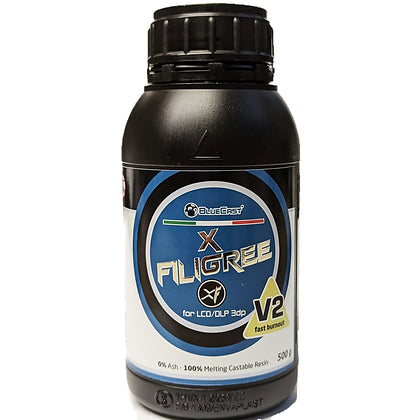

BlueCast X-FILIGREE V2

X-Filigree® V2 improved the performance of the previous version. The new resin has been improved to meet the needs of Middle Eastern designers. Thanks to the waxy polymer it ensures perfect printing properties with sharp details, excellent dimensional stability in time without shrinkage . X-filigree® V2 was developed by BLueCast R&D in order to allow perfect filigree casting results with any kind of investments and burnout cycles. Standard wax burnout (12 hrs), Fast burnout ( 6 hrs), Ultra fast burnout (2 hrs).

BLUECAST X-Filigree®

Please read and understand these Guidelines before opening and using XFiligree resin.

 PRODUCT FEATURES

- The first low temperature castable resin specifically developed for print and casting extreme filigree designs.

- Perfect casting results with any kind of investments and burnout cycles. Standard wax burnout (12 hrs), Fast burnout ( 6 hrs), Ultra fast burnout (2 hrs).

- Extreme accuracy and weight repeatability.

- Perfect printing properties with sharp details: suitable for jewelry with micropave and filigree

- Create lighter jewelry with perfect accurancy  - No bleeding issue also on LCD machines.

- Excellent dimensional stability in time. No shrinkage.

- Low viscosity even at low temperature (easier to clean, easier to get back from patterns).  - Strong adhesion to platform, no need to primer.

- Toxic and carcinogenic component free, Low fumes emission during burnout. Very low VOC and negligible smell.

- Low fumes emission during burnout

QUICK START GUIDE FOR LCD PRINTERS

Before use X-Filigree please read these instructions with attention.  Following information are suitable only for X-Filigree resin and will not apply to other BlueCast resins.

BlueCast X-Filigree resin is fully compatible with the new monochromatic LCD Generation and DLP printers.

Main features:

• Create Jewelry with unmatched precision
• No bleeding, zero shrinkage, low viscosity even at low temperatures
• Ideal printing properties suitable for light jewelry with sharp details, micro-pave, highly detailed parts and filigree
• Strong platform adhesion

On old RGB LCD machines the exposure times are much more longer than standard resins. With some COB LED machines the resin may not work.

In order to get the maximum details use of HD FEP or No-FEP are strongly suggested. A bad quality FEP compromise the resin printability.

Before run the Z-Axis calibration, please check if your build platform is planar. The colored platform coating like the one of the old Anycubic Photon or Elegoo Mars inhibits the sticking of the castable resins. To fix this machine issues you can sand the build platform with 150/200 grade sandpaper.

Perform z-axis calibration following the manufacturer's instructions.

Before use we suggest to heat the resin by microwave ovens (NEVER OVER 30 SECONDS), ultrasonic cleaner, hot air, etc.

Before pour the resin into the resin tank shake the bottle for one minute.

For a correct debubbling let the resin rest in to the resin tank for 5 minutes before start the print. To speed up the operations you can also filter the resin in order to remove the air bubbles or or vacuum the opened bottle.

Not filter the resin after each print and not heating the resin before each print may lead to printing failures. Do not store the resin in to the tank. Please remove the resin from printer tank, filter it and store in to the original bottle.

PLEASE NOTE THE EXPOSURE TIME CAN CHANGE BY 30% IN ACCORDING TO THE MANUFACTURER LED CALIBRATION, TO THE USED FEP AND TO THE PRINTER EFFICIENCY

PRINTING SETTINGS

We don’t provide official after sales service for the machines not listed below. The settings are specifically developed for Chitubox slicer.

ANYCUBIC MONO

Layer Height: 0.05 mm

Bottom Layer Count: 15 n

Exposure Time: 7 s

Bottom Exposure Time: 25 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 50 mm/min ® 3

Lifting Speed: 100mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4

ANYCUBIC MONO SE

Layer Height: 0.03 mm

Bottom Layer Count: 10 n

Exposure Time: 5.2 s

Bottom Exposure Time: 15 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 100mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4

ANYCUBIC MONO X

Layer Height: 0.03 mm

Bottom Layer Count: 15 n

Exposure Time: 8.5 s

Bottom Exposure Time: 20 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 5 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 100 mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4

ANYCUBIC MONO 4K

Layer Height: 0.03 mm

Bottom Layer Count: 15 n

Exposure Time: 7 s

Bottom Exposure Time: 20 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 5 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 100 mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4 ®

ANYCUBIC PHOTON S

Layer Height: 0.05 mm

Bottom Layer Count: 12 n

Exposure Time: 19 s

Bottom Exposure Time: 45 s

Light-off Delay: 8 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 70 mm/min

Lifting Speed: 70 mm/min

Retract Speed: 100 mm/min

Antialiasing: OFF

PHROZEN SONIC MINI 4K

Layer Height: 0.035 mm

Bottom Layer Count: 25 n

Exposure Time: 6.5 s

Bottom Exposure Time: 12 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 50 mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4

PHROZEN SONIC MINI 8K

Layer Height: 0.030 mm

Bottom Layer Count: 25 n

Exposure Time: 8 s

Bottom Exposure Time: 20 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 50 mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4

PHROZEN SONIC 4K ® 5

Layer Height: 0.035 mm

Bottom Layer Count: 25 n

Exposure Time: 6.0 s

Bottom Exposure Time: 12 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 100 mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4

PHROZEN SONIC 4K XL

Layer Height: 0.05 mm

Bottom Layer Count: 25 n

Exposure Time: 5.5 s

Bottom Exposure Time: 20 s

Light-off Delay: 7 s

Bottom light-off delay: 13 s

Bottom Lift Distance: 5 mm

Lifting Distance: 4 mm

Bottom Lift Speed: 50 mm/min

Lifting Speed: 50 mm/min

Retract Speed: 100mm/min

Antialiasing: ON

AA Level: 8

Gray Level: 4
