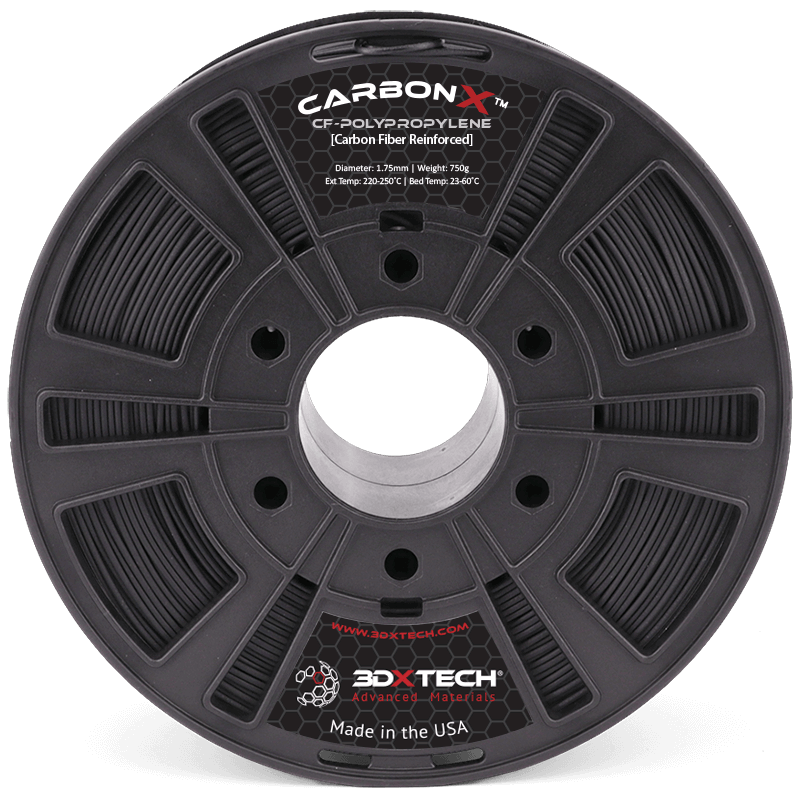

CarbonX™ PP+CF - 1.75mm 750g

Product Description
$82.00
Maximum quantity available reached.

CarbonX™ PP+CF is made using a specialty formulated PP copolymer and reinforced with premium high-modulus carbon fiber. This material offers ease of printing, strength & stiffness, excellent dimensional stability, and an amazing surface finish.

CarbonX™ PP+CF is made using a specialty formulated polypropylene copolymer reinforced with high-modulus chopped carbon fiber. This filament is based on a patent-pending formulation that offers improved thermal properties and low shrinkage/warp compared to competitive PP-based compounds.

The reels contain 750g of filament, but based on the very low density of PP+CF, this is the same amount of filament that would typically be found on a 1kg reel of ABS. This allows you to print light-weight and exceptionally rigid parts for medical, drones, watercraft, automotive, or any application which would benefit from a light weight, stiff, chemically resistant material.



Print Recommendations

Extruder Temp
220-250°C

Bed Temp
23-60°C

Heated Chamber
Not required

Nozzle Specs
0.4mm diameter minimum
Hardened Steel Nozzle

Layer Height
0.25mm or higher

Drying Specs
4 Hours at 65°C



Benefits of PP+CF Include:

  • Excellent resistance against a huge variety of chemicals
  • Low density and weight
  • Easier to print than most flexible materials and suitable for use with practically any 3D printer
  • Typically does not absorb moisture, no drying required!
  • High strength and stiffness

Chemical Resistance of PP+CF

Since properties can change depending on print environment and 3D model geometry and/or surface area, it is always required to do your own testing, but Polypropylene is famous for its chemical resistances to a huge range of environments including:

  • Acids: Acetic, Boric, Hydrochloric, Phosphoric, Stearic, Sulfuric, Uric
  • Bases: Hydrocides of Ammonium, Barium, Calcium, Magnesium, Potassium, Sodium
  • Solvents: Acetone, Ethanol, MEK, Phenol (10%), Water

Technical Data Sheet



What Is It?

Fibers 5-10 micrometers wide made of carbon. The fibers are aligned following the axis of the material.

This, along with their physical makeup, are what give this material its excellent properties.

What Does It Do?

Carbon Fibers demonstrate a lot of desirable material properties:

  • High stiffness
  • High tensile strength
  • High heat tolerance
  • High chemical resistance
  • Low weight
  • Low thermal expansion

How Does It Work?

Reinforcing plastic with carbon fibers produces a 3D printing filament which exhibits the best properties of both the carbon fibers and the plastic of choice.

What Is It Good For?

Ideal for any applications which require light weight and rigidity.

Carbon fiber reinforced parts, designed to use less material and save weight, is extremely popular in aerospace, civil engineering, the military, and motorsports.

Sku: CARBONX-PP-CF-750g
Vendor: 3DXTECH
