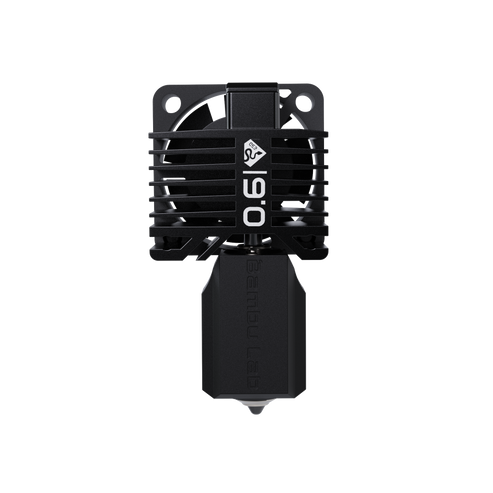

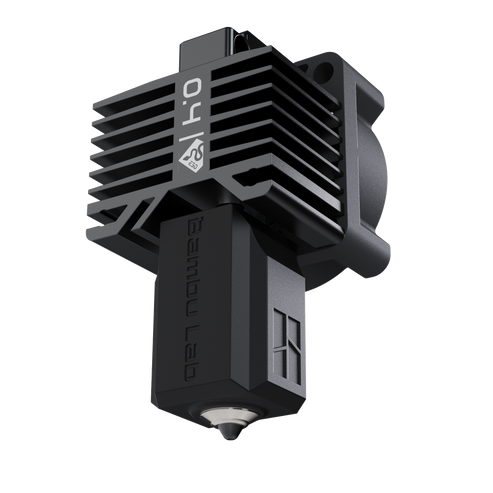

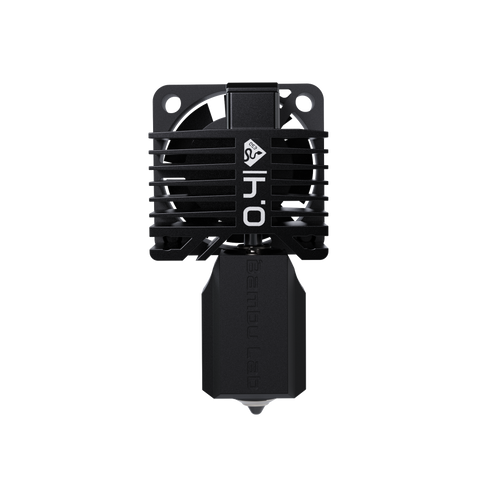

E3D DiamondBack Complete HotEnd for Bambu Lab X1/P1

These premium HotEnds are an official collaboration between E3D, DiamondBack, and Bambu Lab - bringing you the most extreme HotEnd solution to date. E3D are very proud to be the only officially approved manufacturer of aftermarket Bambu Lab HotEnds.

Why Choose Diamond?

The rapid development of fibre, metal and ceramic filaments has increased the need for abrasion-resistant nozzles. Compared with all the nozzle options on the market, DiamondBack’s diamonds deliver unmatched wear-resistance and versatility.

Smooth and Hard. Unlock extreme wear resistance on your Bambu Lab printer thanks to DiamondBack’s Polycrystalline Diamond (PCD) tips. These diamonds are composed of thousands of tiny diamond crystals with a proprietary binder that forms a matrix of crystals joined with diamond-to-diamond bonds. They retain the hardness properties of diamond whilst reducing the inherent brittleness of a single-crystal diamond, making them a fantastic choice for printing with engineering grade metal and ceramic-filled filaments.

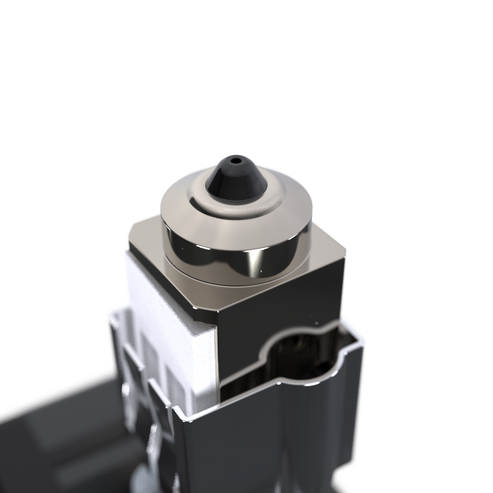

Precision Printing. DiamondBack nozzles rely on a solid diamond tip to improve precision 3D printing. The tip is not a diamond coating, but rather a solid diamond insert made from the hardest material in the world.

Longevity. The PCD used in these Bambu Lab HotEnds significantly extends nozzle life. It provides best-in-class thermal conductivity which improves interlayer adhesion for stronger prints, and the low coefficient of friction combined with a polished tip creates super smooth top layers with an ironing-like effect.

Effortless Upgrade. These HotEnds are a drop-in replacement for your stock Bambu Lab Hotend, no adjustment to the mount or part cooling is required. Maintain your stock Bambu Lab print profiles as they’re a perfect match.

Compatibility. These kits come in multiple variants with matching connectors for Bambu Lab's different printer models.

Some filled materials contain particles that are close to, if not larger than, some of the smaller industry standard nozzle sizes, including up to 0.4mm. Attempting to print such materials through these nozzle sizes significantly increases the risk a jam. Please check your filament manufacturer’s datasheet for recommended minimum nozzle orifice diameter to ensure that the nozzle/hotend you choose is suitable for your use case.

Please note:

• Whilst these Hotends are rated to 320°C this only applies to the X1E printer. The X1C, P1P, and P1S remain temperature limited to 300°C.

• Some filled materials contain particles close to, if not larger than, some of the smaller industry standard nozzle sizes, including up to 0.4mm. Attempting to print such materials through these nozzle sizes significantly increases the risk a jam. Please check your filament manufacturer’s datasheet for recommended minimum nozzle orifice diameter to ensure that the nozzle/hotend you choose is suitable for your use case

⚠️ WARNING: This product can expose you to chemicals including Mineral Oils, which is known to the State of California to cause cancer, and Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
