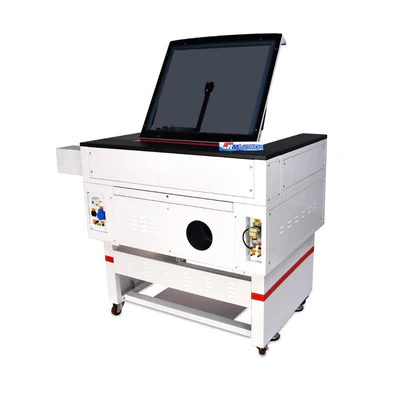

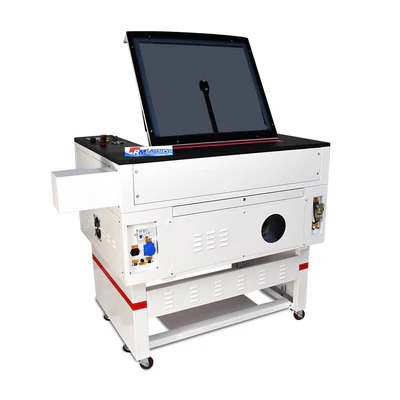

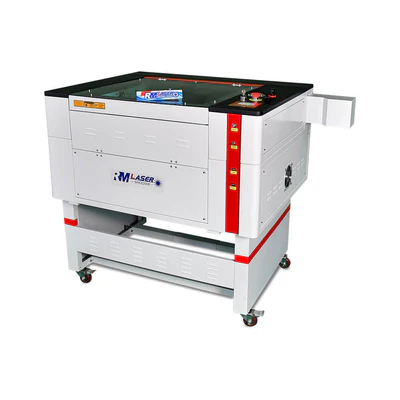

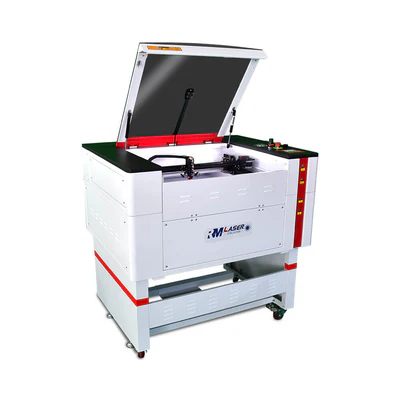

RM Laser Canada J7 - 90W (CSA Certified)

RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
RM Laser Canada J7 - 90W (CSA Certified)
Contact Us

Speed and Precision

  • High-speed motors, up to 800mm/s
  • Up to 2.5x faster than standard stepper motors
  • Higher wattage for cutting thick materials
  • Up to 1,000 DPI

Extra Features

  • Dual-stage air assist: Different air pressures for engraving vs cutting
  • Dual Red-Dot focus, Red Dot Pointer, fullly lit LED interior.
  • Built in Camera
  • Smart Controller turns air and exhaust on/off with each job
  • Great for production runs
  • Lots of power for high-efficiency cutting
  • 90w tube cuts up to 3/4" wood ro 1" acrylic
  • Works with tumblers and curved items (Rotary may be required)
  • Easy controls for smooth use
  • Hybrid-servo motors for lightening fast processing times
  • 1GB of storage for big files
  • Optional CSA Electrical certification ( we are one of the only ones in the industry that offer this!)

Durability

  • Durable gantry ensures high-quality engravings
  • Industrial-grade chiller included
  • Water Alarm + other safety features

All-enclosed Design

  • 28" wide work area
  • Motorized Z-Table fits up to 10.23" tall parts
  • Tinted tempered glass window



What's Included?

Included Required Optional
Laser + Cart Computer Rotary
Exhuast Fan Wall vent for ventilation Air smoke purifier
Exhaust Hose Air compressor 1" lens
Lightburn Pro Coolant/Water for chiller 1.5" lens
S&A CW5000 Chiller 2.5" lens
Tool Kit 4" lens
Honeycomb and Knife bed
2" laser head/lens
Shipping/Delivery



Technical Specs

Engraving / Working Area 27.56″ x 19.68″ x 10.23″ (700 mm x 500 mm x 260mm)
Max Part Size Pass through closed: 28.9″ x 22.9″ x 10.23″ Pass through open: 28.9″ x ∞” x 1.8″
Laser Wattage 90 Watt
Controller Memory Capacity Multiple file storage up to 1GB
Laser Source Sealed RECI Co2 glass tube, tested to pass quality control. Average lifespan is 5000-10,000 working hours
Electrical Requirements Standard 120v AC 60 HZ Single phase, dedicated 20 Amp circuit
Air Assist Dual air assist control, air compressor required 2 gallon or larger
Machine Size With cart 56.37" x 37" x 45.27"/ With out cart 56.37" x 37" x 24.8" (L x W x H) 370 Lbs / 168 Kgs
Software LightbBurn Pro software included for use up to three computers, import any graphics file. Compatible with Windows, Mac and Linux
Training Two hour remote setup training included, or local setup/training if within local delivery radius
Red Dot Pointer Shows where laser will fire, allows for " dry run" and for easy origin positioning
Camera Optional camera allows you to see materials on the laser work bed via LightBurn for alternate posistioning
Operating Modes Optimized raster, vector or combined modes
Easy Adjustable Home When items are not easily placed at the top corner of the laser, you can set a new home/origin position
Motion Sytem 2 Phase motors with speeds up to 800mm/s
Resolution Up to 1000 Dpi with appropriate lens
Safety Open door protection with By-pass key switch, water protection system (low water/ over heat)
Focus System Dual red-dot focus system, which allows for quick and easy focus
Water Chiller S&A CW5000 Chiler
Ventilation 400 cfm 6" exhaust fan + 16' of 6" flexible hose, 6" exhuast port located lower rear center of laser.
Motorized bed Includes a removable honeycomb bed w/ locating pins & solid aluminum blade/ knife style bed
Laser Heads 2" head/lens included, optional ( 1.5", 2.5" and 4" available )
Support Free lifetime Canadian based support, with a average response time of 10 minutes Monday-Sunday 7am-9pm EST



 Material Chart

Material Engrave Cut
Wood ✓ ✓
MDF ✓ ✓
Plywood ✓ ✓
Acrylic ✓ ✓
Wood Veneer ✓ ✓
Pressboard ✓ ✓
Melamine ✓ ✓
Coated Metals ✓ ✕
Glass ✓ ✕
Leather/Leatherette ✓ ✓
Cloth ✓ ✓
Textiles ✓ ✓
Marble ✓ ✕
Ceramic ✓ ✕
Slate/Stone ✓ ✕
Mother Of Pearl ✓ ✓
Tile ✓ ✕
Corian ✓ ✓
Laser Grade Plastic ✓ ✓
Delrin ✓ ✓
Rubber ✓ ✓
Mylar ✓ ✓
Fiberglass ✓ ✓
Cork ✓ ✓
Anodized Metal ✓ ✕
Painted Metals ✓ ✕
Stainless Steel * ✕
Brass * ✕
Aluminum * ✕
Bare Metals * ✕

* Bare Metals require a spray coating , Co2 lasers will not directly mark bare metal products.


SKU: RMLSR-J7
