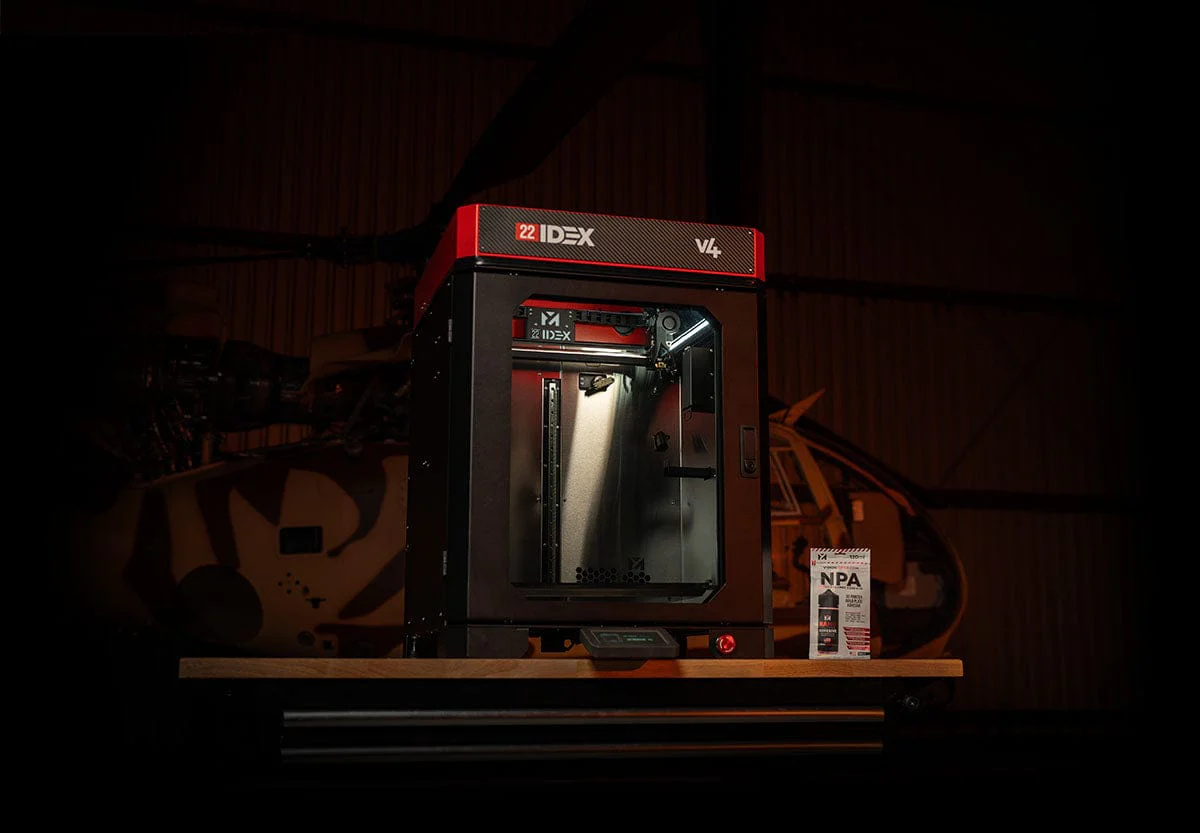

Vision Miner 22 IDEX V4 ETL Certified

Vision Miner 22 IDEX V4 ETL Certified
Vision Miner 22 IDEX V4 ETL Certified
Contact Us

Why v4?

The 22 IDEX v4 takes the proven v4 foundation and adds usability, security/compliance, and future expandability—without pushing you into a six-figure ecosystem or proprietary materials.

Open Material System

Not locked to vendor specific filaments

True IDEX Printing

for multi-material, soluble supports, duplication, and mirror modes—effectively two printers in one.

Improved Useability

100+ micro-adjustments to improve the overall user experience.

Improved Thermals

Higher temperatures for reliable 3D printing of ultrapolymers

WHAT'S NEW?

New Look, Same Workhorse

We've gathered all the input from the last several years - from our shop, our customers, the field, all over the world, and made a series of upgrades to the v4:

Thermal
Architecture

Triple-wall/IR-reflective insulation and dual-pane, fully-sealed door for faster heat-up, tighter chamber stability, and fewer lifted corners.

Safety &
Air Quality

Integrated HEPA + Carbon filtration with internal recirculation. Keeps VOCs/particles down and reduces facility integration costs while still supporting external ventilation

Designed for
Field Use

Lockable doors and lids allow you to keep your prints safe from intrusion while the mounting points allow you to deploy the machine anywhere in the world.

Integrated
Touchscreen

Make quick changes on the fly without the need to return to your controller - extra convenience with proximity on the shop floor.

We use our own machinery in our service bureau every day -- taking our own experiences, along with that of our customers, ranging from Fortune 500 companies to independent fabrication shops, and made the 22 IDEX better than ever before.

HIGH-PERFORMANCE MATERIALS,
STRAIGHT OUT OF THE BOX

STRONG parts. Functional Polymers.

Parts you can sell, materials you can print jigs and fixtures from, vacuum molds, press brake tooling - if it can be 3D printed, there's a good chance you can do all that and more, on the 22 IDEX v4.

Aerospace-grade replacement parts, tooling, fixtures

Autoclavable, sterilizable tools for medical applications

Rigid, chemical & radiation resistant polymer composites

High-temp, metal-replacement thermoplastics

Under-the-hood in race cars, to satellites in space - whether you're a one-man operation, or a 20,000+ employee aerospace company, this machine can get your job done.

HARDWARE FOR ADVANCED USERS

500ºC Nozzles

Independent Dual-Extruder Hotends

Maximum temperatures give you the ability to print any Performance Thermoplastic on the market, from PLA to PEEK, PEKK, ULTEM™ , PPSU, and more.

Unlike other machines, BOTH hotends reach the full 500ºC, enabling multi-material, duplication mode, mirror mode, and full use of supports - soluble and otherwise.

200ºC Build Platform

True Self-Leveling Build Platform

Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface.

On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.

100ºC+ Chamber

Actively Heated Chamber

Performance thermoplastics are next to impossible without a heated build environment - the 22 IDEX heats up to 100ºC+, enabling functional high-temp materials with solid mechanical properties. Dual chamber thermistors monitor the temperature, with auxiliary convection fans ensuring an evenly-heated build volume.

Unlimited Materials

1.75mm Open-Filament FFF/FDM System

Not locked into proprietary materials, limited nozzle temperatures, or overly-expensive branded filaments... we carry the best materials we can find, at Vision Miner, from several sources -- but you're ALWAYS welcome to use your own. FAR 25.853, UL94 V0 rated materials, and more.

MADE FOR ENGINEERING MATERIALS

USE THE WIDEST RANGE OF PERFORMANCE THERMOPLASTICS

WHAT FILAMENTS CAN YOU PRINT ON THE 22 IDEX?

Basically all of them. We're talking about functional polymers -- whether you're focused on Carbon Fiber Nylons, ULTEM™ 9085, or Glass fiber PEEK, the 22 IDEX v4 has you covered, with virtually unlimited material options:

Polymer Class Max Temp Amorphous Semi-Crystalline
Ultra-Performance Polymers 400°C+ PEKK-APEI (ULTEM™ 1010 & 9085)TPI PEEKPEKK-CPAEK (AM200)
High-Performance Polymers 330°C+ PEIPESPSUPESU PVDFPPSPA9T
Engineering-Grade Polymers 220°C+ PC (Polycarbonate)TPUPPE/PSPC/ABS NylonsPA12PA6POM
Commodity-Grade Polymers 180°C+ ABSASAHIPSPETG OBCPPPLAPCTG



INDUSTRY-LEADING FEATURES

FUME EXTRACTION - CLEAN AIR

In production, “a little filter” isn’t enough. The 22 IDEX V4 ships with integrated HEPA and active carbon filtration that continuously scrubs the air inside the printer, dramatically reducing particles and odors. For stricter environments, you can still connect 2" hoses to external fume extraction systems and plug the machine right into your existing safety infrastructure.

XY TOOLHEAD - AUTO ALIGNMENT

Our automated XY toolhead alignment eliminates the older style of having to do multiple alignment prints. Pulling from proven, precision practices of the CNC Industry, our Auto Alignment probe takes the guesswork out of the picture with one easy, automated process.

BUILT-IN AUTOMATIC FILAMENT DRYING SYSTEM

The filament on the 22 IDEX is stored inside the chamber while printing -- this means that when using the heated chamber with hygroscopic filaments (read: most filaments), the filament is kept dry, eliminating much of the oozing, blobbing, and poor surface finishes due to moisture.

AUTO SHUTDOWN AND SAFETY SYSTEMS

Safety is paramount, in the workplace and workshop - the printer will automatically shut down if it senses overheating, thermal runaways, or electrical errors. Solid State Relays and quality wires are just a fraction of the safety features designed into the machine, from the ground up.

EVERYTHING YOU NEED IN A 3D PRINTER


500ºC

NOZZLE

200ºC

BUILD PLATE

100ºC+

HEATED CHAMBER

TRIPLE Z-MOTOR
TRUE SELF-LEVELING
DRYS FILAMENT INSIDE
AUTOMATIC X/Y ALIGNMENT


350 x 350 x 450mm

BUILD VOLUME

ALL MATERIALS

PEEK, ULTEM, CF NYLON, +MORE

AMERICAN
SUPPORT

FROM VISION MINER

DUAL INDEPENDENT EXTRUDER
+ BONDTECH LGX EXTRUDERS
+ SLICE ENGINEERING HOTENDS
LINEAR RAILS

DETAILED SPECIFICATIONS

Category Details
Printing Technology Fused Filament Fabrication, or Fused Deposition Modeling (FFF, FDM)
Build Volume

• 350 x 350 x 450 mm

• 13.7 x 13.7 x 17.7 in

• 55,000 cm^3

• 3,356 in^3
Build Platform Material

• High-Temperature Carbon Fiber Build Plate (Included)

• Borosilicate Glass (Included)
Motion System

• Linear Rails

• Ultra Wide 12mm Belts

• High-Temp Stepper Motors

• 6 Independent Axis and 5 DoF

• Silent Trinamic Stepper Drivers

• Quad X/Y-Axis Motors

• Triple Z-Axis Motors

• Self-Squaring X/Y Gantry
Build Platform Leveling

• True Automatic Mechanical Bed Leveling with 3 Z-axis Motors

• Adaptive Multi-Point Mesh Leveling - Customizable to hundreds of points

• Servo-docked leveling sensor
Tool Heads

• LGX Pro High-Temp Dual-Gear Extruders

• Slice Engineering Copperhead Hotends

• Hardened Steel Nozzles, standard

• Filament Runout Sensors
Layer Resolution

• 0.005” (125 micron, all Axis, real-world application - remember, you are using a round nozzle orifice - higher accuracy is achievable)

• 40-500 Micron Standard Layers
Speeds

• Maximum Travel Speed: 500mm/s

• Printing speeds depend on material.

• High Temp: 30-200mm/s
Filament Diameter Standard 1.75mm Filament
Material System Fully Open Material System
Nozzles

Standard E3Dv6 style M6x1 threaded nozzles (Copperhead)Included:

• Hardened Steel 0.4mmAvailable Options:Vision Miner Nozzles
Position Accuracy

Hardware Maximums:

• X/Y: 10 μm

• Z: 7 μm
Safety

• CE Certification (link)

• Auto Shutoff Option

• Overheat & Thermal Runaway Protection

• German-manufactured Wiring

• High-Quality Components
Warranty

• Standard 1-year Limited Warranty

• Premium and Extended Warranties Available
Operating Temperatures • Operating: +64 - 86ºF (+18 - 30ºC)• Storage: +50 - 113ºF (+10 - 45ºC)
Fume Extraction / Filtration

• Built in HEPA + Active Carbon Filtration• Optional Integrated 2" inlet/outlet for external fume extraction (purchased separately)

• Optional HEPA + Active Carbon Filter System (sold separately)
Extruder Temperature 500°C
Build Plate Temperature 200°C
Chamber Temperature 100°C
Active Convection Heating Triple Wall Stainless Steel Insulation
Mainboard Controllers Duet 3, 3HC Expansion Board
Input File Type Standard G-code, RepRap based
Compatible Slicers Any RepRap-Compatible slicer:PrusaSlicerSimplify3DSlic3rOrcaSlicer
Operator Interface

• Complete Web Interface (Duet 3 Web Control)

• Modular, removable Wifi

• Integrated Ethernet

• USB Terminal Connection
Internal Storage 16GB (expandable, micro SD card)
Supported Computer OS Windows, MacOS, Linux, Android, iOS - Control Panel uses standard internet browsers
Power Consumption

• 110V AC, 50/60Hz,

• NEMA 5-15p power cable (Standard USA 110V Plug)For converting to 240V AC, heaters must be swapped for 240V versions, and power supplies can be switched to 240V AC.
Machine Dimensions

Machine Dimensions: 535 x 568 x 739 mm21.6" x 22.36" x 29.09"

Recommended Footprint:1000 x 600 x 1000 mm40"x 24" x 40"

Machine Weight: 200 lbs90.7 kg
Shipping Weight & Dimensions

Export-Compliant Crate

220lbs / 100kg

27"x26"x37" on Pallet

27"x26"x33" Corrugated Cardboard Box
Materials

Any 1.75mm Filament:PEEK, PEKK, CFPEEK, AM200 PAEK, PEI, ULTEM™ 9085, ULTEM™ 1010, PEI Blends, PPSU, PA/CF, Nylon (PA66, PA6, PA12, etc), PC, PC Alloys, PA, ABS, ASA, Carbon Fiber-Filled, Metal-Filled, Glass-Filled, Nylon, PETG, ESD Materials, HIPS, TPU, PLA, PVA, and more

Carbon fiber and glass-filled variants of the above + Various soluble and break-away support materials, 100% Open Material System
Materials / Filament Storage

Integrated Heated Storage:Filament rests inside the heated chamber while printing, preventing moisture uptake, enabling ultra-long print times with hygroscopic polymers.

Filament can be fed from outside machines, for larger spools

LEXAN™ and ULTEM™ are registered trademarks of SABIC Innovative Plastics





SKU: VISIONMNR-22IDEX-V4
