Overview

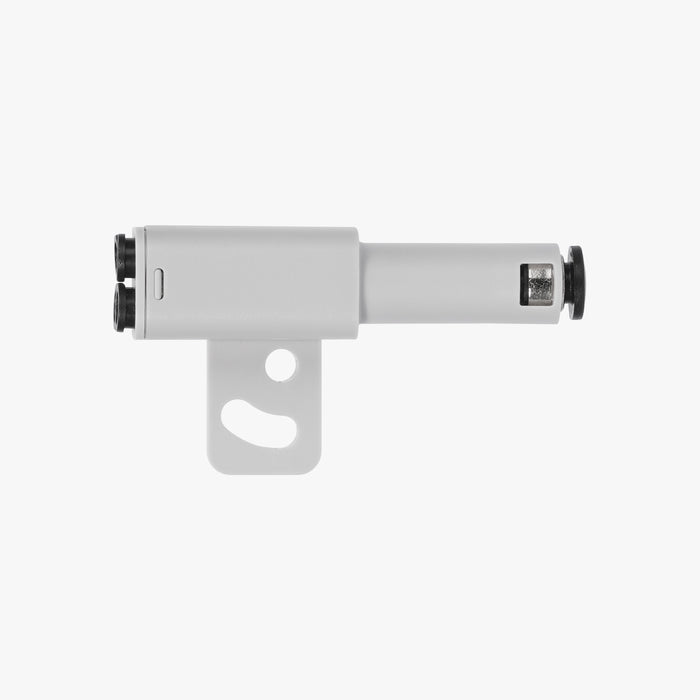

The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments)
It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A, Bambu PET-CF and other brands' carbon-fiber/glass-fiber contained filaments.
Compatibility
X2D/P2S/P1 Series/X1 Series/A2L
H2 Series/P1 Series/X1 Series
In the Box
Bambu 4-in-1 PTFE Adapter *1
Instructions for use
The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.
1. When using AMS:
- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
- Connect the PTFE tube from the buffer output to one of its IN ends. - Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
2. When the AMS is not being used:
- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
- Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
Product Specification
| Color | Black, White | Materials | Plastic, Metal |
| Package weight | 0.03 kg | Package Size | 60*60*30 mm |
