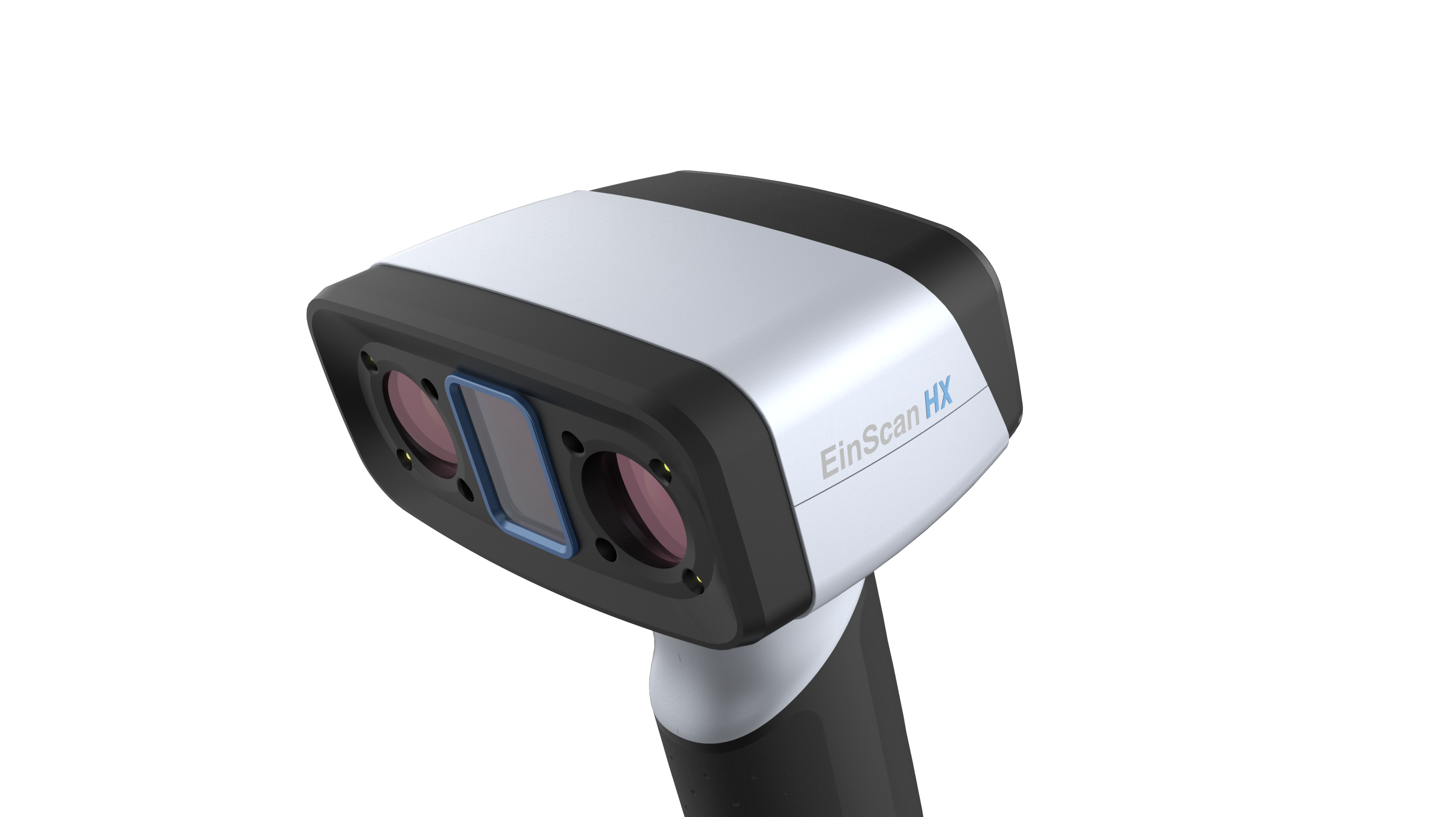

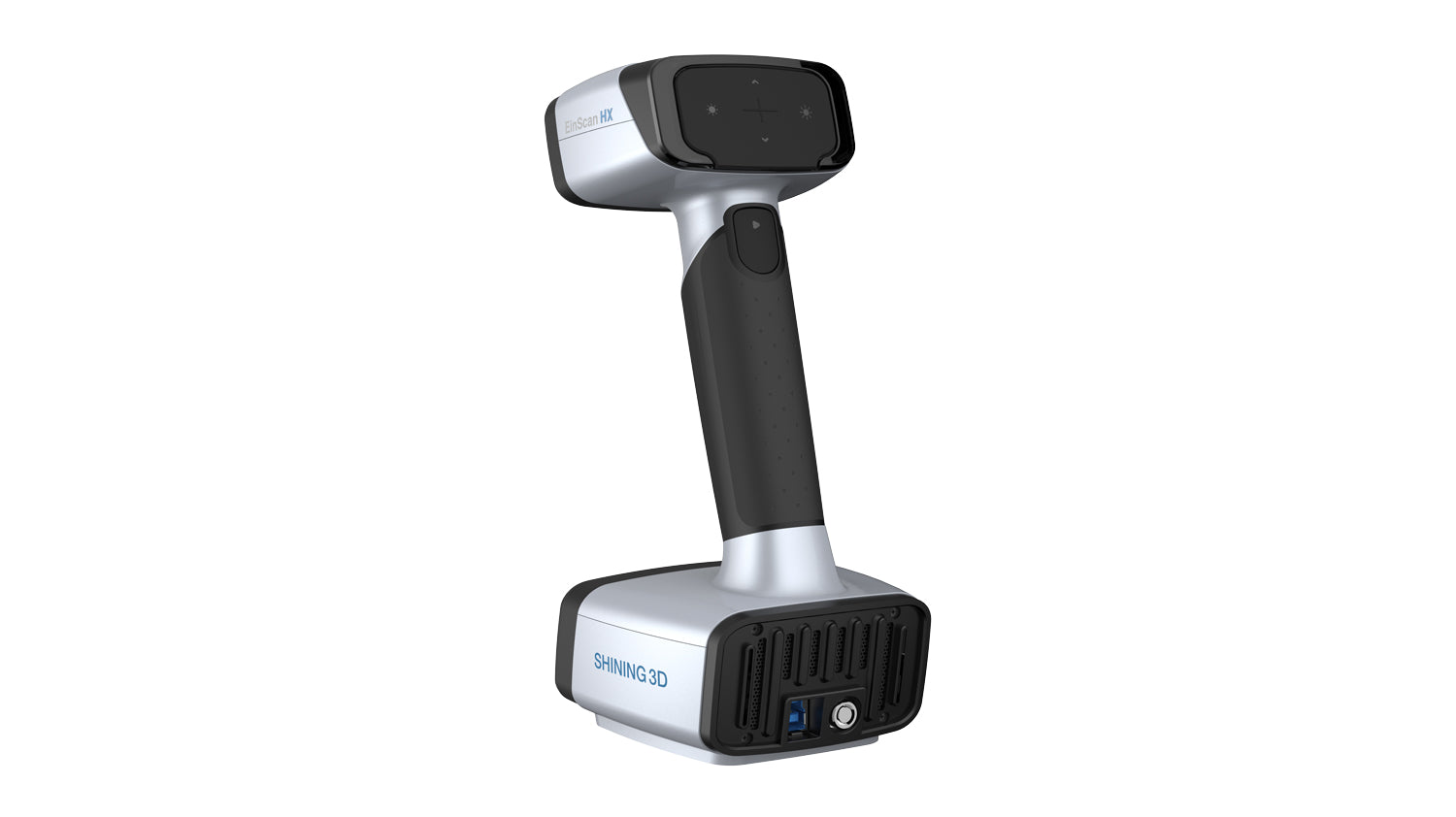

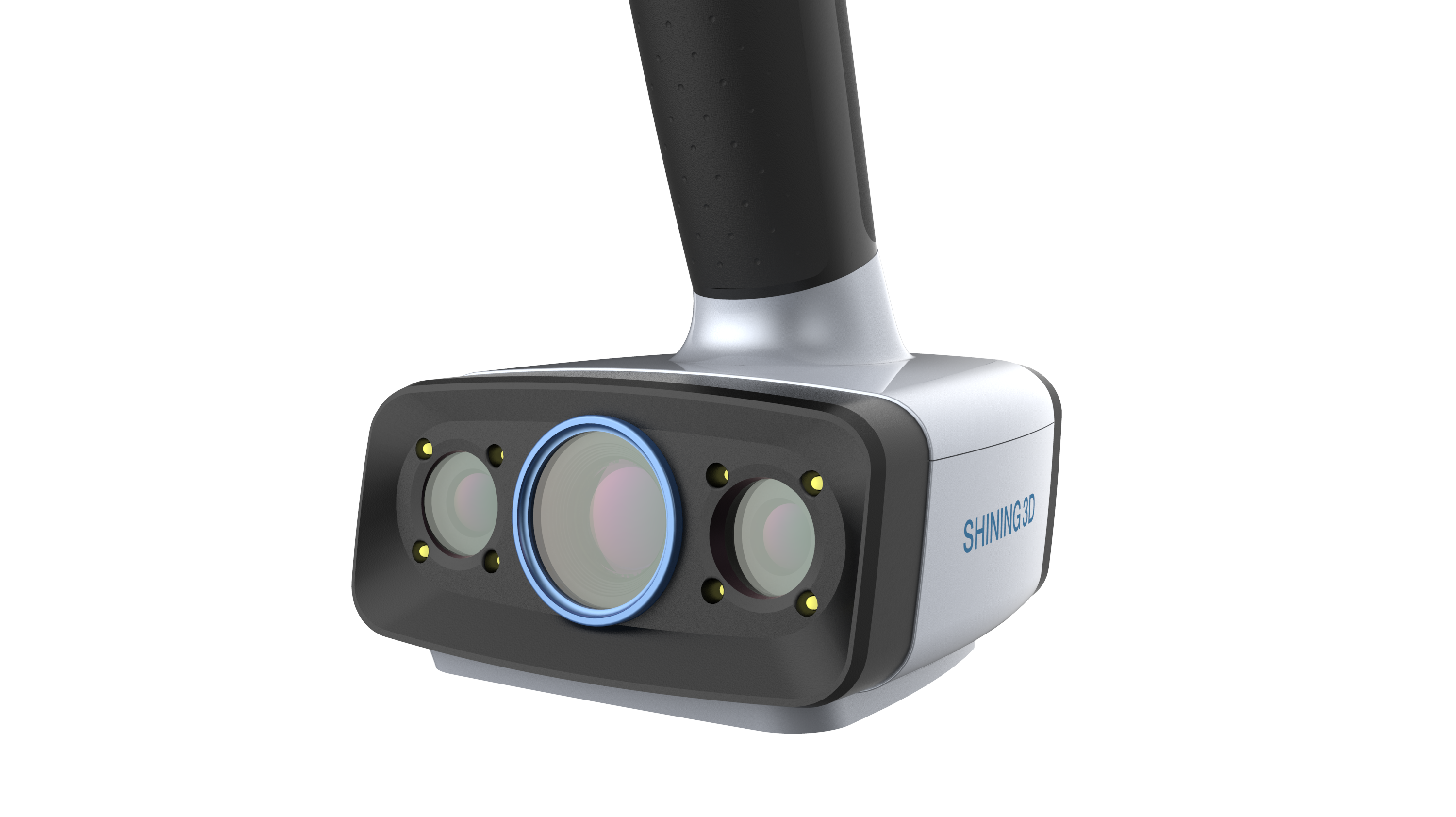

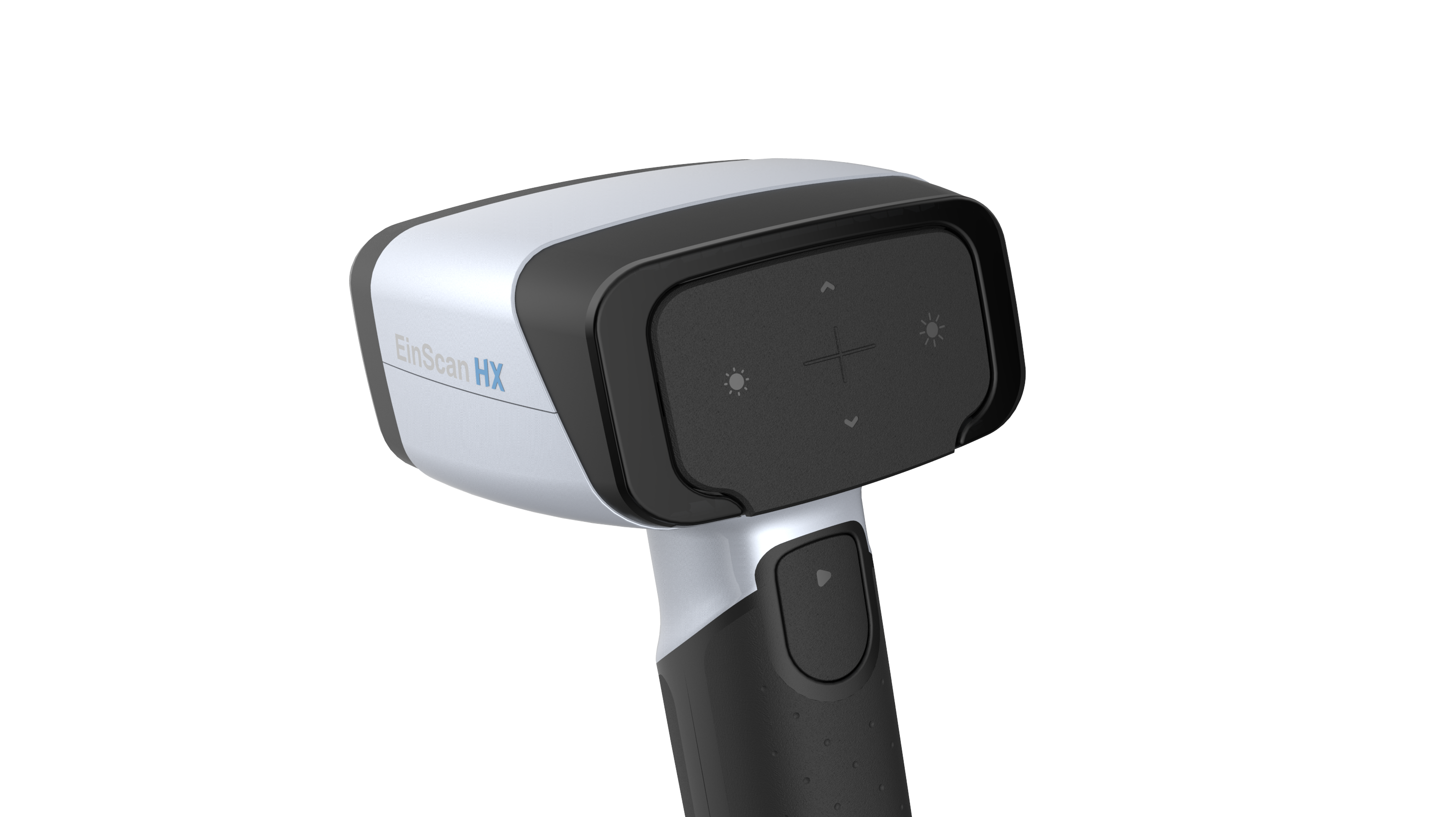

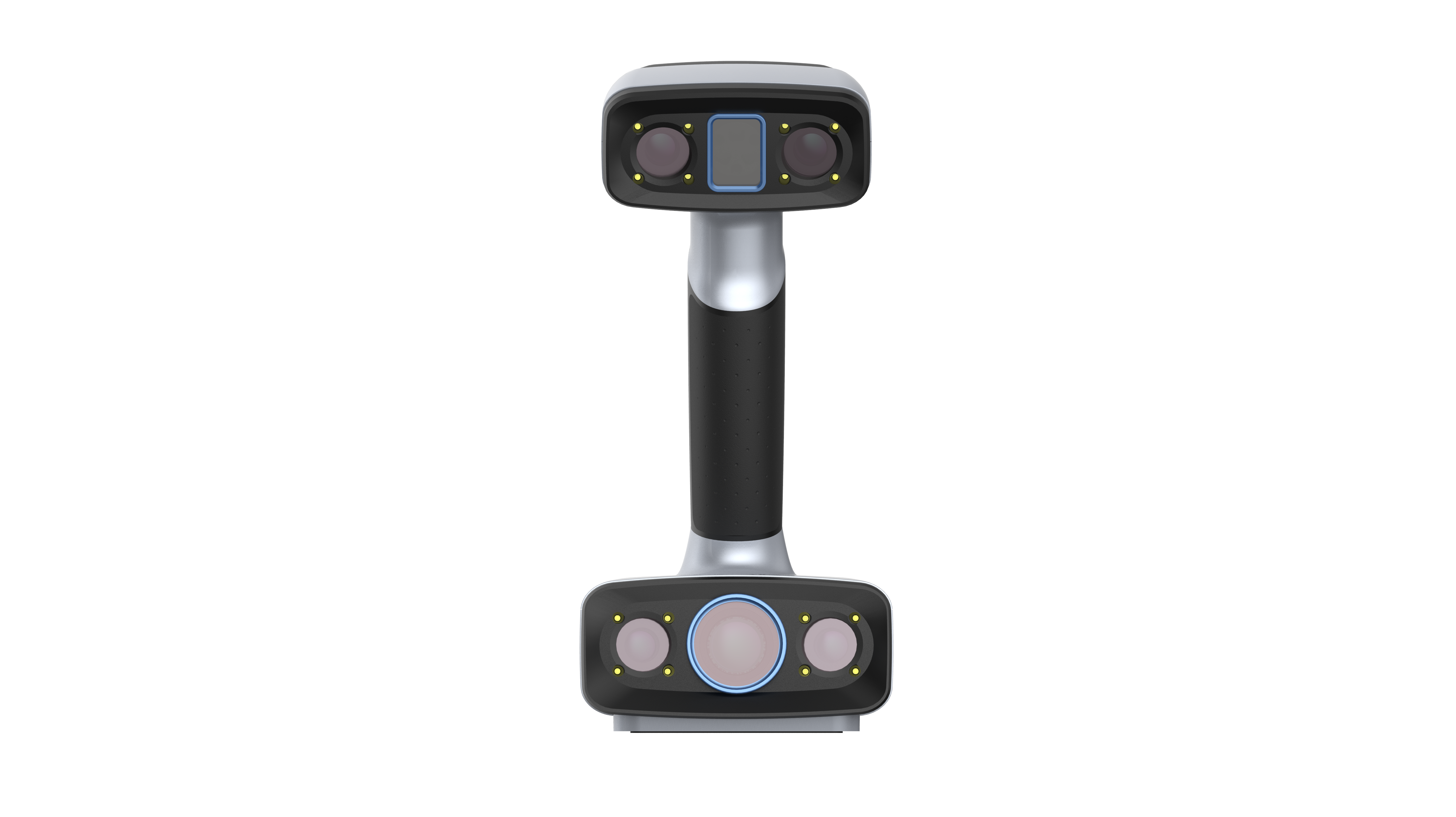

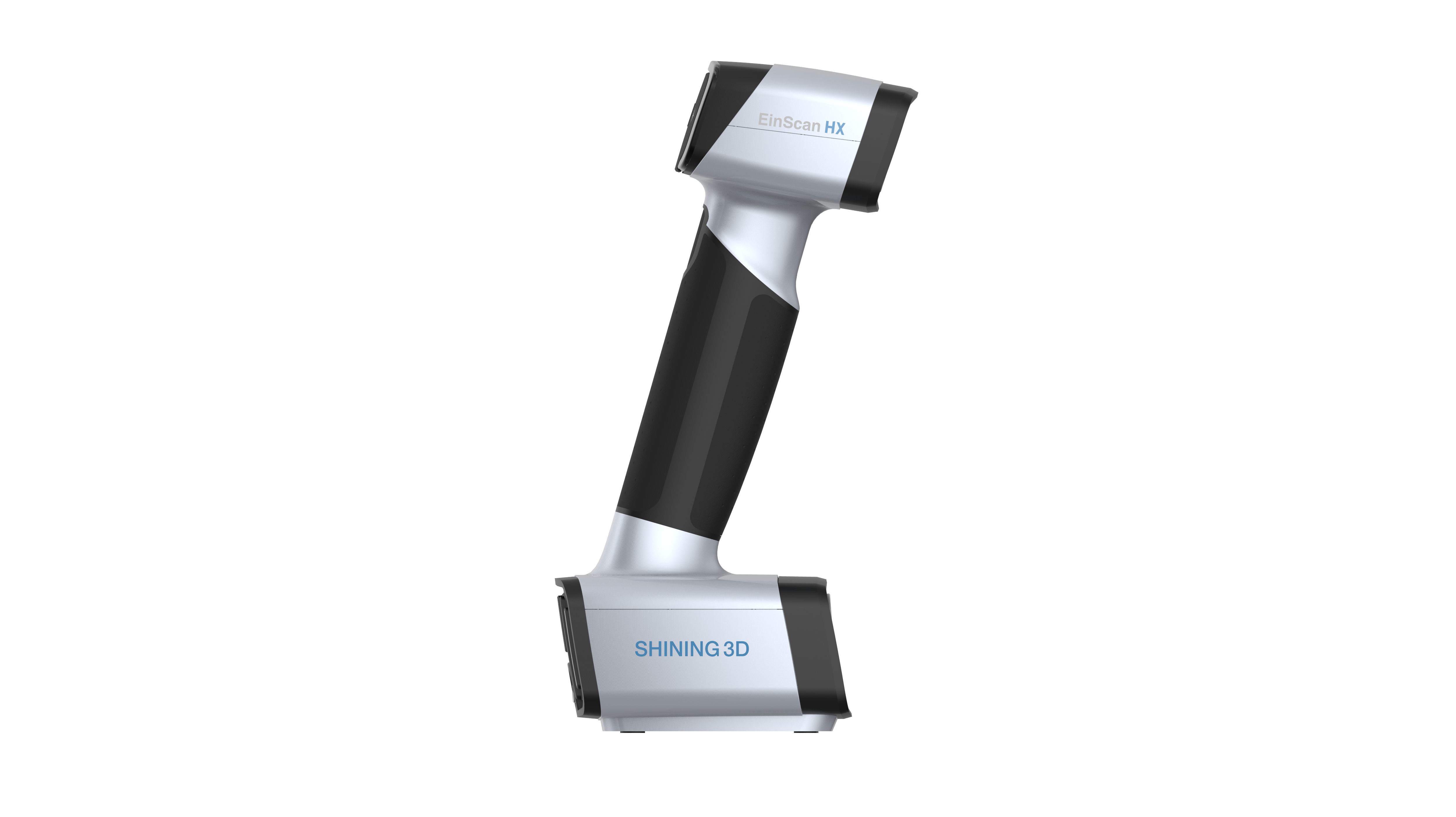

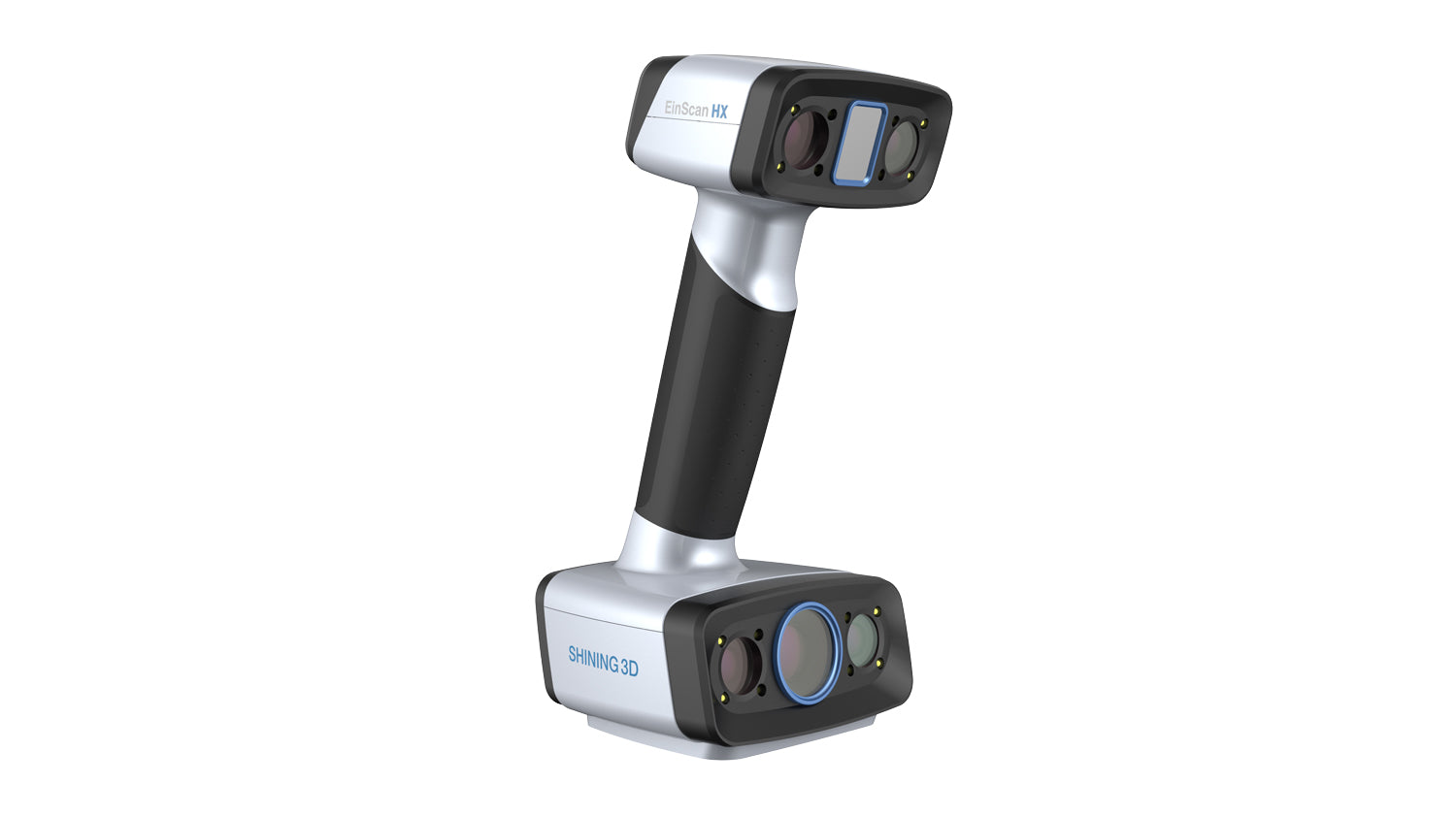

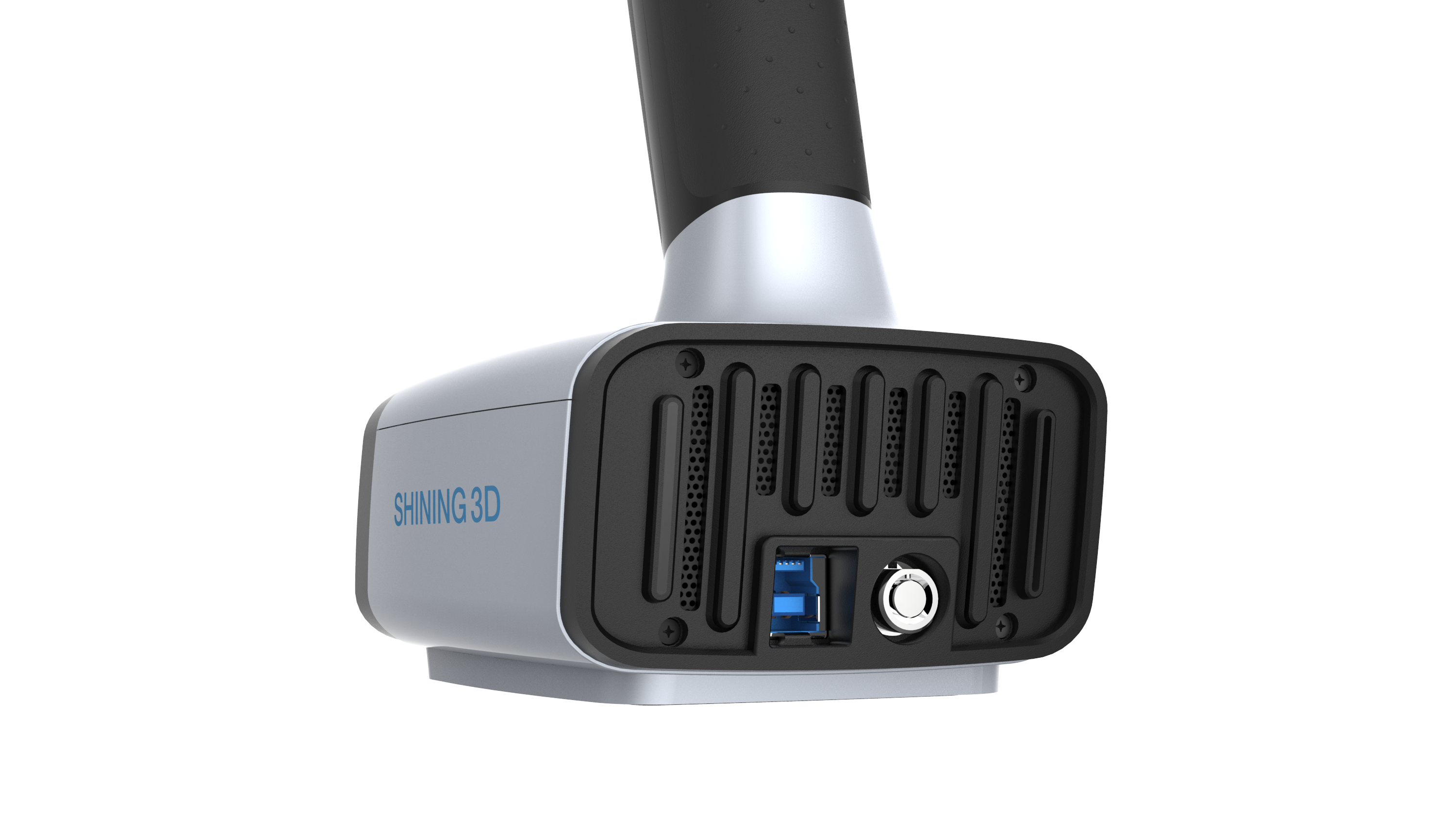

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable results give EinScan HX more application possibilities.
| Scan Mode | Rapid Scan | Laser Scan |
| Scan Accuracy | Up to 0.05mm | Up to 0.04mm |
| Volumetric Accuracy* | 0.05+0.1mm/m | 0.04+0.06mm/m |
| Scan Speed | 1,200,000 points/s 20FPS | 480,000 points/s 55FPS |
| Camera Frame Rate | 55FPS | 55FPS |
| Align Mode | Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment | Markers Alignment |
| Working Distance | 470mm | 470mm |
| Depth of Field | 200mm-700mm | 350mm-610mm |
| Max FOV | 420mm*440mm | 380mm*400mm |
| Point Distance | 0.25mm - 3mm | 0.05mm-3mm |
| Light Source | Blue LED | 7 Blue Laser Crosses |
| Safety | Eye-safe | Class I {Eye-safe） |
| Built-in Color Camera | Yes | Yes |
| Texture Scan | Yes | No |
