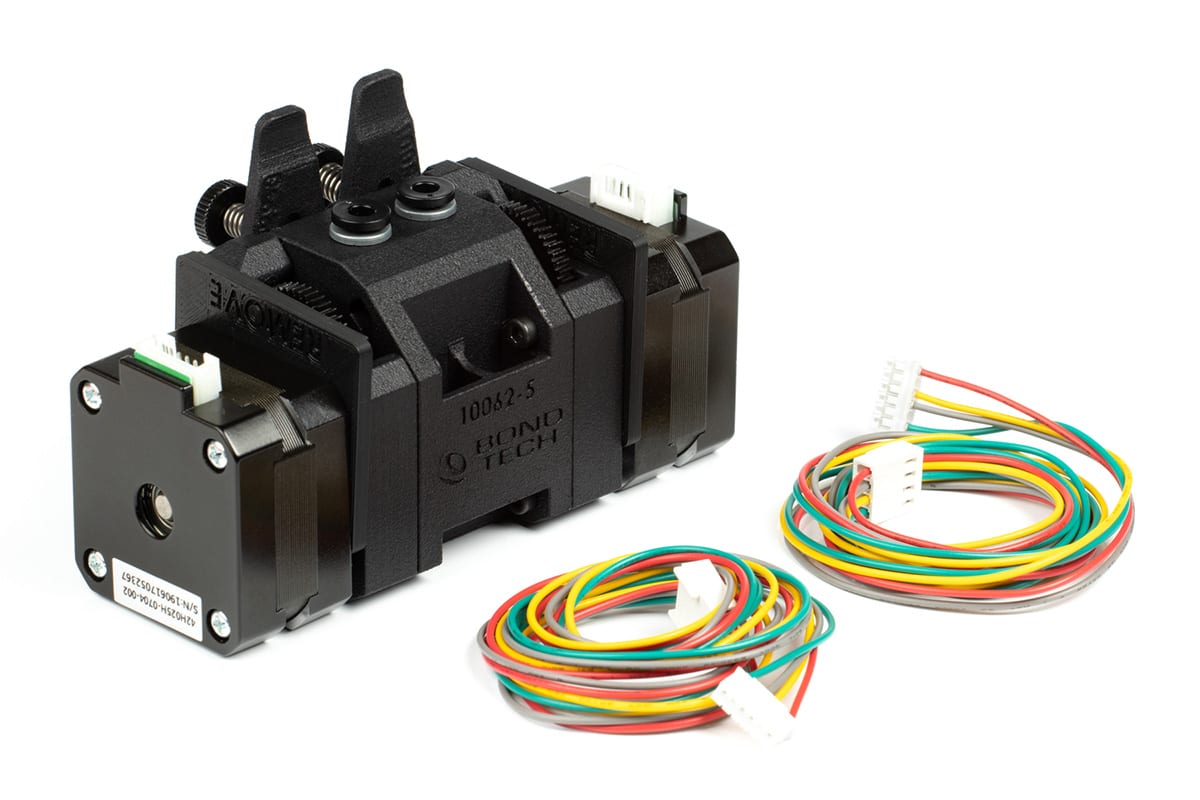

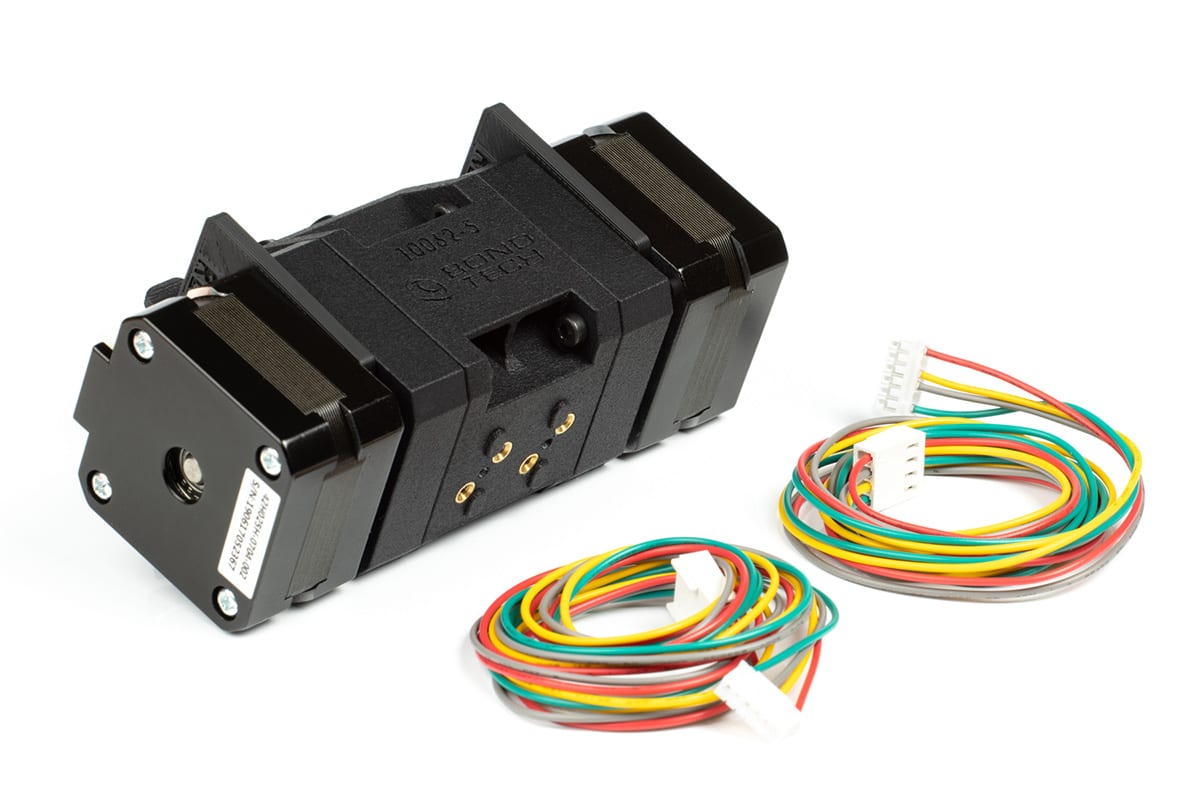

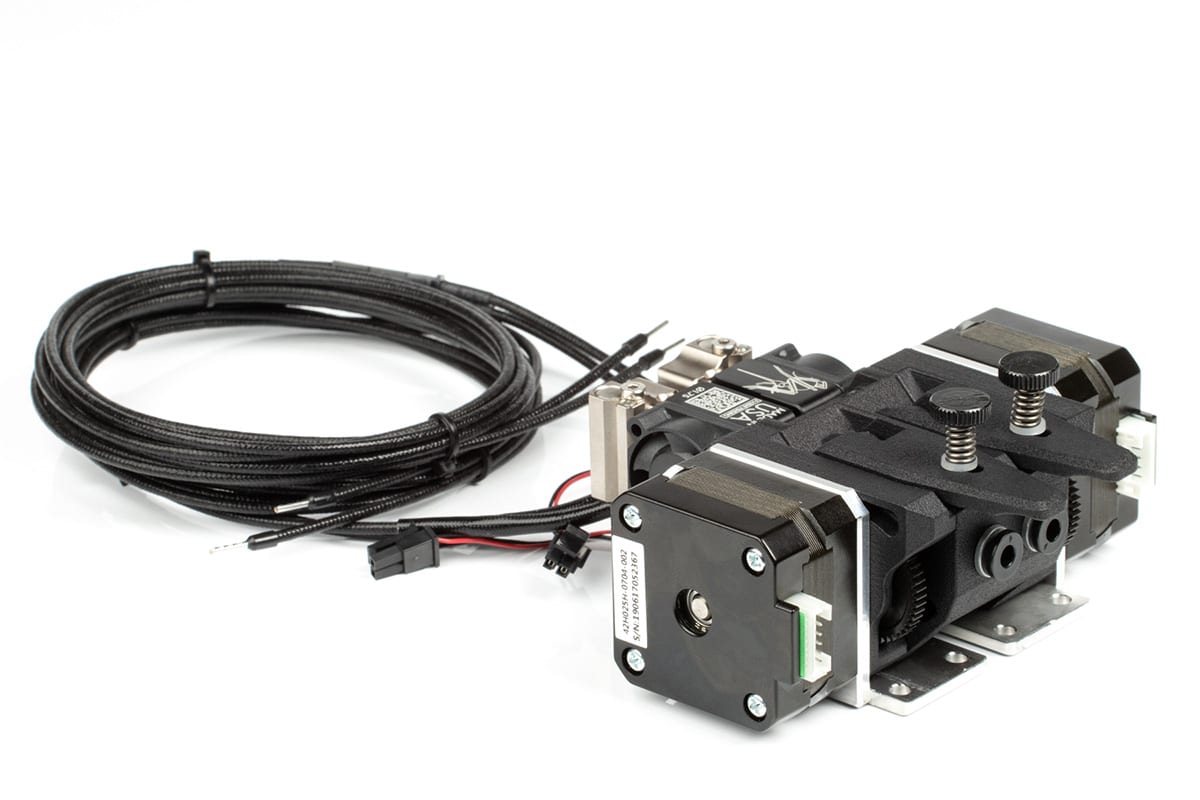

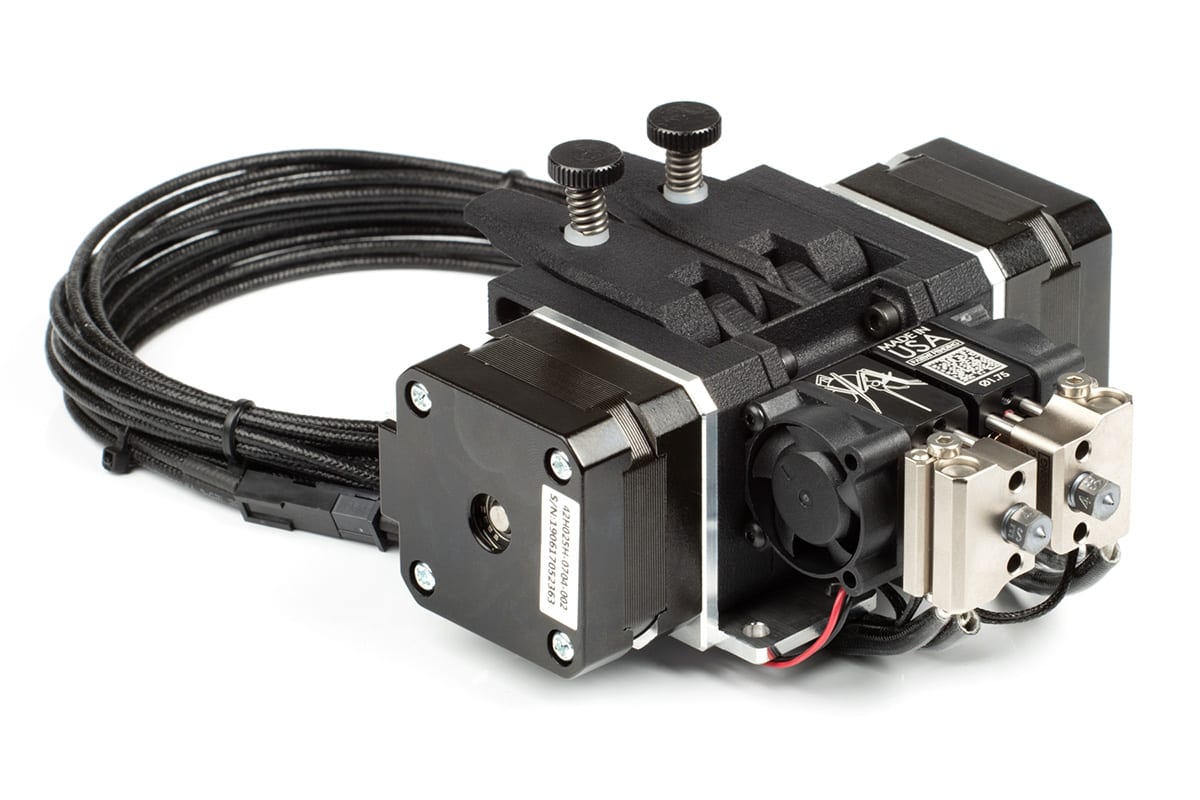

Bondtech BMG-X2-M Extruder For Mosquito

The Bondtech BMG-X2 is the best and lightest performing extruder on the market that combines low weight with dual high feeding capacity.

Dedicated For Mosquito Hotends

This extruder is available in a single version, to use Mosquito hotends. The same version is also compatible with Mosquito Magnum.

SLS 3D Printed Housing in PA

The housing parts are professionally SLS printed in nylon for maximum strength and precision.

For 1.75mm Filaments only

The following parts are NOT included in this product: Alu Mounts; Hotends; Heaters, Thermistors, and their Cables.


To use this Bondtech Extruder, you will also need to buy the following

• a Mosquito Hotend or a Mosquito Magnum Hotend for higher material flow;
• the Boron Nitride Paste;
• the Mosquito Thermistor;
• the Mosquito 12v 50w Heater Cartridge or the Mosquito 24v 50w Heater Cartridge

Optional items

• one or more Vanadium Nozzles;
• a Mosquito 12v fan or a Mosquito 24v fan to cool down the hotend;
• a 1.5Nm Torque Wrench to properly tighten the nozzle(s).

Included Stepper Motors

The included high power Nema17 pancake motors provides high torque and a low weight.

We use, and recommend using, the following stepper motor with this extruder:
NEMA17 Pancake Stepper Motor 25mm
Basic description and datasheet can be found in its page.
