Bondtech BMG IDGA Retro-fit Set

Product Description
$25.99 CAD
Maximum quantity available reached.

Reduce the runout of the main drive gear on your Bondtech BMG Dual Drive extruder.

A very solid, reliable and improved solution from Bondtech that provides a slight improvement to the print surface quality.

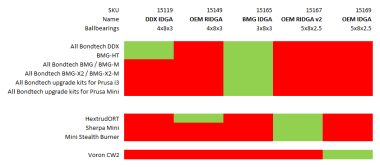

This Integrated Drive Gear Assembly Set is compatible with:

  • All Bondtech BMG series extruders;
  • All Bondtech upgrade kits for Prusa i3;
  • All Bondtech upgrade kits for Prusa Mini;
  • All Bondtech DDX Direct Drive eXtruders for Creality;
  • BMG-HT for Funmat HT;
  • Other BMG type extruders using the original Bondtech main shaft assembly and primary drive gears.

It must be used with 3x8x3.0 mm ball bearings (INCLUDED).


This IDGA, Integrated Drive Gear Assembly, replaces the following mini drive train items:

  • Main shaft;
  • Main gear;
  • Set screw;
  • Primary drive gear.

Secondary drive gear, secondary shaft and secondary needle bearings ARE NOT SUPPLIED.
To purchase a full drive gear set with IDGA use this product instead:
BMG Drive Gears IDGA Kit


This retro-fit set may also replace the following product:
DDX Integrated Drive Gear Assembly

Technical Specification

  • Shaft length: 27.6 +/-0.08mm
  • Shaft length to support ball bearings : < 3.3mm - 3.3mm >
  • Filament teeth’s center to end of shaft : < 21.84mm - 6.30mm >
  • Number of drive gear teeth : 17
  • Drive gear teeth length : 4mm
  • Integrated drive gear Material: Hardened Steel
    Materials Compatibility:
    • Flexible : yes;
    • Rigid : yes;
    • Abrasive : yes.
  • Number of main gear teeth : 50
  • Main gear teeth length : 3mm

Price Match

 Contact us here!

We match all competitors pricing!

You never have to wait for a sale at DigitMakers.ca because we always price our products as competitive as possible. When you choose to shop at Digitmakers.ca, you can have peace of mind knowing you're getting honest value for your money.

Price match for retail store

We guarantee our everyday competitive prices. If you find a lower every day or advertised price on an identical in-stock item (brand, size, model number) currently offered at any local retail competitor's store or website (including shipping, handling and fees, if applicable within Canada)

Competitor close-out, errors or misprints, discontinued, clearance, liquidation, special order, damaged items, delivery, assembly, financing offers, short term door crashes / limited time sales (including Cyber Monday prices, Black Friday prices, Boxing Day/Week prices, etc.), member only pricing, restricted offers, mail order offers, rebates, coupons, premiums, free or bonus offers, limited or minimum quantity offers, and installation labour are excluded from this offer.

Price match for online only website

If you find an identical item for less at a Canadian online only website, we will match their price (including shipping, handling and fees, if applicable).

How to price match in-store:

When shopping in our stores, just show us confirmation of the price that you have found for less from a local competitor via flyer, print-out or smartphone to show us a complete URL (web address) of the product page on the competitor's website.

How to price match on DigitMakers.ca

Please Email : Sales@digitmakers.ca

Please make sure you have the following information before contacting us so that we can assist you as quickly as possible:

  • Your full name and phone number
  • The complete URL (web address) of product page on the competitor's website (Canada Only Accepted)
  • Details of the product name, brand and model
  • Details of the price difference (including shipping, handling and other fees, if applicable)



Our goal is to provide everyday low prices on all of our Items

Sku: BTCH-15165
Vendor: Bondtech
