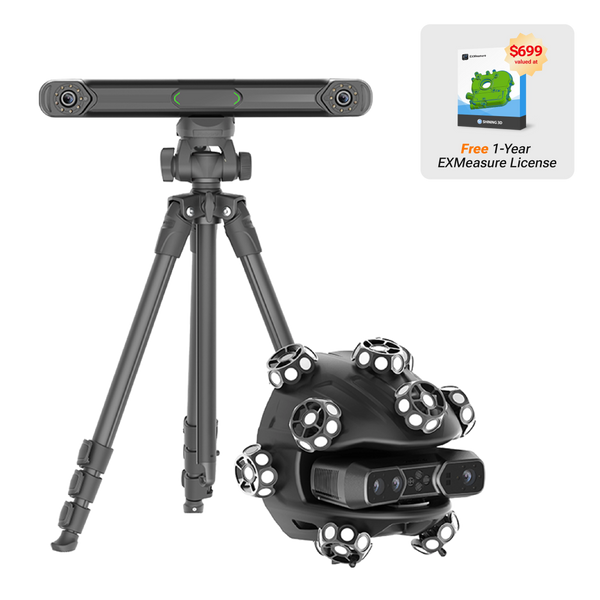

EinScan Trak Wireless Marker-Free Tracking System
EinScan Trak Wireless Marker-Free Tracking System

EinScan Trak Wireless Marker-Free Tracking System

$9,935.99
Only 1 left - in stock and ready for shipping
Ships from Canada Technical support available Pickup or delivery options
SKU: EINSCAN-TRAK

EinScan Trak 3D Scanner





EinScan Trak Specification

Specification Details
Work Mode Tracking Mode / Handheld Scanner Mode
Scan Mode Laser Mode
Light Source 19+19 crossed lines / 7 parallel lines / Single line
Resolution 0.05–10 mm
Volumetric Accuracy Up to 0.1 mm
Scan Speed 2,630,000 points/s
Working Distance Tracking Mode: 800–4000 mmScanner Mode: 100–500 mm
Max FOV Tracking Mode: 4796 × 4174 mm @ 4000 mmScanner Mode: 547 × 463 mm @ 500 mm
Tracking Volume 15 m³
Alignment Mode Tracking Mode: Tracking / Global MarkerScanner Mode: Marker / Global Marker / Feature
Camera Resolution Tracking Mode: Tracker Cameras: 5MP × 2Scanner Mode: Depth Cameras: 2MP × 2, Texture Camera: 5MP × 1
Output Formats STL, OBJ, PLY, 3MF, ASC
Laser Class Class 2
Operation Conditions -10°C to 40°C
Recommended PC Configuration OS: Windows 11 (64-bit)CPU: 13th Gen Intel® Core™ i7-13650HX or aboveGPU: NVIDIA GeForce RTX 4060 or aboveVRAM: 8 GB or aboveRAM: 64 GB or above, DDR5 dual-channelInterface: USB 3.0; LAN
Minimum PC Configuration OS: Windows 11 (64-bit)CPU: 13th Gen Intel® Core™ i7-13650HX or aboveGPU: NVIDIA GeForce RTX 3060 Laptop GPUVRAM: 6 GB or aboveRAM: 32 GB or above, DDR5 dual-channelInterface: USB 3.0; LAN
Power Source / Battery Life Tracking Mode: 5.5 hours continuous use (Tracker 5400 mAh × 2; Scanner 5400 mAh × 2)Scanner Mode: 3.5 hours continuous use (5400 mAh × 1)
Interface Tracking Mode: USB Type-C × 2Scanner Mode: USB Type-C × 1
Dimensions Tracker: 462 × 68 × 54 mm (18.15 × 2.68 × 2.13")Spherical Scanner: 244 × 186 × 238 mm (9.57 × 7.32 × 9.37")Handheld Scanner: 199 × 193 × 172 mm (7.83 × 7.59 × 6.77")
Net Weight Tracker: 1.02 kg (2.23 lbs)Spherical Scanner: 1.46 kg (3.21 lbs)Handheld Scanner: 0.48 kg (1.17 lbs)
Certifications CE, FCC, RoHS, WEEE, FDA, SRRC, IP50

What Is In The Box

EinScan Trak-Tracker
EinScan Trak-Spherical Scanner
System Calibrator
Markers Set & Markers Scraper
