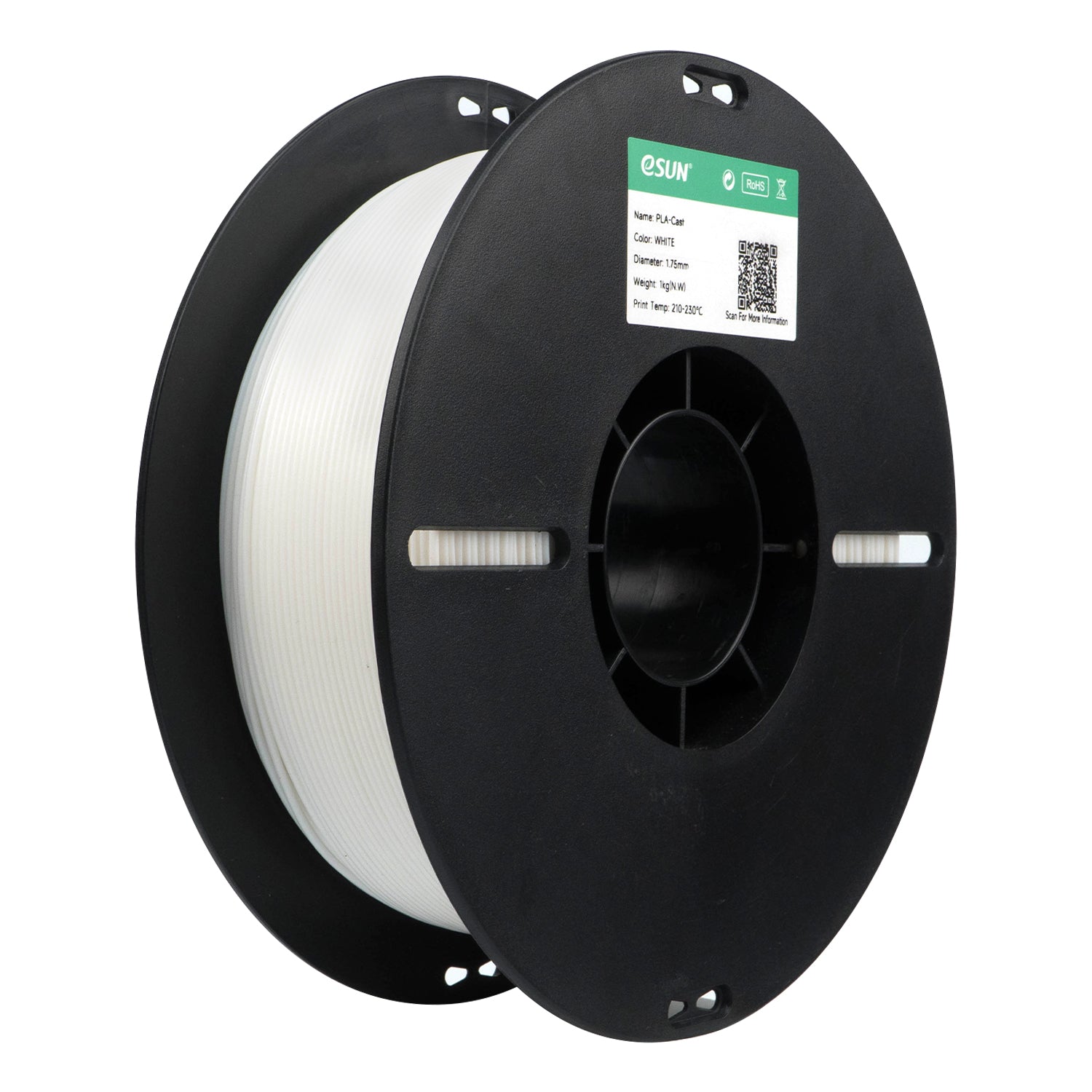

eSun PLA-Cast Filament 1.75mm 1kg

eSun PLA-Cast Filament 1.75mm 1kg
eSun PLA-Cast Filament 1.75mm 1kg
screen may slightly differ with real color
Color:
White

Product variant with selected options does not exist!
View all options as a list
$22.50

Frequently Bought Together

Color: White

Stock Notification

Get notified when this product is available again

PLA-Cast

PLA-Cast is a PLA material designed specifically for transistor casting. This material is used for inexpensive casting of parts. The part model is impregnated with slurry and then burned in a furnace, leaving virtually no residue. This material offers high printing precision and has replaced wax injection molding in methanol casting, significantly reducing production costs and time.

Sellingpoint

Ash content as low as 0.003%
High strength

Easy post-processing
High-precision printing

Print model

PLA-CAST 3D printing model-5

PLA-CAST 3D printing model-2

PLA-CAST 3D printing model-4

PLA-CAST Product Details 2

Downloads

REACH

RoHS



Parameter Information

Density(g/cm3) 1.25
Melt Flow Index 8.5（190℃/2.2kg）
Heat Distortion Temp(℃,0.45MPa) 55.3
Tensile Strength(MPa) (XY) 76.85
Tensile Strength(MPa)(Z) 45.95
Elongation at Break(%)(XY) 4.61
Elongation at Break(%)(Z) 2.68
Flexural Strength(MPa)(XY) 130.5
Flexural Strength(MPa)(Z) 79.9
Flexural Modulus(MPa)(XY) 4051.39
Flexural Modulus(MPa)(Z) 3632.44
IZOD Impact Strength(kJ/㎡)(XY) 3.54
IZOD Impact Strength(kJ/㎡)(Z) 2.19
Extruder Temperature(℃) 210-240℃
Bed temperature(℃) 45 - 60°C
Fan Speed(％) 100%
Printing Speed(mm/S) ＜200mm/s
Heated Bed Need
    SKU: ESUN-FL-PLA-CAST-1.75-1KG-WHT
