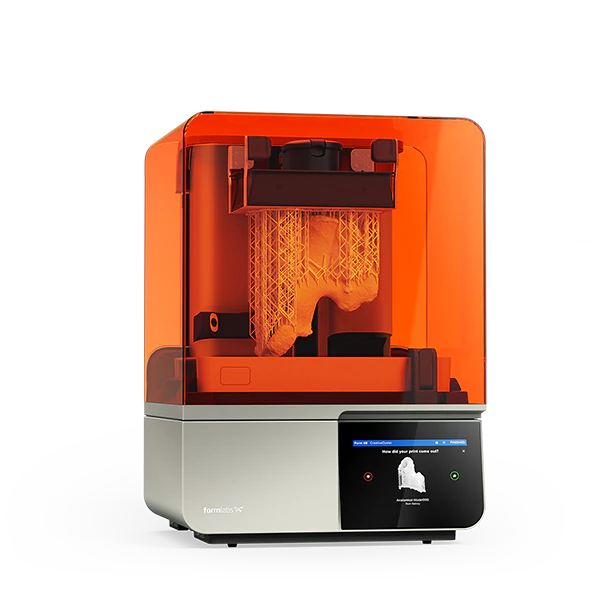

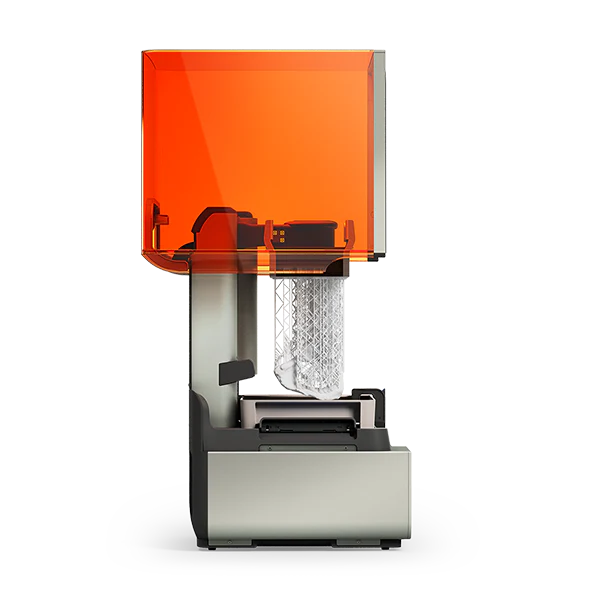

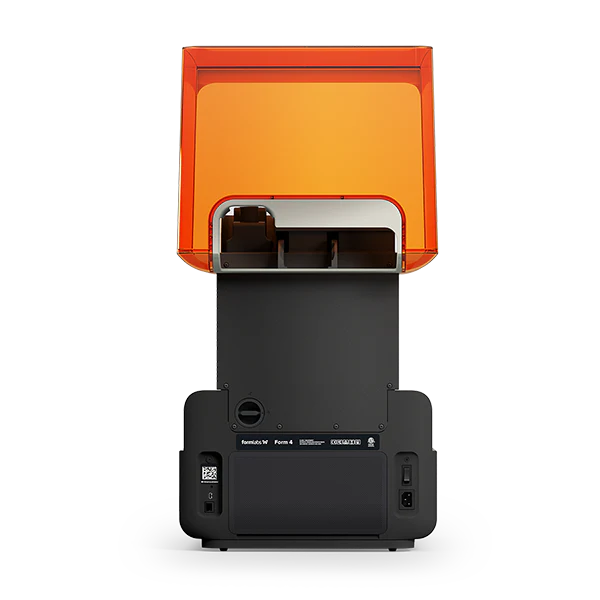

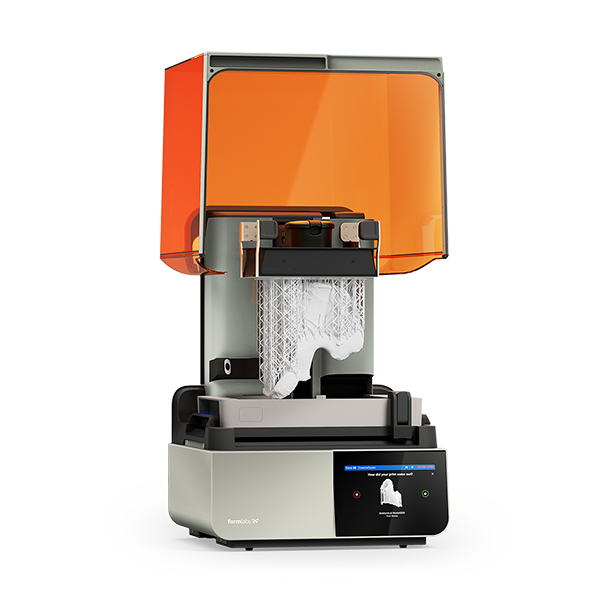

Formlabs Form 4 Basic Package - Blazing Speed Meets Industrial Production
Form 4 is a blazing fast masked SLA 3D printer that combines an industry-leading materials library with a reliable, accurate print engine. Turn your ideas into reality faster than ever with easy workflows, leading reliability, and stunning part quality using the Form 4 ecosystem.
Form 4’s speed is driven by Formlabs’ new Low Force Display™ Print Engine, a powerful combination of ultra-high power LEDs, collimating lenses, optical filters, and a robust liquid crystal display. Together they cure each layer of resin rapidly — regardless of part size or quantity. With tight tolerances, parts printed in every resin on Form 4 will match your design parameters, every time.
Features
Get more done with most prints in under 2 hours.
Game Controller Print Time:
- Form 4: 1h 38m
- Benchmark FDM: 3h 37m
- Benchmark SLA: 4h 11m
- Form 3+: 10h 47m
Electrical Connector Print Time:
- Form 4: 1h 28m
- Benchmark FDM: 9h 12m
- Benchmark SLA: 2h 16m
- Form 3+: 9h 43m
Produce stunning parts that always fit, rivalling injection-molded parts.
-
Sharpest Details
Highly collimated light and 50 µm pixel size with pre-tuned anti-aliasing for subpixel resolution -
Smoothest Surfaces
Lower peel forces, light touch supports, and 50 µm pixel size with pre-tuned anti-aliasing -
Most Accurate Assemblies
±0.15% XY dimensional tolerances so assembles always fit.
Tackle any problem with our industry-leading materials.
Formlabs has a vast library of specific use case resins as well as general purpose resins that still offer enchanced mechanical properties over other resins. Use Formlabs Resin for:
- General Purpose
- Tough. Impact-resistant, PP-like, ABS-like
- Rigid. Ultra stiff, high strength, glass-filled
- Flame Retardant. UL 94 V-0 certified, FST rated
- Silicone. 100% pure silicone
- Elastic. Translucent elastomers. 50A and 80A shore hardness
- Biocompatible. Class I and Class II with Form 4B
- Polyurethane. Long-term durability, true polyurethane
- Ceramic. 99.99% pure alumina technical ceramic
Unmatched reliability. Stop coming back to failed prints.
With new systems in place to ensure you never come back to a failed print
- Validated Print Settings: Formlabs optimization engineers put hundreds of printed parts to the test to ensure each material performs to the most reliable standards, right out of the box.
- Intelligent Control Systems: Six control systems precisely measure and maintain the temperature, resin level, print forces, and print status inside your printer.
-
Long-Lasting Consumables: Robust hardware that was engineered for years of use.
Tank rated for >75,000 layers for all materials.
Light Processing Unit rated for >750,000 layers.
- Factory Calibration: 60-point calibration and quality control inspection before your printer even leaves the factory.
- Remote Monitoring: Monitor your prints and manage your printers from anywhere with an integrated camera, preventative maintenance reminders, and our free Dashboard software.
Tech Specs
- Technology: Low Force Display (LFD)
- Build Volume (W x D x H): 20.0 x 12.5 x 21.0cm | 7.9 x 4.9 x 8.3in
- Layer Thickness (Z resolution): 25 - 300 microns
- XY Resolution: 50 Microns
- Average Print Speed (100 µm layer height): 40mm/h
- Maximum Print Speed: 100mm/h
- Resin Tank Lifetime: 75,000+ layers with any Formlabs material
- Printer weight: 18.3kg | 40.4lb
- Printer dimensions: 39.8 x 36.7 x 55.4cm | 15.7 x 14.5 x 21.9in
- Warranty and service: One-year warranty included | Paid service and extended warranty options available
- Software compatibility: Windows 7 and up | Mac os X 10.12 and up
- File Types accepted: STL, OBJ, 3MF
What's Included
- 1 x Formlabs Form 4 3D Printer
- 1 x Formlabs Form 4 Resin Tank
- 1 x Formlabs Form 4 Mixer
- 1 x Formlabs Form 4 Build Platform
- 1 x Formlabs Form 4 Finish Kit
