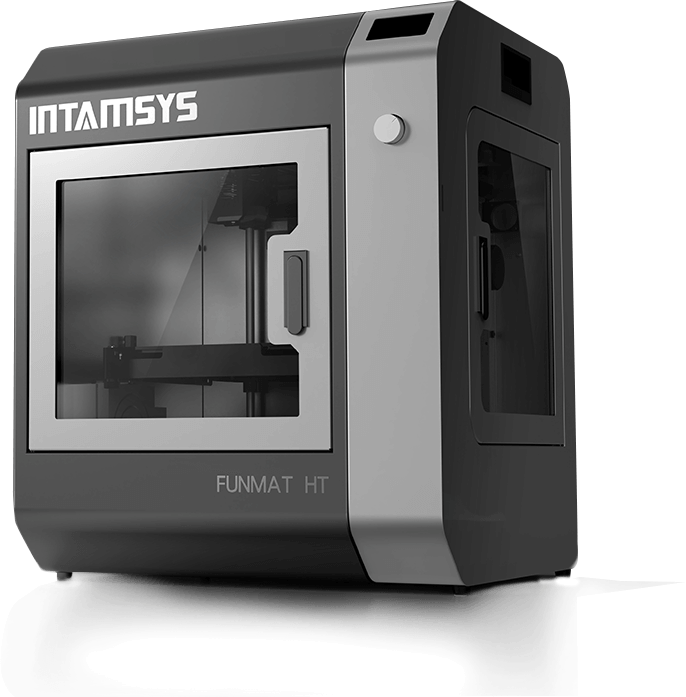

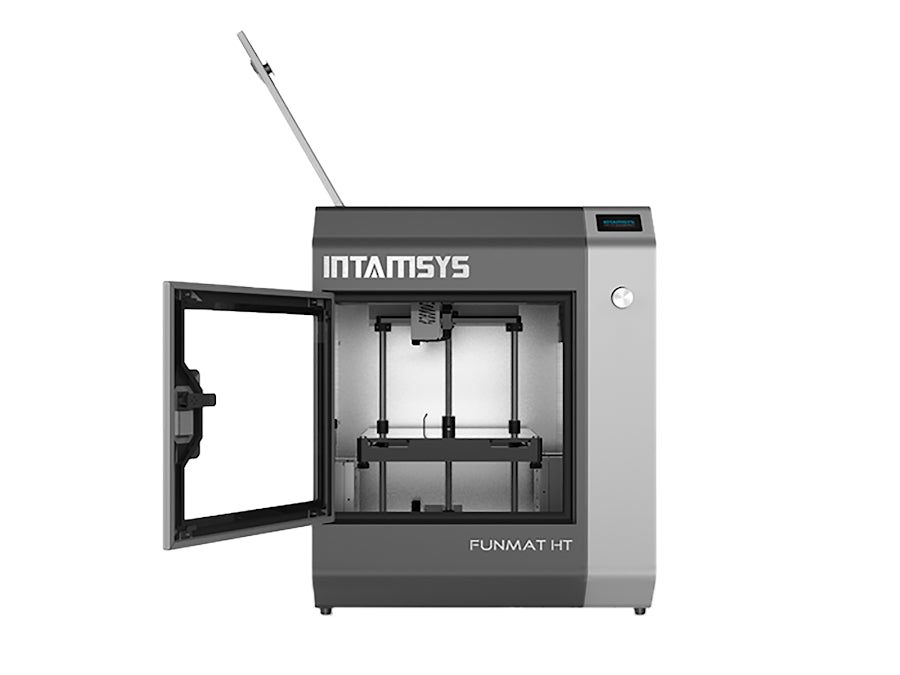

Intamsys FunMat HT Enhanced High Temp 3D Printer

Intamsys FunMat HT Enhanced High Temp 3D Printer
Intamsys FunMat HT Enhanced High Temp 3D Printer
Intamsys FunMat HT Enhanced High Temp 3D Printer
Intamsys FunMat HT Enhanced High Temp 3D Printer
Contact Us

AFFORDABLE DESKTOP PEEK 3D PRINTER

The FUNMAT HT is an Affordable, High-Performance 3D Printer with a Build Volume of 260 x 260 x 260 mm.
Achieve 50-Micron High-Resolution Industrial Quality 3D Printing with the FUNMAT HT.

The Challenge of Printing PEEK

The high melting point of PEEK and its demanding requirements for high-temperature processing make 3D printing challenging.
Advanced thermal design is essential to ensure the high quality and dimensional accuracy of the printed components.

Advanced Thermal Design

90°C Constant Temperature Chamber
160 °C Heated Build Plate
450 °C High-Temperature Extruder with an All-Metal Hot End

Advanced Thermal Design



Multi-Material Printing Capability

Capable of printing high-performance materials such as PEEK, PEEK-CF, PEEK-GF, PEKK, as well as PA-CF, PA, PC, ABS, and more without warping or cracking.

Multi-Material Printing Capability

INTELLIGENT DESIGN FOR EASY TO USE

Auto Leveling Function

Make it easy and simple to set up the 3D printer

Reused Ceramic Glass Plate

Easily fixed to the platform and reused multiple times.

Filament Runout Warning

Enhance printing success rate and efficiency.

3.2 inch Touch Screen

Intuitive operation for seamless printing.

What's in the Box?

  • Printer (with standard hot end)
  • Ceramic Glass Build Plate x 2
  • High temperature hot end
  • SD Card
  • USB SD Card Reader
  • USB Cable
  • Power Cable
  • Packing List
  • Quick Start Guide
  • Metal leveling sheet
  • 7 mm Socket driver
  • Scraper
  • Gloves
  • Hex Wrench Set
  • Tweezers
  • Wire Cutters
  • 1.0 Kg Spool of Black ABS
  • Replacement Feeder
  • 0.4 mm Brass Nozzle
  • 0.6 mm Brass Nozzle
  • 0.4 mm Steel Nozzle
  • Extruder Gear
  • Zip Ties

Technical Specifications

  • Printing Technology: Fused Filament Fabrication (FFF)
  • Build Volume: 260mm x 260mm x 260mm (10.24" x 10.24" x 10.24")
  • Build Platform: Glass-Ceramic Composite with PI Film on an Aluminum Plate
  • Layer Thickness: 0.05 - 0.3mm
  • Filament Diameter: 1.75mm
  • Print Speed: 30-300mm/s
  • Extruder Temp. - Standard Hotend: Up to 270°C
  • Extruder Temp. - High Temperature Hotend: 450°C (842°F)
  • Platform Temp.: 160°C (320°F)
  • Chamber Temp.: 90°C (194°F)
  • Supported Materials: PEEK, PEKK, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, etc.
  • Position Accuracy: 12.5µm in X and Y, 1.25µm in Z
  • Input File Type: STL, OBJ
  • Connectivity: Ethernet, SD Card
  • Power Consumption: 1200W, 110V, 10A
  • Safety Certs: FCC and CE
    SKU: INTAMSYS-FNMT-HT-3DPRNTR
