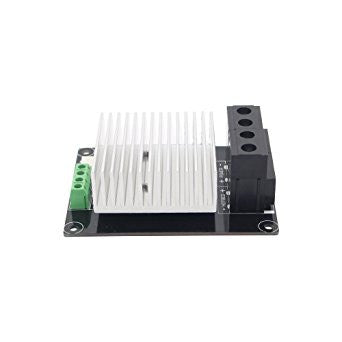

MKS MOSFET Heating Controller HOTBED-MOS+ V1.0

Product Description
$18.99
Maximum quantity available reached.
  • High performance of  MOSFET
  • Extra large heat sink , the maximum current can be up to 30A or more.
  • Can use hot bed  output signal of  Ramp1.4 and MKS series  to control .
  • Can use digital signal of 5-24v to control .

 Usage

1.  Connect  Power  to power source, please note the anode and cathode.

2.  Connect  Hotbed to heated wire , please note the anode and cathode.

3.  Connect digital control signal to Gnd,D8.

4.  Connect  the control signal of Ramps1.4 or MKS MOSFET to -Bed+

5.  Choose one signal group  to connect .



Sku: HE002-MOSFET-1
Vendor: GENERIC
