NOTE: This item is not a stocked item. Its a pre-ordered item that will be shipped directly from the warehouse.

Contact sales@digitmakers.ca for more information.

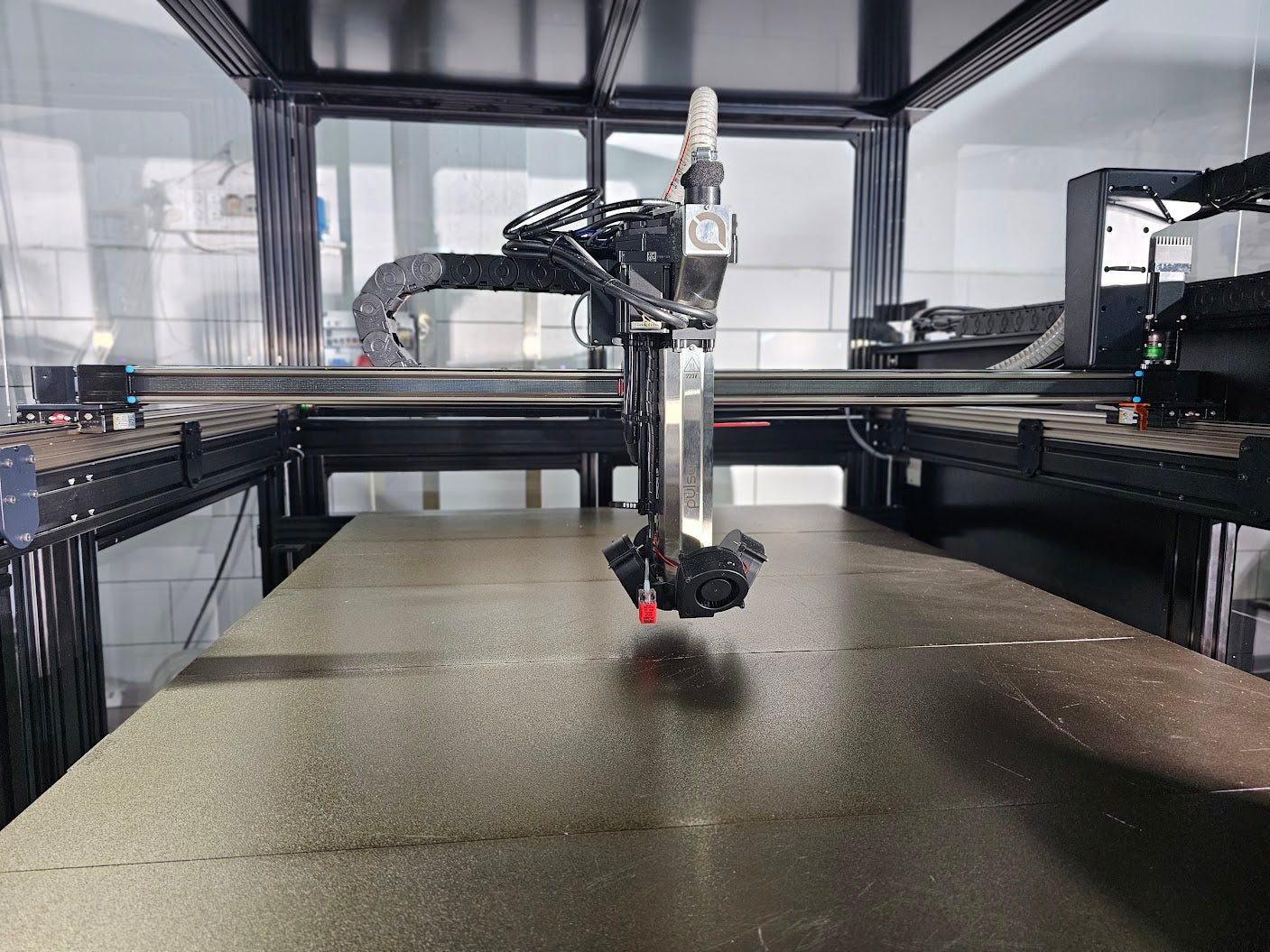

MAMA-1700 Pellet 3D Printer

The MAMA-1700 is Modix’s latest innovation, primarily designed for FGF (Fused Granulate Fabrication) technology. It also features a high-flow, interchangeable filament extruder, providing greater versatility for printing highly detailed 3D models. As the flagship model in Modix’s new line of 3D printers, the MAMA-1700 brings next-level capabilities to large-scale 3D printing applications.

Discover the Power of Pellet 3D Printing

The MAMA series is primarily engineered to print with a heavy duty pellet extruder, significantly boosting print speeds and reducing costs. With Modix’s FGF pellet 3D printer, you can create life-sized objects in hours rather than days, unlocking new possibilities.

Benefits of pellet 3D printing

  • Speed: Print large objects in hours, not days.
  • Cost-Efficiency: Reduce printing costs to a few dollars per kg.
  • Material Versatility: Access a wider range of materials, including eco-friendly recycled options, with a pellet extruder.

MAMA-1700 Specifications

  • Print Volume: 1.7 x 1.0 x 1.0 meters (XYZ)
  • Printer Dimensions: 2.1 x 1.53 x 2.35 meters (XYZ)
  • Enclosure: Included
  • Pellet Print Head (FGF): Dyze Design Pulsar
    • Flow Rate: 500 mm³/s, up to 3 KG/hour
    • Nozzles: 3mm & 5mm. 1mm nozzle is available as an add-on
    • Sensors: Pellets runout & pellet extrusion clog detection
  • Filament Print head (FFF) – Modix Griffin Ultra
    • Flow Rate: 160 mm³/s, up to 500 gram/hour
    • Nozzles: 1.6mm. Smaller nozzles are available as an add-on
    • Sensors: filament runout and filament extruder clog detection
  • Material Compatibility (FGF&FFF): PLA, ABS, TPE, TPU, PVA, HIPS, PC, PETG, Nylon(PA), glass  & carbon fiber filled, and recycled options
  • Required: Air compressor (not included)
    Required compressor specs: 3.5 HP, 24 liter/6.3 Gallon
  • Motion system: Closed loop nema23
  • Electronic controller: Duet 6HC
  • Optional Add-Ons: Air filter, additional nozzles, and more
  • Future Add-Ons: IDEX with pellets or filament
  • Reliability – The printer is equipped with pellet extruder clog and pellets supply runout detection, allowing the printer to automatically pause and wait for operator to service the printer and continue the printing process.
  • Delivery – Self assembly kit

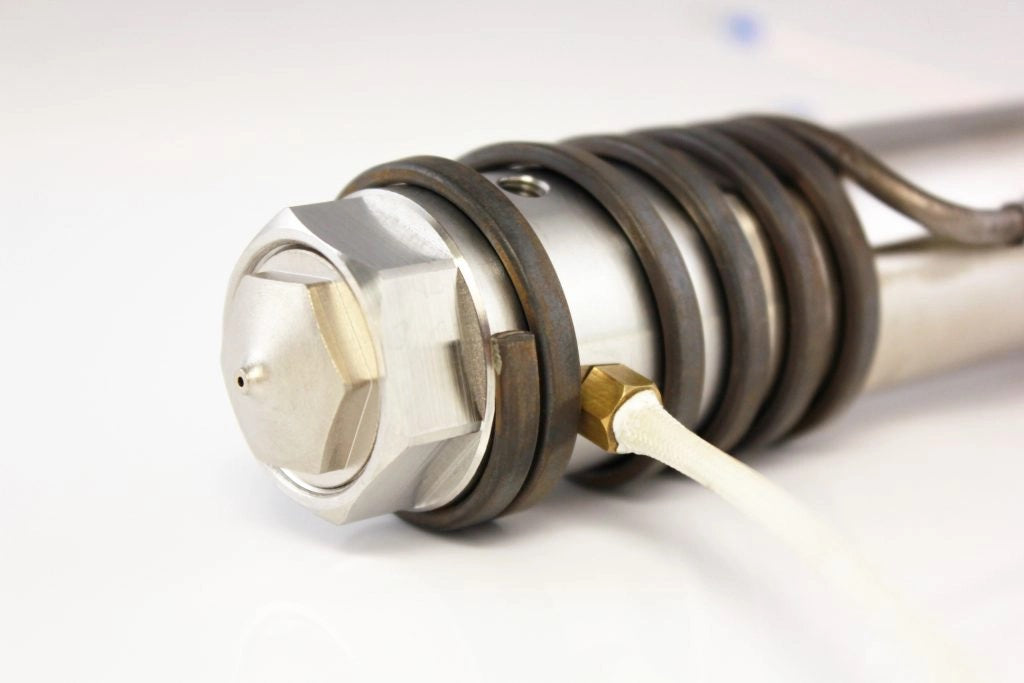

MAMA-1700 Pellet Extruder


Modix MAMA-1700 is equipped with DYZE Design Pulsar Extruder. This extruder is a high-performance pellet extruder designed for industrial-scale 3D printing. Introduced back in 2018, this pellet extruder is a proven work horse with a track record of reliability and experience.


Key Features:

  1. High Flow Rate: Capable of delivering a flow rate of up to 500 mm³/s, enabling the printing of large-scale objects at speeds of up to 3 kilograms per hour.Material Versatility: Supports a wide range of materials including PLA, ABS, TPE, TPU, PVA, HIPS, PC, PETG, Nylon, and composites such as wood, glass fiber, and carbon fiber filled. It also accommodates recycled materials, enhancing sustainability.
  2. Precision and Reliability: Built with precision engineering to ensure consistent and reliable extrusion, crucial for industrial applications.
  3. Ease of Maintenance: Designed for easy maintenance, reducing downtime and operational costs.
  4. Nozzle and Screw selection – Dyze Pulsar offers nozzles from 1mm to 5mm diameter and several screws to meet your pellet 3d printing needs.



Check the Modix Product Catalog for detailed printer information and inspiring use cases from the Modix Innovation Magazine:

Modix Product Catalog

Modix Magazine

SKU: MODIX-MAMA-1700
