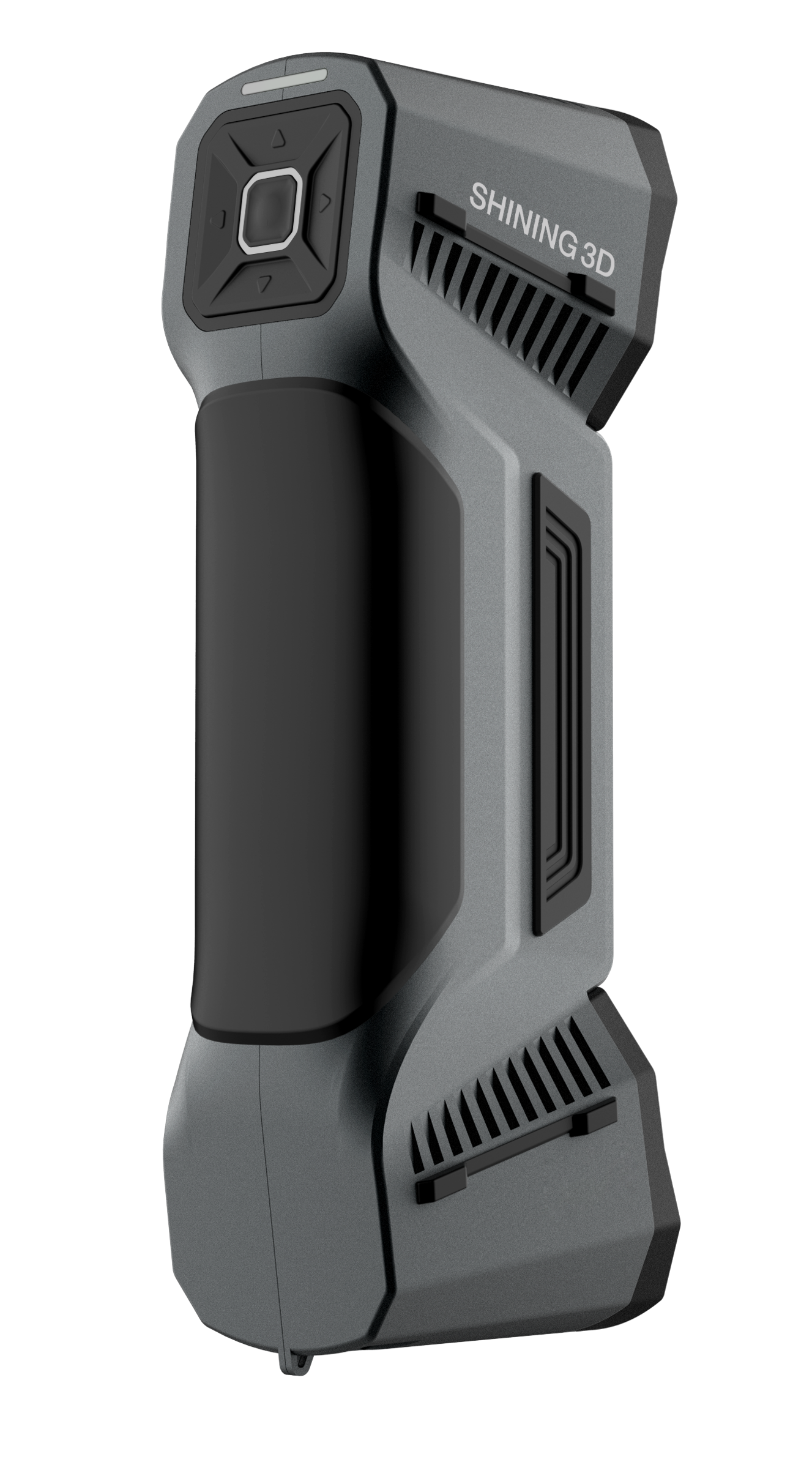

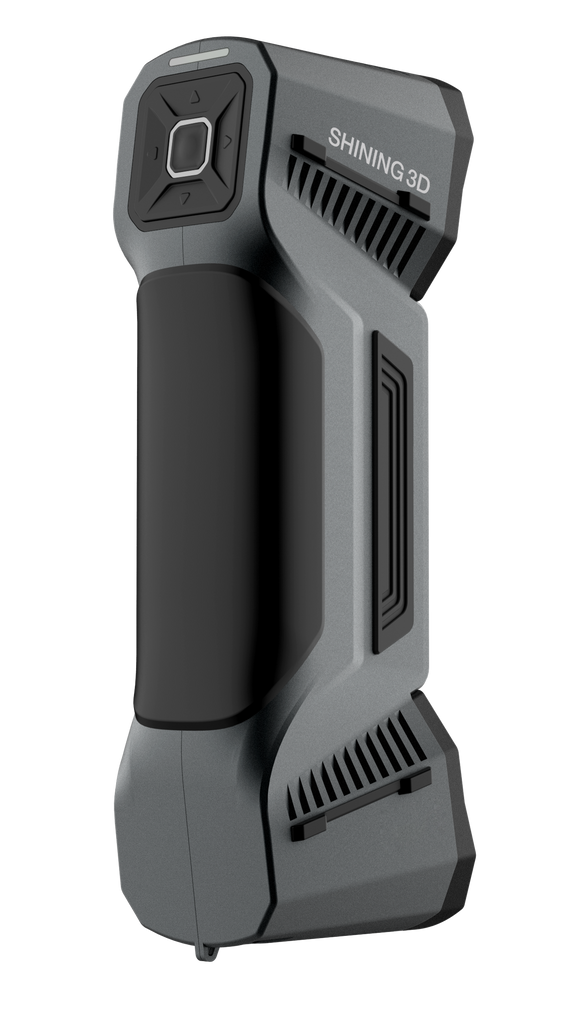

Hybrid Light Source and Multifunctional Handheld 3D Scanner
FreeScan Combo adopts metrology-grade accuracy, fine scanning and high precision from the FreeScan series, while providing an even lighter and more compact design. It features 26 + 7 + 1 blue laser lines and an infrared scanning mode.
Considering speed, versatility and accuracy, this high-performance 3D metrology solution can meet the needs of different scanning scenarios such as metrology-grade inspection, reverse engineering and further applications.
- Light Source Blue Laser + Infrared VCSEL
- Accuracy Up to 0.02 mm
- Weight 620g
- Compact Size 193mm x 63mm x53mm

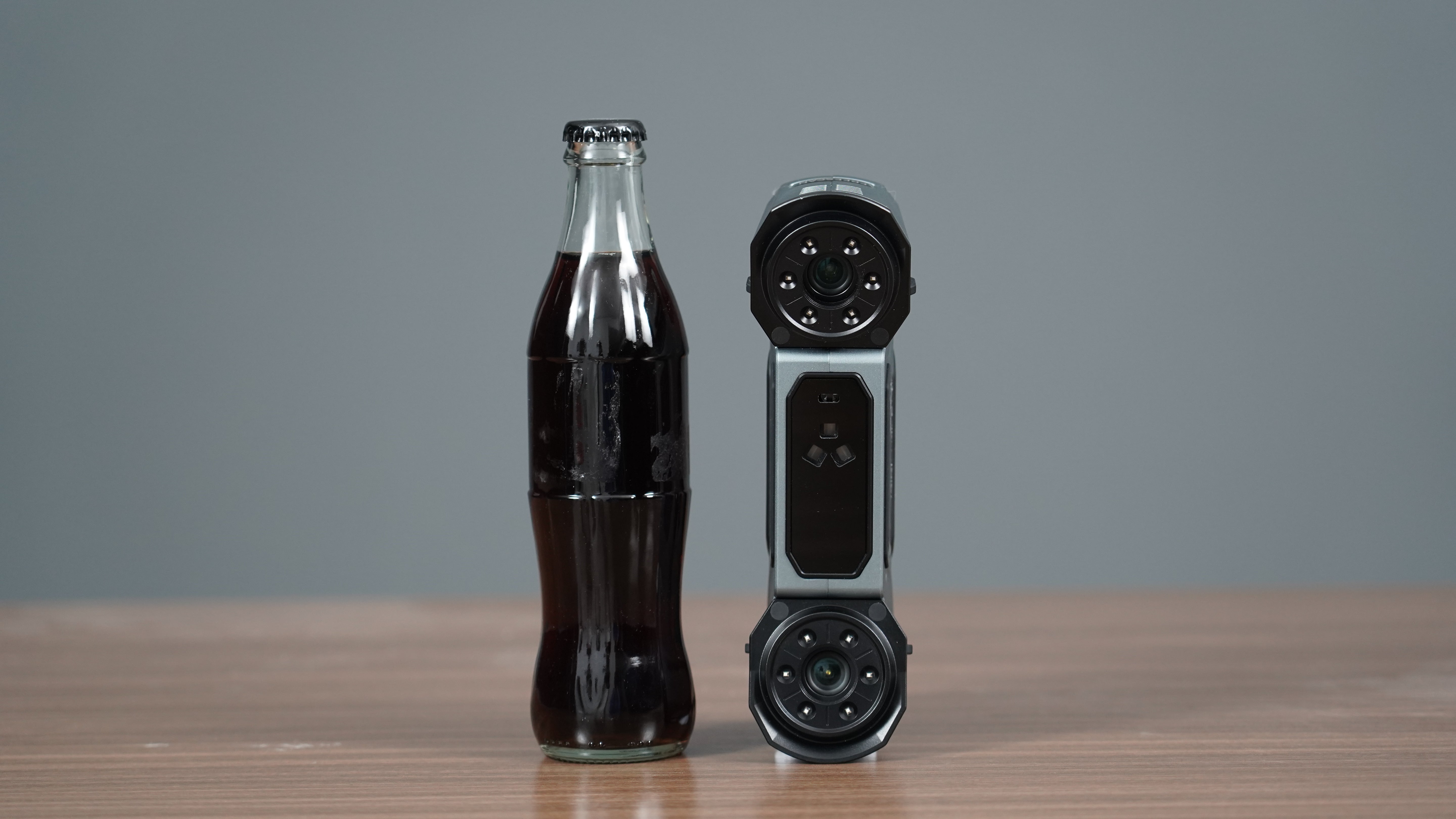

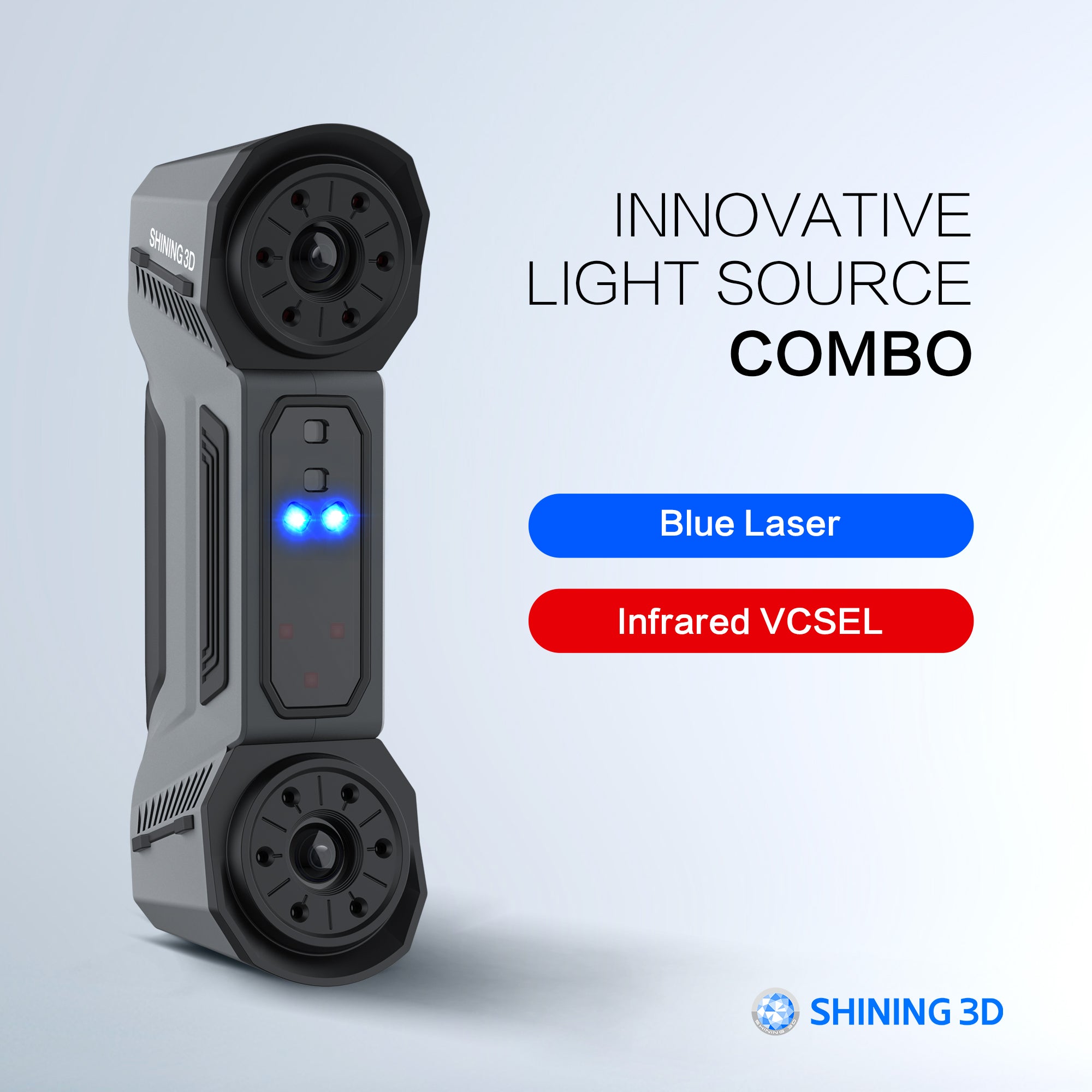

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.
Speed and high performance
The FreeScan Combo can achieve a scanning speed of 1,860,000 points per second using the laser scan mode and a speed of 2,250,000 points per second utilizing infrared mode. FreeScan Combo delivers high accuracy of 0,02 mm according to VDI-VDE 2634-2, while capturing a vast amount of data per second.
Scanning Modes
4 scanning modes, multiple scan choices- 13 cross blue laser lines for global smooth scanning;
- 7 parallel blue laser lines for fine scanning details;
- 1 single blue laser lines to obtain deep hole data;
- infrared light source and large FOV for more applications.
Applications
FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.
Specifications
