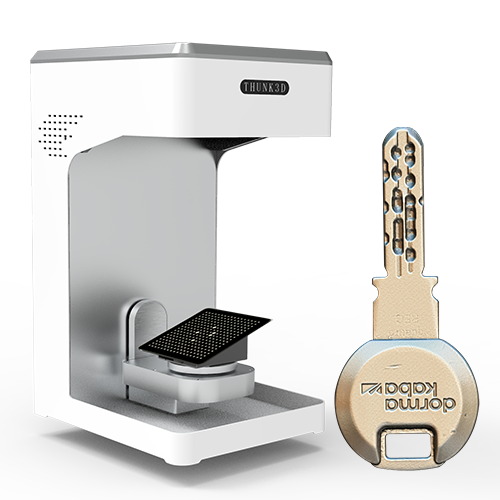

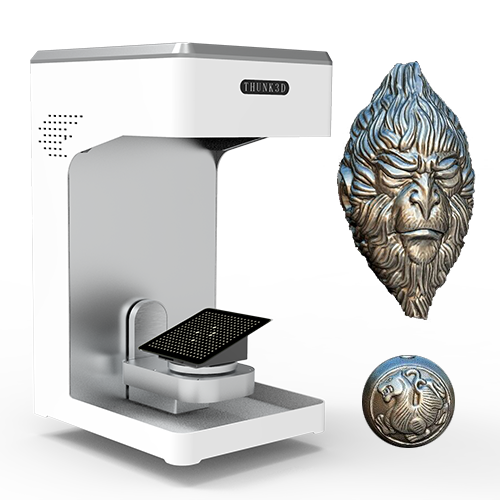

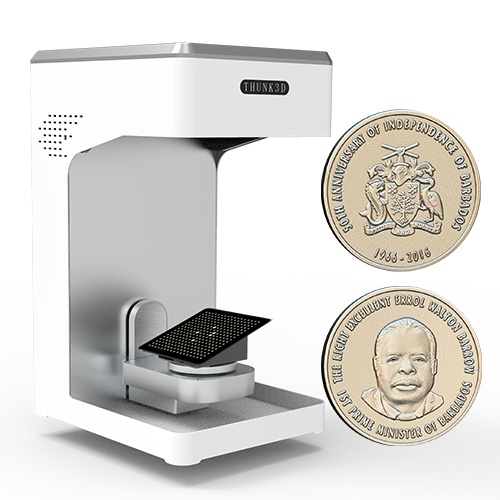

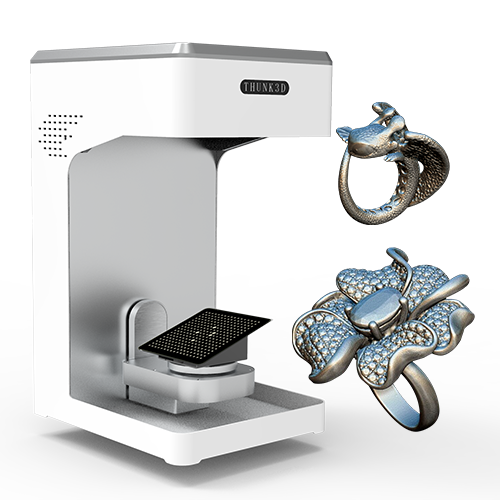

Jewelry 3D scanner is tailor-made for scanning 5mm-80mm sized small objects to get their 3D models, suchas jewelry, rings, gems, pendants, coin, miniature,watch part, small industrial parts etc, widely used forCAD/CNC/remodeling/digital archive/3D printing etc.
Extreme High Accuracy
0.01mm repeated precision owing to machining manufacturing, accuracy < 10 μ m. qualified with industry quality test & control.
High Expansibility
Sub-pixel level algorithm default as 0.008mm resolution, also adjustable up to 0.01mm upon practical application's requirement.
Hign Speed
Dual-axis turntable, effect 3D modeling in 1-2 mins. Support multiple piece scan and divided model scan.
High Compatibility
One key in Mesh Edit Software; Binary STL format, apply in CAD/Rhino3D/Zbrush/MAYA the third party software; Open API interface, support the secondary development
Jewelry 3D Scanner will save jewelry CAD designers and manufacturers at least 50% of their time for designing and producing very complex-shaped jewelry pieces.
Jewelry 3D Scanning
Manual measurement is no longer required. Using the highly advanced and fully automated DS3, the gem is scanned easily and quickly.
Jewelry Design
An enormous amount of time is saved for CAD designers using the precise 3D data of the gem. And STL format support all RP machine.
3D Printing & Perfect Fit
Quickly and precisely turn any jewelry items into CAD/ CAM data for modification, mold& tool making and 3D-printing in a cost-efficient way. Finally, the gem is perfectly placed into the designed piece of jewelry!


| Parameter | Details |
|---|---|
| Camera | Monochrome, 5MP |
| Raster | DLP 1280×1080 |
| Lens | 25mm lens |
| FOV (Field of View) | 80×60 mm |
| Resolution | 0.008 mm |
| Software | Free update, Scan // Wrap / After process |
| Accuracy | < 0.01 mm |
| Scan Volume | 5–80 mm |
| Data Format | ASC / STL |
| Divided Model Scan | Yes |
| Suggested PC | Intel CPU + Nvidia as main GPU + Windows 10/11 |
| Certification | CE / FCC / WEEE |
| Public API | C++ interface |
| Shipping Info | 11.65 kg / 50 cm × 35 cm × 28 cm |
| Packing List | Scanner, cables, U-disk, adaptor, calibration plate, clip |
| Value-add | Free Mesh Edit Software, open API interface |
