Slice Engineering Copperhead Heat Break - Different Variants

$54.99
Size:
Rep rap 1.75mm

Product variant with selected options does not exist!
View all options as a list
Only 2 left - in stock and ready for shipping
Ships from Canada Technical support available Pickup or delivery options
SKU: SEN-CPR-HTBRK-REPRAP

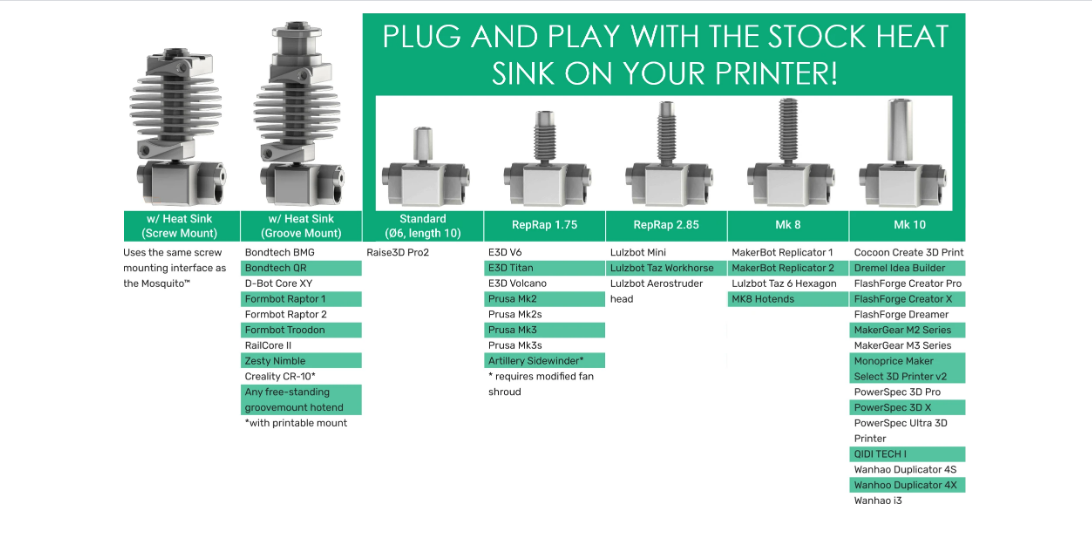

Copperhead™ Heat Breaks come in multiple variants to adapt to numerous 3D printers. Use the 3D Printer Compatibility Chart below to determine which Bimetallic Heat Break™ is best suited for your application.


NOTE: Only the Standard Variant fits the Copperhead™ Heat Sink

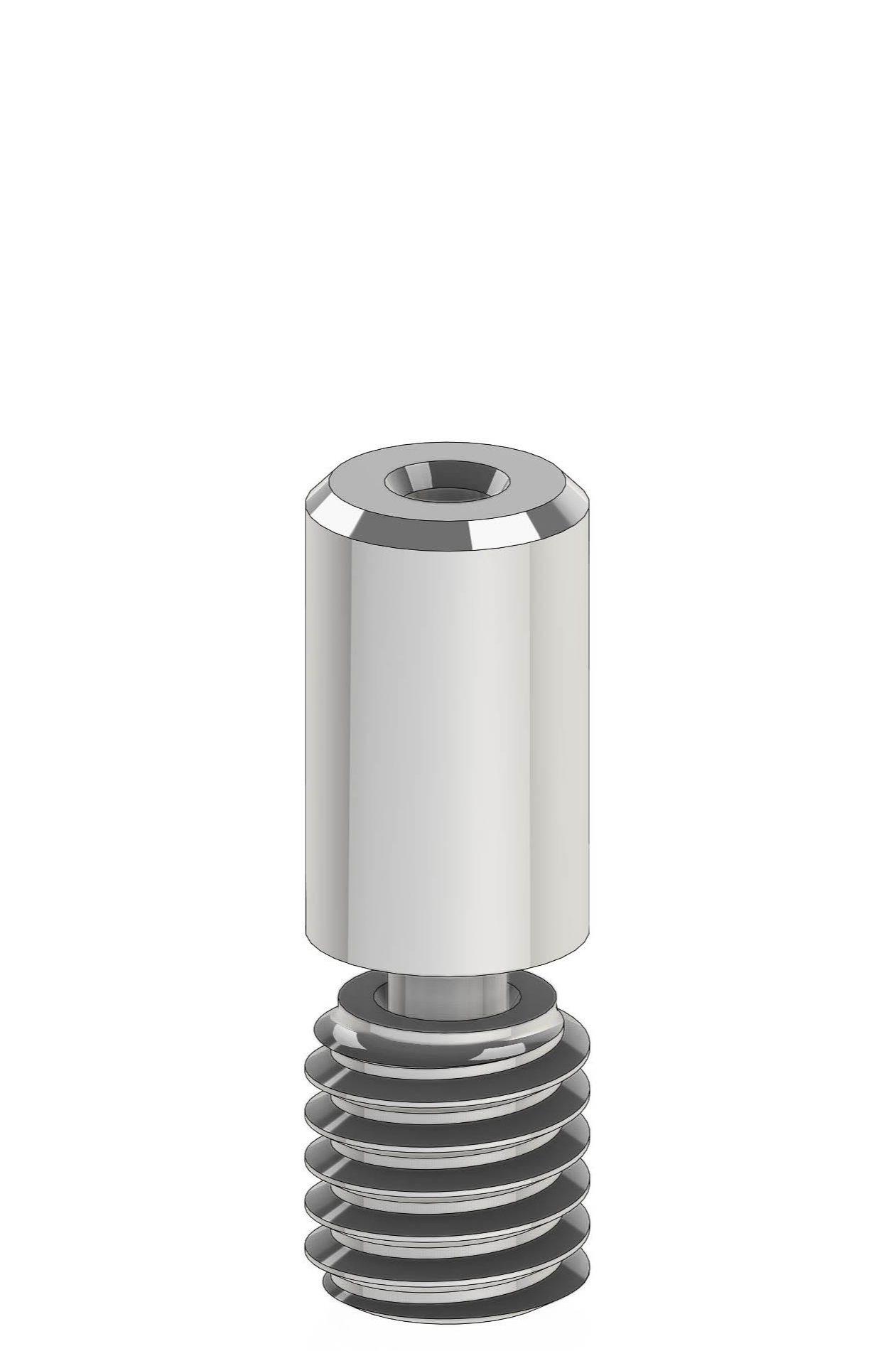

Standard G2 Variant - fits Copperhead™ Heat Sink & Raise3D Pro2

Definition: M6 threaded distal end, 6 mm smooth proximal end

Size: 18 mm length x 6 mm diameter
Weight: 3.3 g

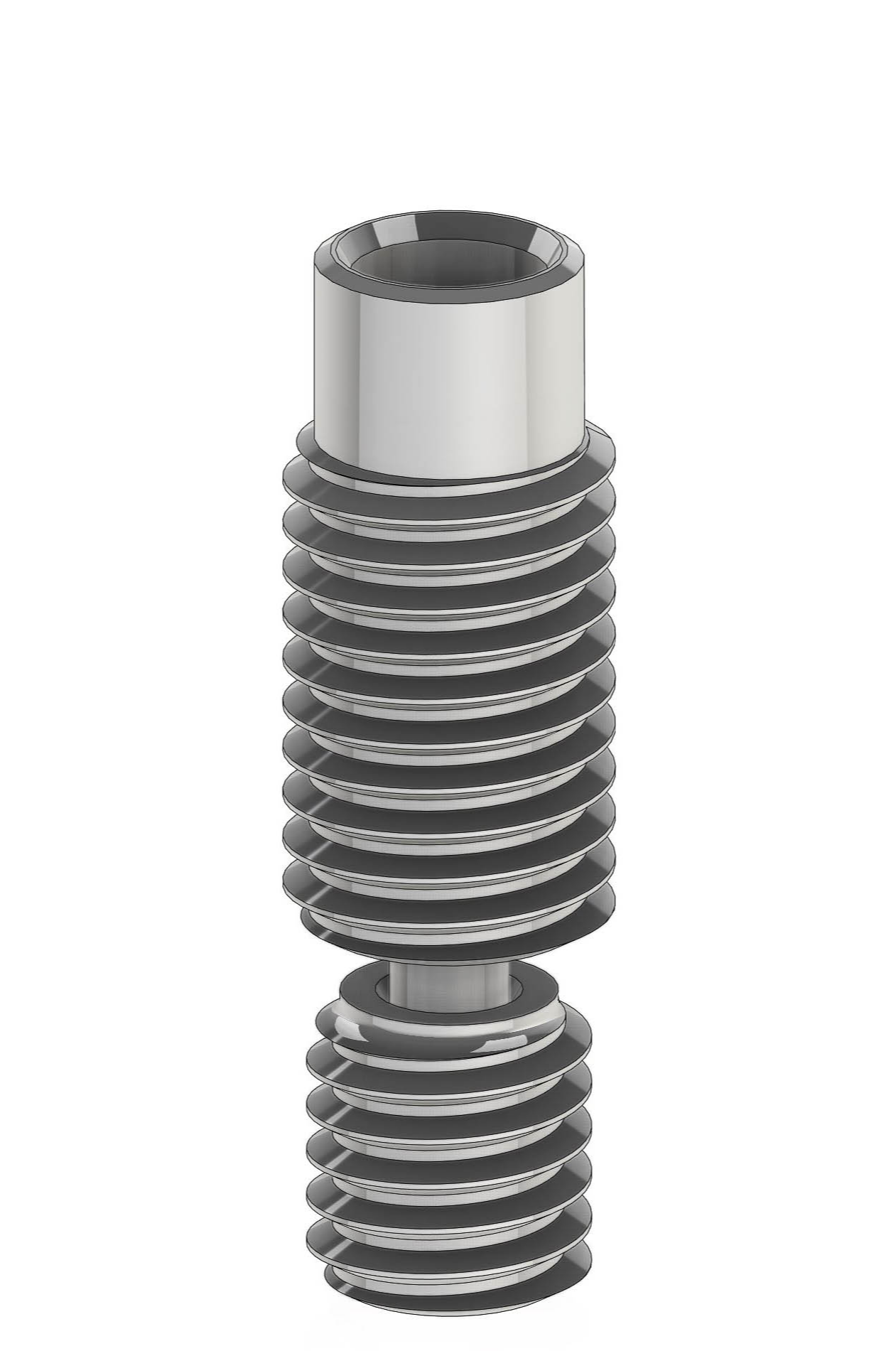

RepRap 1.75 Variant - fits E3D V6, Prusa 3D printers & more

Definition: M6 threaded distal end, M7 threaded proximal end

Size: 23 mm length x 7 mm OD
Weight: 4.2 g

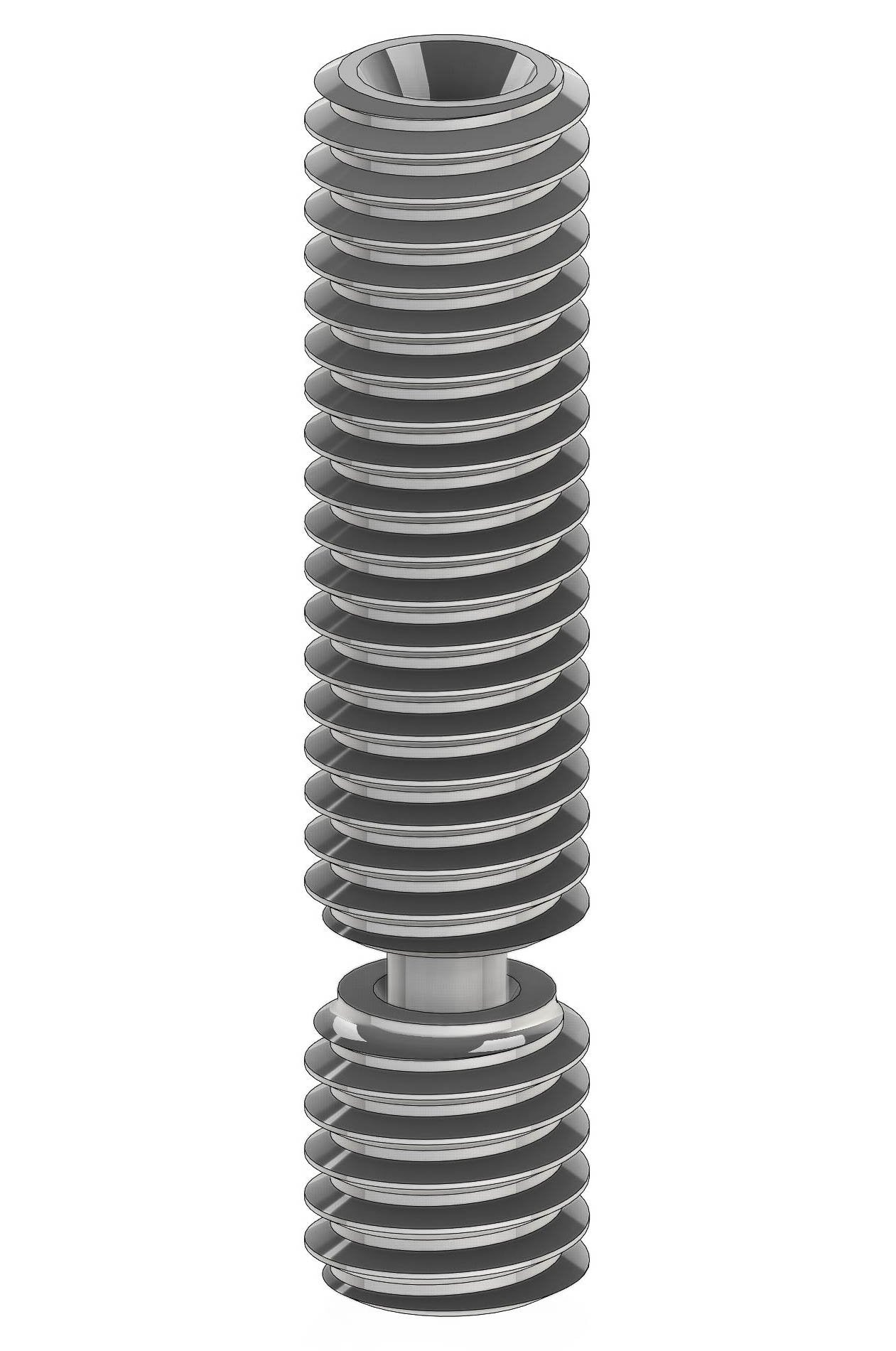

Mk 8 Variant - fits Makerbot Replicator & more

Definition: M6 threaded distal end, M6 threaded proximal end

Size: 27 mm length x 6 mm OD
Weight: 4.3 g

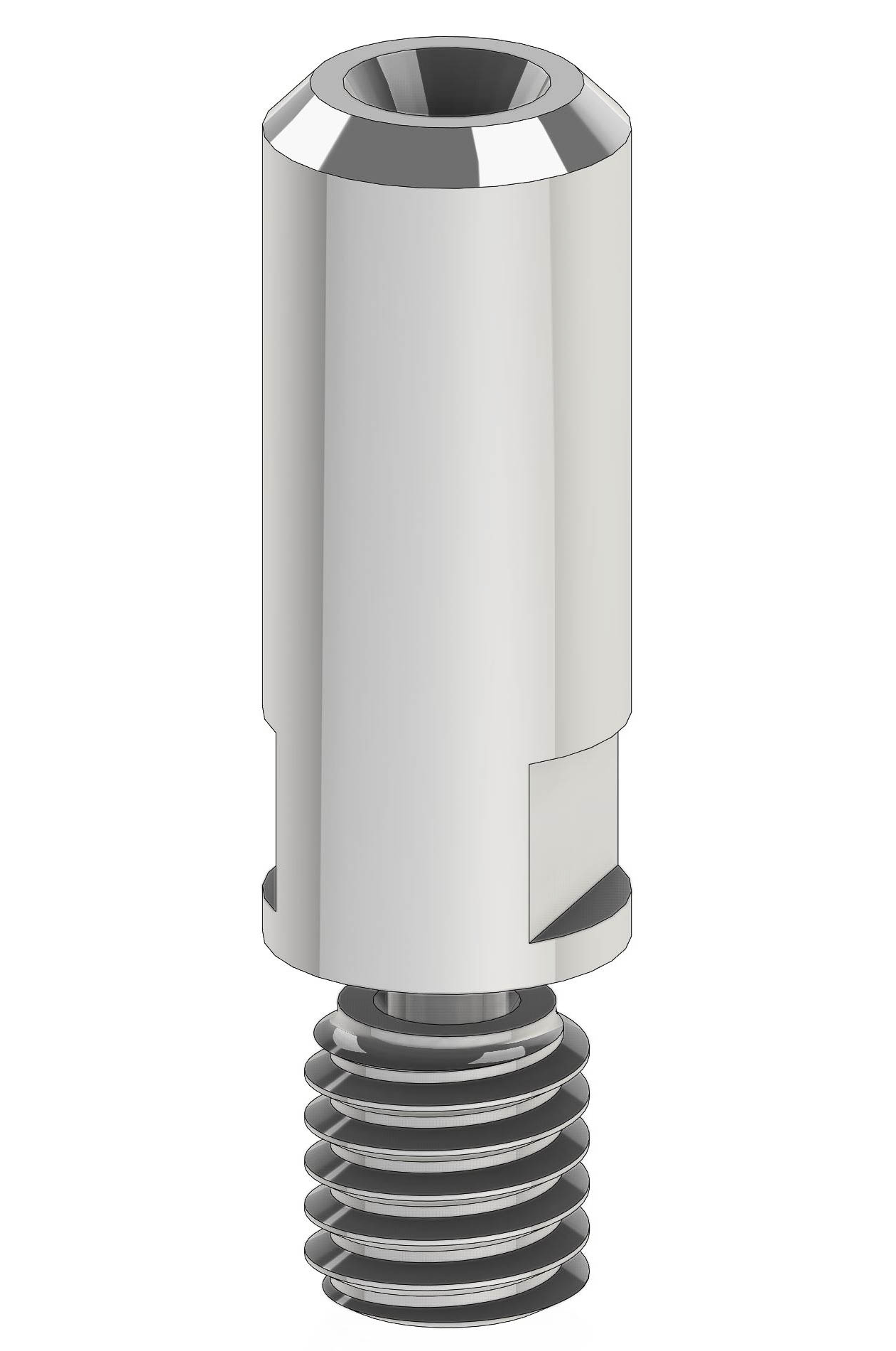

Mk 10 Variant - fits MakerGear printers & more

Definition: M6 threaded distal end, 7.78 mm shank with flats on proximal end

Size: 27 mm x 7.78 mm OD
Weight: 8.1 g
